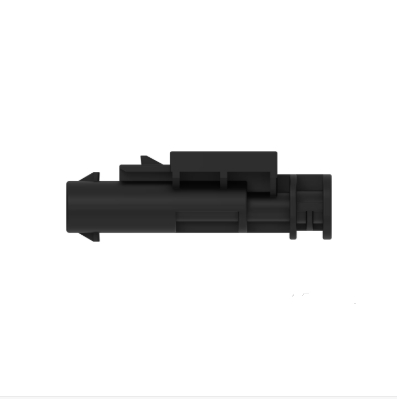

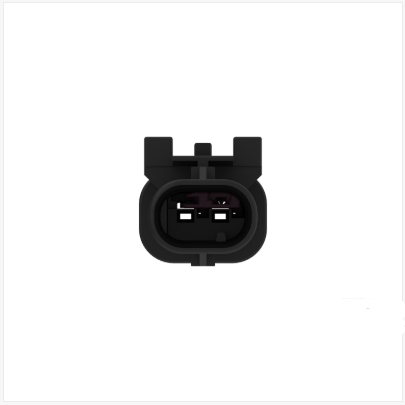

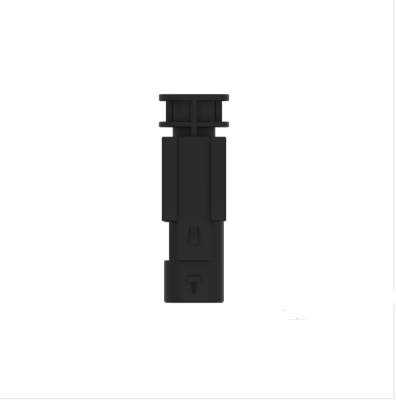

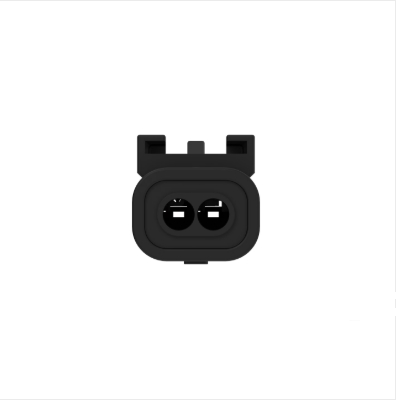

1-1703498-1MCON 48V Ready 1.2mm Sealed Connectors 2 Position Housing TE

Short Description:

2 Position Housing
Housing for Male Terminals
Wire-to-Wire
4 mm [.15 in] Centerline
Sealable
Black
Wire & Cable
Power
MCON 1.2mm

Send email to us

Product Detail

Product Tags

The ‌1-1703498-1‌ is a high-reliability connector housing from TE Connectivity's MCON Interconnection System, Configuration‌: 2-position male housing with 4 mm (0.157 in) centerline spacing, optimized for 1.2 mm male terminals.Environmental Durability‌: Sealable construction rated for -40°C to +130°C operation, providing resistance against moisture, dust, fuels, and oils.Materials‌: Black PBT GF (glass-fiber reinforced polymer) housing for enhanced mechanical strength and chemical resistance.Electrical Performance‌: Supports 14 VDC operating voltage and 25A maximum current, designed for 12V nominal automotive architectures.Termination & Installation‌: Wire-to-wire crimp interface with keyed alignment for error-proof mating; cable-mount (free-hanging) design simplifies assembly.

Data Overview

Connector & Housing Type	Housing for Male Terminals
Number of Positions	2
Sealable	Yes
Operating Temperature Range	-40 – 125 °C [ -40 – 257 °F ]
Number of Rows	1

Contact Features

Connector Shape	Rectangular
Mixed & Hybrid Connector	No
Primary Locking Feature	Locking Lance
Connector System	Wire-to-Wire
Connector & Contact Terminates To	Wire & Cable
