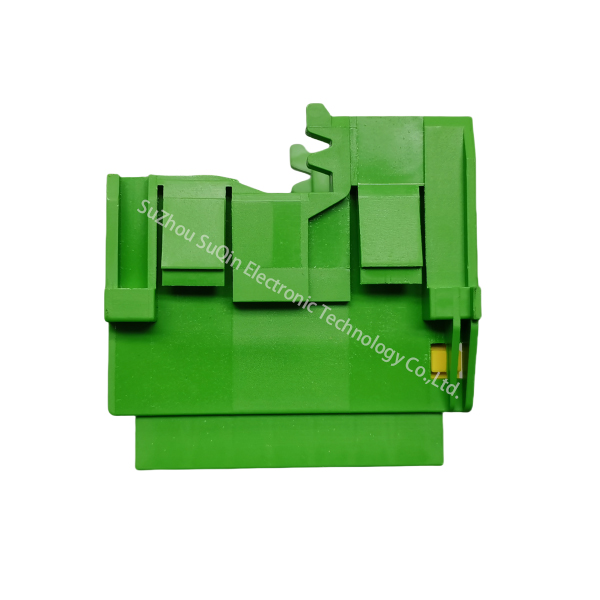

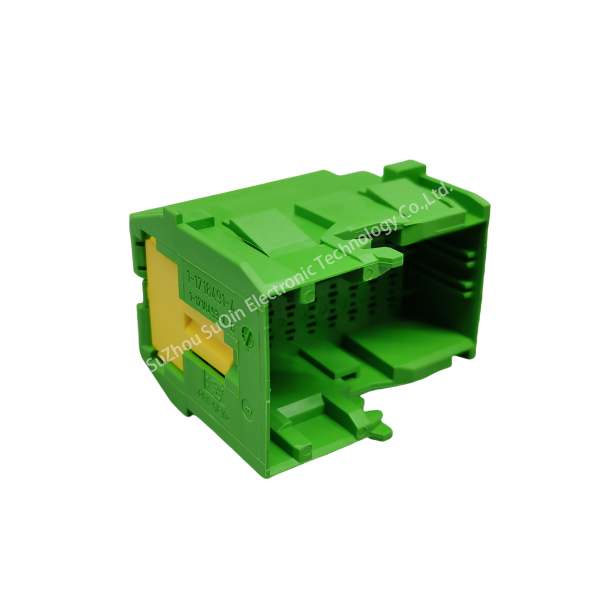

1-1718491-4:Housing for Male Terminals, Wire-to-Wire, 25 Position, .157 in / .197 in [4 mm / 5 mm] Centerline, Green, Signal, AMP MCP Connector System
Short Description:
25 Position Housing
Housing for Male Terminals
Wire-to-Wire
4 mm / 5 mm [.157 in / .197 in] Centerline
Green
AMP MCP Connector System
Product Detail
VIDEO
Product Tags
TE Connectivity 1-1718491-4 AMP MCP Connector Housing
Key Specifications
Position Count：25 positions (1-2 rows)
Centerline Spacing：4 mm / 5 mm (0.157 in / 0.197 in)
Terminal Compatibility：Male terminals (1.6 mm / 2.8 mm tab width)
Current Rating (Max)：10 A (1.6 mm), 30 A (2.8 mm)
Voltage Rating ：36 VDC (nominal 12 V / 24 V architectures)
Wire Range：Supports wire-to-wire connections
Housing Material：PBT GF10 thermoplastic (green)
Temperature Range：-40°C to +120°C operational
Locking Mechanism：Keyed alignment with audible mating
Sealing：Non-sealable design
Data Overview
| Connector & Housing Type | Housing for Male Terminals |
| Number of Positions | 25 |
| Sealable | No |
| Operating Temperature Range | -40 – 120 °C [ -40 – 248 °F ] |
| Number of Rows | 1 | 2 |
Contact Features
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | Yes |
| Primary Locking Feature | On the Terminal |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
Category: Automotive Connectors
Manufacturer:TE
Termination: Crimp
Availability:5000 in Stock
Min. Order Qty:1000
Standard Lead Time When No Stock: 3-5Working Days
