1-2141857-1 Tab Terminal TH/.025 CONNECTOR SYSTEM TE
Short Description:
Tab Terminal
22 – 20 AWG
.37 – .56 mm² Wire
.64 mm [.025 in] Tab Width
Tin (Sn)
64 mm [.025 in] Tab Thickness
TH/.025 Connector System
Product Detail
Product Tags
Ultra-flat male blade terminal for low-profile signal/power connections in microelectronics, supporting 23–22 AWG wire (0.25–0.35mm²), tin-plated for oxidation resistance, rated for 60V and -40°C to +125°C. Tool-free insertion into TH/.025 connector housings enables rapid assembly in wearables, IoT sensors, or medical devices, with 250+ mating cycles and compliance to RoHS/REACH.
Data Overview
| Terminal Type |
Tab |
| Wire Size (AWG) |
22 – 20 |
| Wire Size (mm²) |
.37 – .56 |
| Mating Tab Width | .64 mm [ .025 in ] |
| Interface Plating |
Tin (Sn) |
Contact Features
| Receptacle Style |
180° |
| Primary Locking Feature |
Locking Lance |
| Contact Fabrication |
Stamped & Formed |
| Crimp Type |
F-Crimp |
| Typical Current Rating (A) | 5 |
| Terminal Type |
Tab |
| Termination Method to Wire & Cable |
Crimp |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

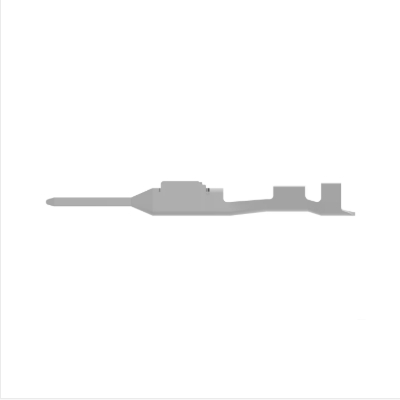

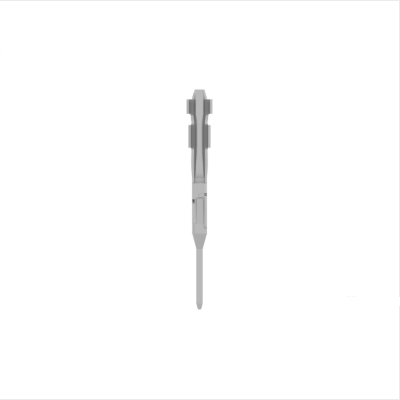

Product Display
