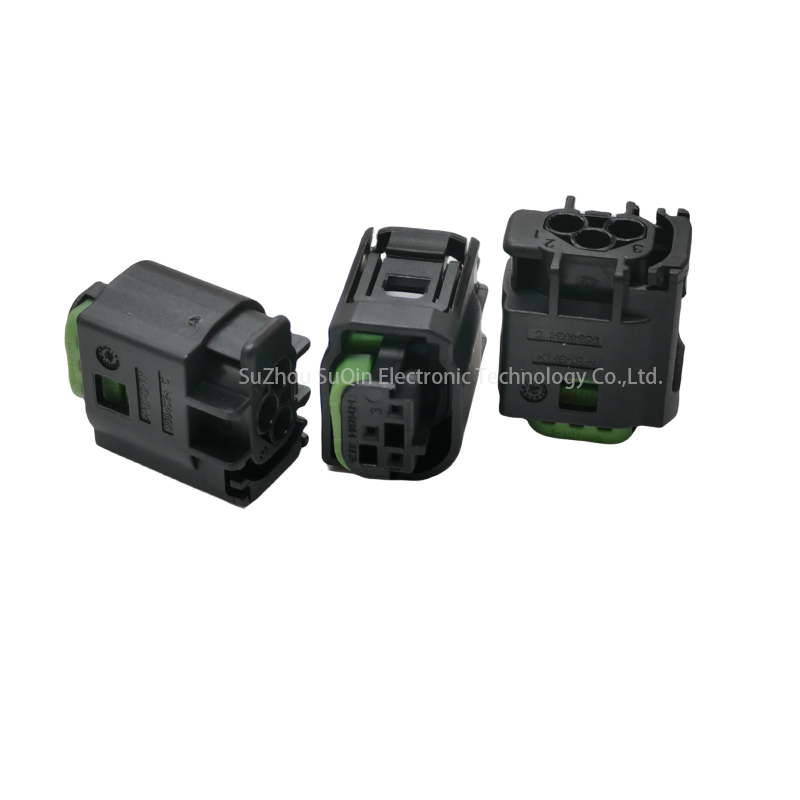

1-967642-1:3 Pin Rectangular Connector Housings
Short Description:
Category: Rectangular Connectors
Manufacturer: TE Connectivity
Connector Type：Receptacle
Contact Type：Female Socket
Availability: 3800 in Stock
Min. Order Qty: 5
Standard Lead Time When No Stock: 2-4Weeks
Product Detail
VIDEO
Product Tags
Please contact me via My Email at first.
Or you can type the information below and click Send,I will receive it through the Email.
Description
Housing for Female Terminals, Wire-to-Wire, 3 Position, .244 in [6.2 mm] Centerline, Sealable, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Tech Specifications
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Pitch | 6.2 mm [ .244 in ] |
| Connector System | Wire-to-Wire |
| Cable Exit Angle | 180° |
| Operating Temperature | -40°C ~ 120°C |
