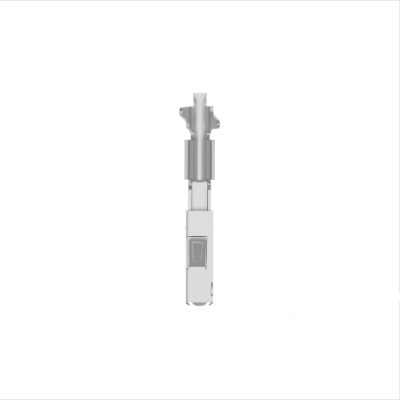

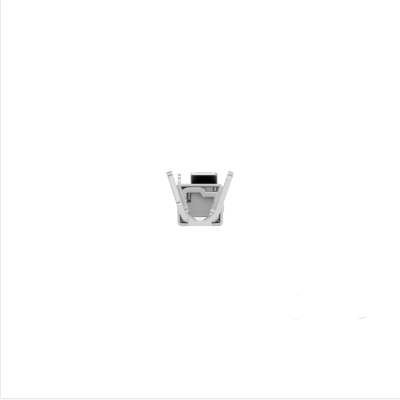

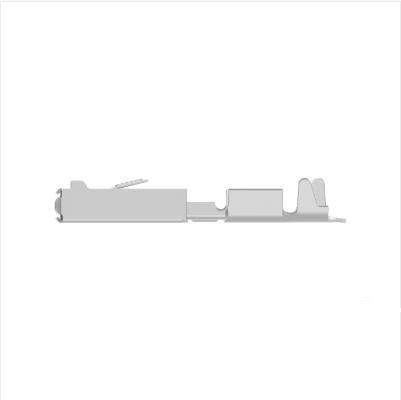

1411576-1 Receptacle Terminal Automotive Terminals TE Connectivity
Short Description:
Receptacle Terminal, 22 – 20 AWG, .3 – .5 mm² Wire, .64 mm [.025 in] Tab Width, Tin (Sn), .64 mm [.025 in] Tab Thickness, Terminates To Wire
Product Detail
Product Tags
High-current brass/copper alloy terminal with tin-plated contacts, rated for 20A/60V, designed for automotive wiring harnesses, ECUs, or sensor connections, featuring secure crimp/snap-fit retention, vibration resistance, and compliance with USCAR-2, ISO 8092, and RoHS/REACH standards.
Data Overview
Terminal Type
|
Receptacle
|
Wire Size (AWG)
|
22 – 20
|
Wire Size (mm²)
|
.3 – .5
|
Mating Tab Width
|
.64 mm [ .025 in ]
|
Interface Plating
|
Tin (Sn)
|
Contact Features
Contact Fabrication
|
Stamped & Formed
|
Crimp Type
|
F-Crimp
|
Insulation Option
|
Uninsulated
|
Operating Temperature (Max) (°C)
|
80, 85, 90, 100, 105, 110, 120
|
Operating Temperature (Max) (°F)
|
212
|
Operating Temperature Range
|
-40 – 120 °C [ -40 – 248 °F ]
|
Compatible With Wire Base Material
|
Copper
|
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
