1456968-4Automotive Terminals/Receptacle Terminal TE
Short Description:
Receptacle Terminal
18 AWG
.75 mm² Wire
.8 mm [.031 in] Tab Width
Silver (Ag)
Sealable
Generation Y Connector System
Product Detail
Product Tags
The 1456968-4 is a female crimp receptacle terminal designed for automotive wire-to-connector applications。
Key Specifications
Terminal Type：Female receptacle (180° orientation)
Tab Thickness：0.64mm (0.025")
Contact Plating：Silver (Ag) on mating surface
Termination Plating：Tin (Sn) on crimp zone
Current Rating：8A max (operational)
Wire Range：22–20 AWG (0.35–0.5mm²)
Sealing Type：Series seal compatible
Temperature Range：-40°C to +150°C
Locking Feature：No-Crimp-Zone (NCZ) body design
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 18 |
| Wire Size (mm²) | .75 |
| Mating Tab Width | .8 mm [ .031 in ] |
| Interface Plating | Silver (Ag) |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | .64mm |
| Crimp Type | F-Crimp |
| Mating Tab Thickness | .64 mm [ .025 in ] |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

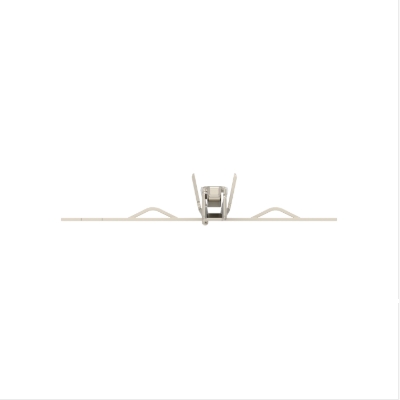

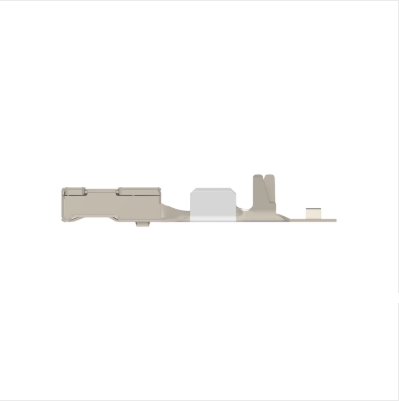

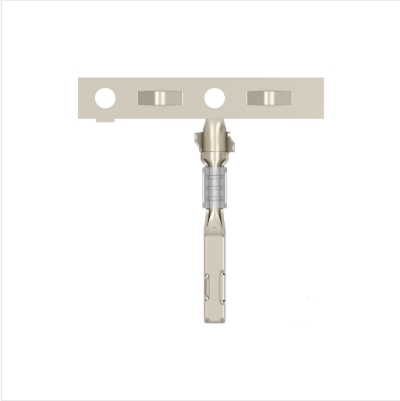

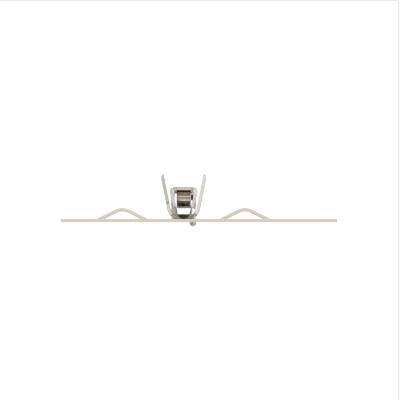

Product Display
