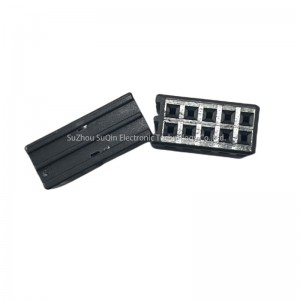

1534125-1 10 pin female TYCO engine harness auto connector
Short Description:
Model：TE
Brand：1534125-1
Body color: Black
Product category: Automotive connector sheath
Number of rows: 2
Circuit application: Signal
Number of circuits: 10
Product Detail
VIDEO
Product Tags
Product : TE Connectivity 1534125-1
Category: Engine Harness Connector |
Type: Wire-to-Board
PositionCount：10-Pin，Dual-row configuration
Pitch：2.5 mm (0.098 in) centerline
Terminal Type：Female (Socket)
Voltage Rating ：12 VDC
Current Rating ：N/A (refer to terminal spec)
Temperature Range：-40°C to +80°C
Housing Material：Black PBT (Polybutylene Terephthalate) Flame-retardant, UV-resistant
Locking Mechanism：Terminal lock
Row Configuration：2 Rows × 5 Pins
Row Spacing：4.24 mm Optimized for harness routing
Mounting Style：Straight，Standard PCB or panel mount
Weight：1 g Lightweight
RoHS Compliance：Yes Eco-friendly
Data Overview
| Connector & Housing Type | Housing for Female Terminals |
| Number of Positions | 10 |
| Sealable | No |
| Operating Temperature Range | -40 – 120 °C [ -40 – 248 °F ] |
| Number of Rows | 2 |
Contact Features
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | On the Terminal |
| Connector System | Wire-to-Board |
| Connector & Contact Terminates To | Wire & Cable |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

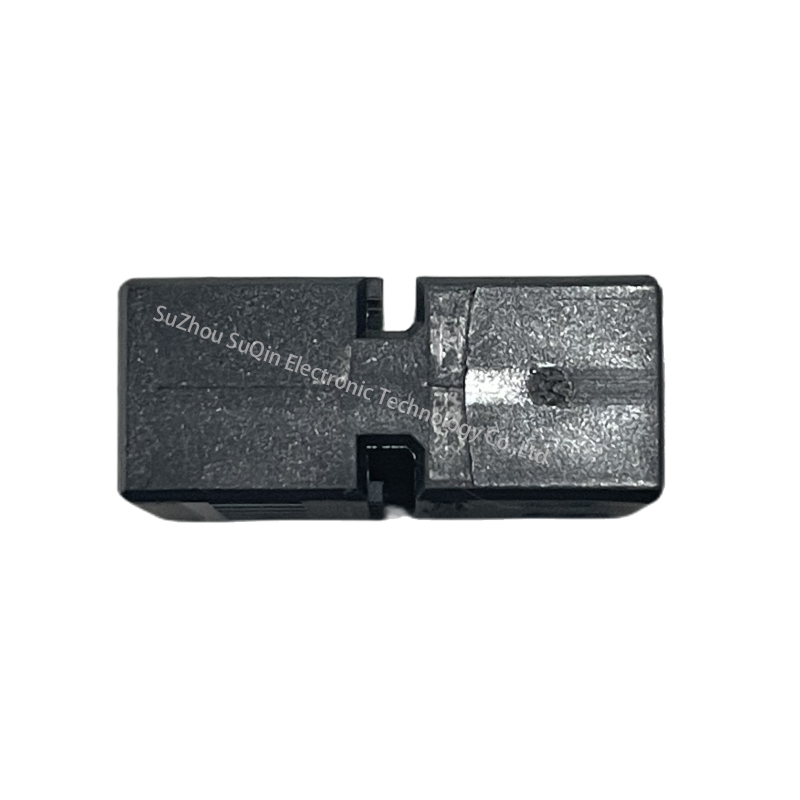

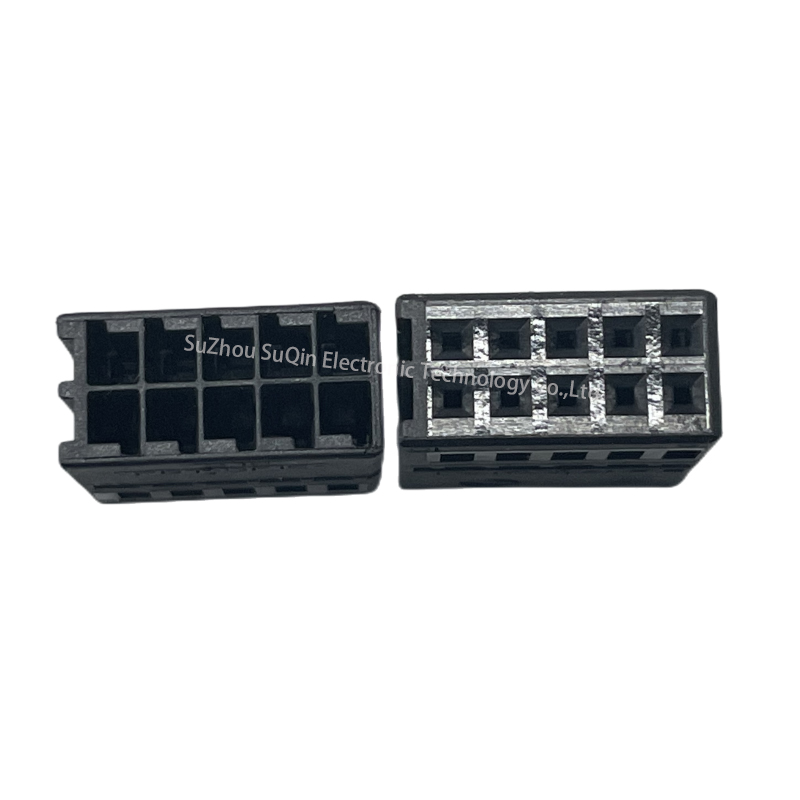

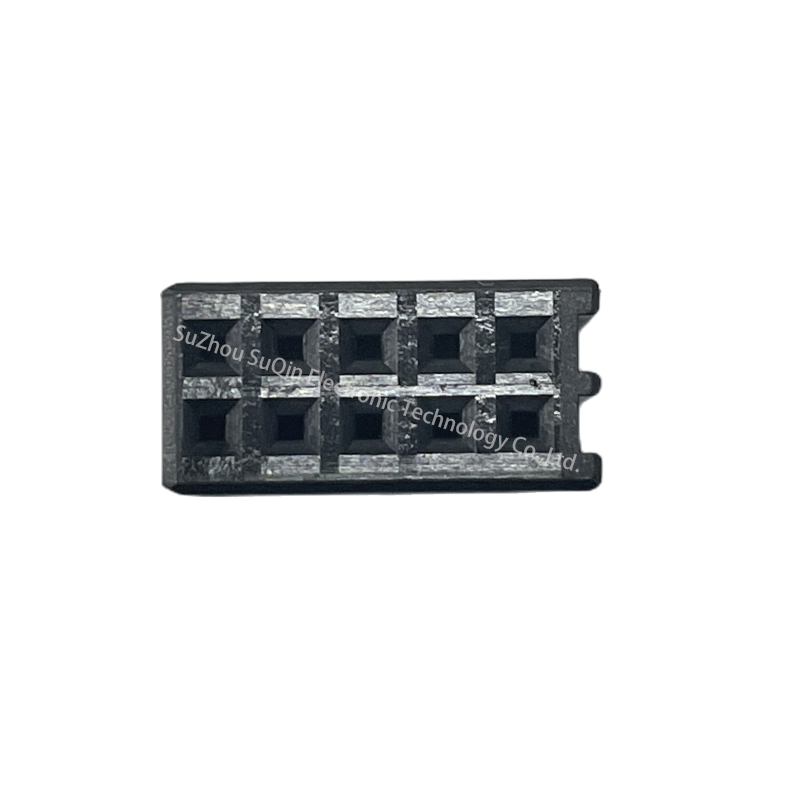

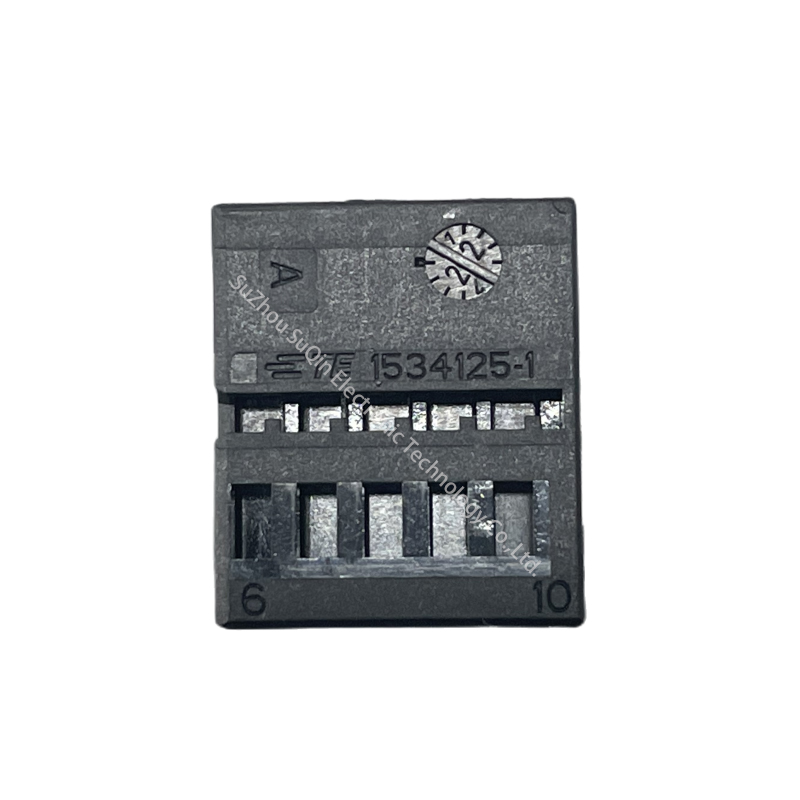

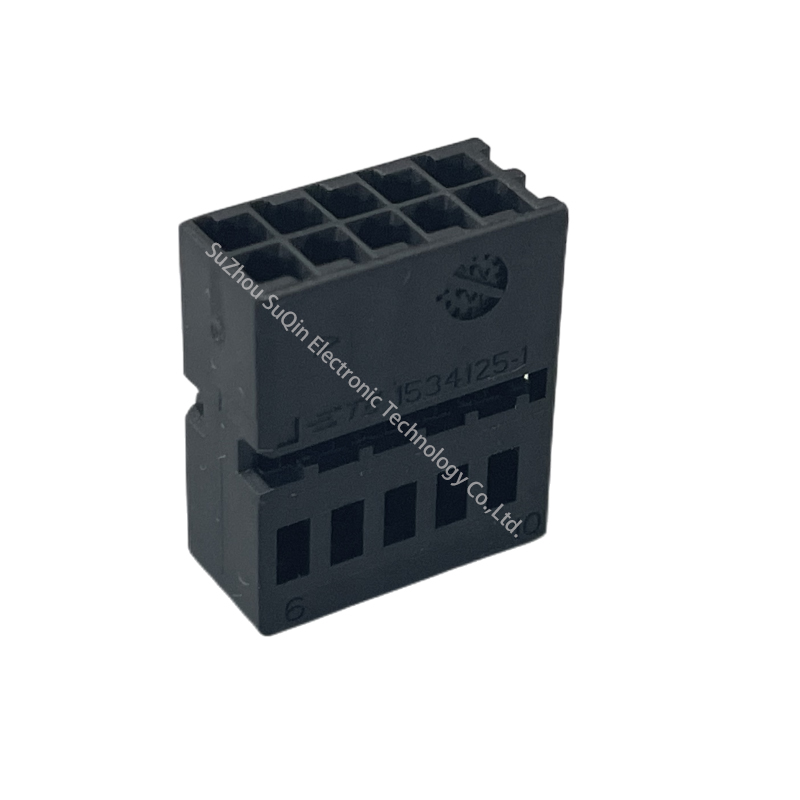

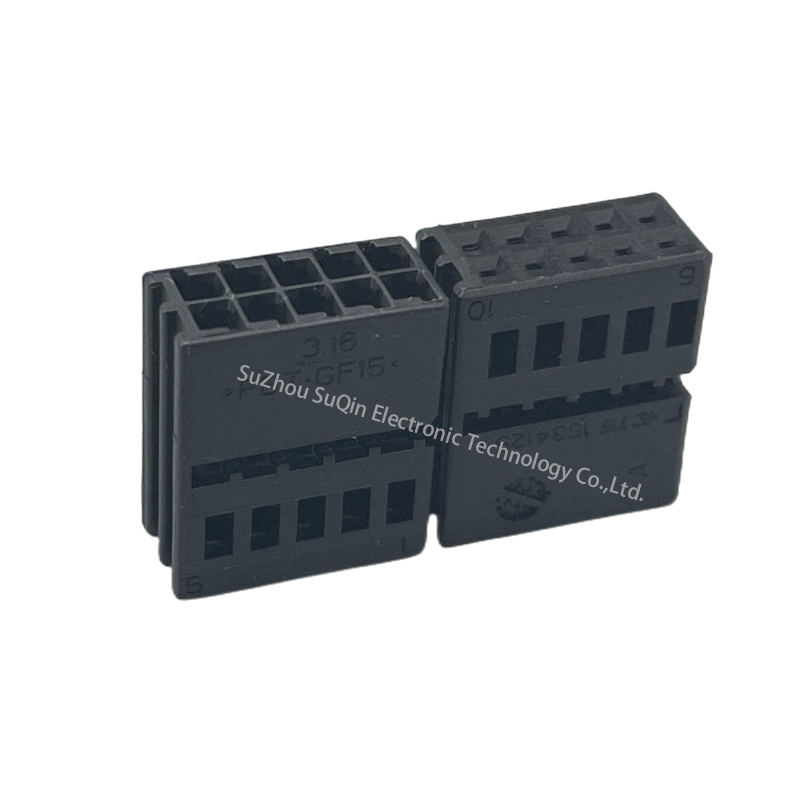

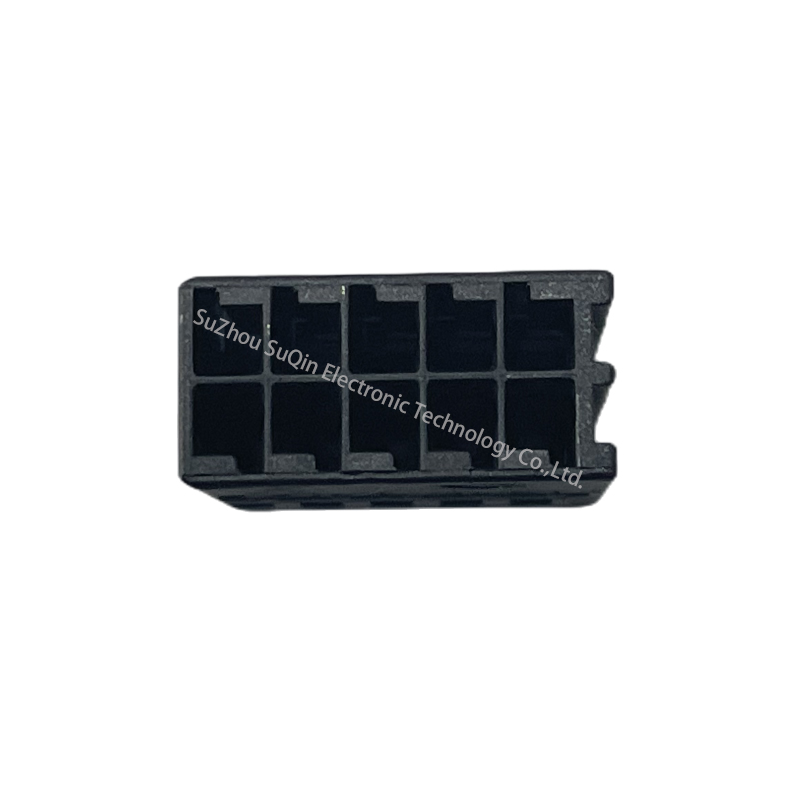

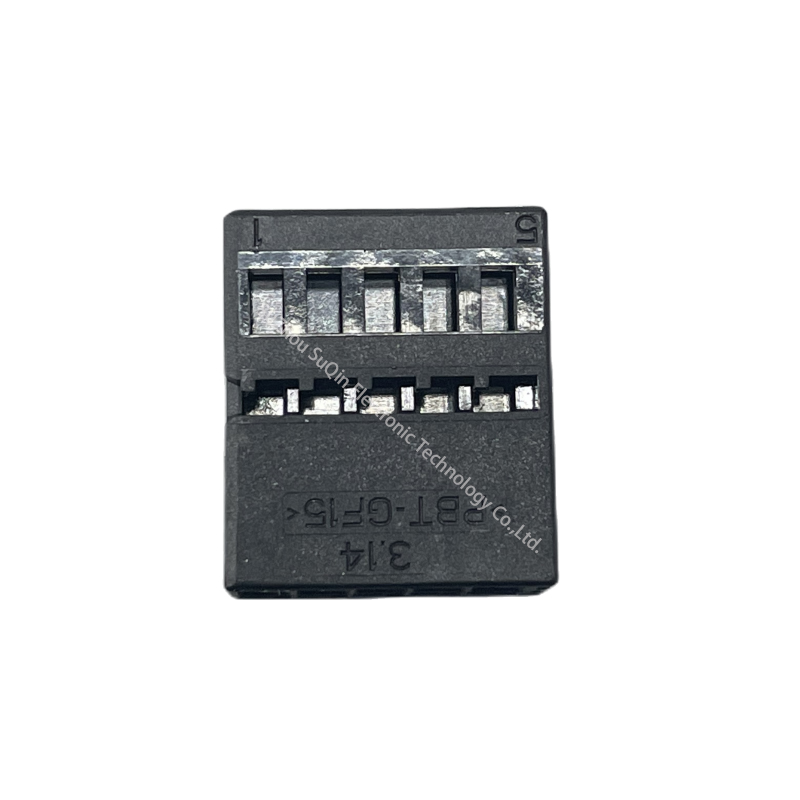

Product Display
