1564724-3Automotive Parts Receptacle Terminal TE
Short Description:
Receptacle Terminal
22 – 20 AWG
.35 – .5 mm² Wire
1.5 mm [.059 in] Tab Width
Silver (Ag)
Sensor Flat Contact System
Product Detail
Product Tags
The 1564724-3 is a receptacle (female) electrical terminal designed specifically for use in automotive wiring harnesses and connectors. Its primary function is to securely mate with a corresponding male pin terminal, creating a reliable electrical connection within automotive electrical systems.Used extensively within automotive connectors for components like sensors, ECUs (Engine Control Units), lighting, infotainment systems, switches, and various other in-vehicle electrical devices requiring removable connections.
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 22 – 20 |
| Wire Size (mm²) | .35 – .5 |
| Mating Tab Width | 1.5 mm [ .059 in ] |
| Interface Plating | Silver (Ag) |
Contact Features
| Wire Contact Termination Area Plating Material | Silver |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.5mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 10 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

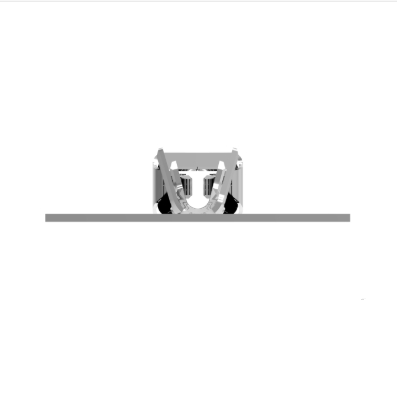

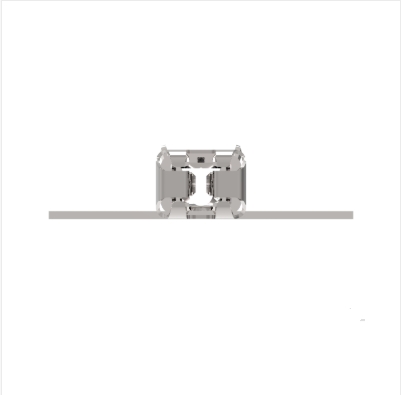

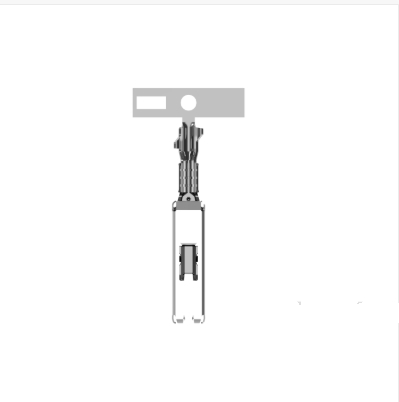

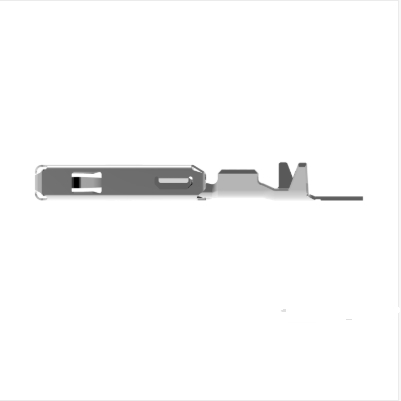

Product Display
