1565089-1Connector Hardware Double Lock Plate TE
Short Description:
Double Lock Plate
Natural
Nylon 6/6 GF20
2 Position
GRACE INERTIA 3.5
Product Detail
Product Tags
The TE Connectivity 1565089-1 is an engineered secondary locking plate designed to prevent terminal back-out in high-vibration environments, ensuring uninterrupted signal/power transmission in mission-critical applications.
Material: Zinc-nickel alloy plating over steel base for corrosion resistance (ISO 9227 certified)
Mechanical Strength:Withstands ≥100 N terminal retention force
Operating temperature: -40°C to +105°C
Design Optimization:
Tool-less snap-on installation reduces assembly time by 40%，
Color-coded (black) for visual verification of engagement
Polarized slots prevent misalignment during mounting
Compatibility:
Designed for 1.27mm–2.54mm pitch connectors
Validated for use with TE HDC headers (e.g., 5-1775041-9 series)
Data Overview
| Hardware Accessory Function | Latching, Locking & Retention |
| Connector Hardware Accessory Type | Double Lock Plate |
| Primary Product Color | Natural |
| Primary Product Material | Nylon 6/6 GF20 |
| Number of Positions | 2 |
Contact Features
| Centerline (Pitch) | 3.5 mm [ .138 in ] |
| Operating Temperature (Max) | 105 °C [ 221 °F ] |
| Operating Temperature Range | -30 – 105 °C [ -22 – 221 °F ] |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| UL Flammability Rating | UL 94V-0 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

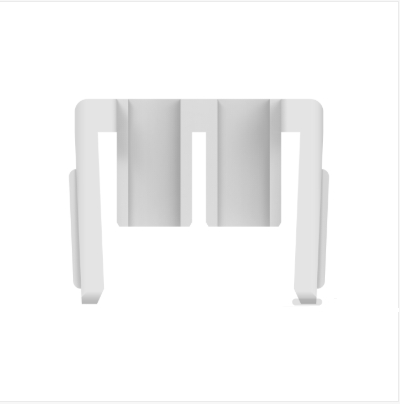

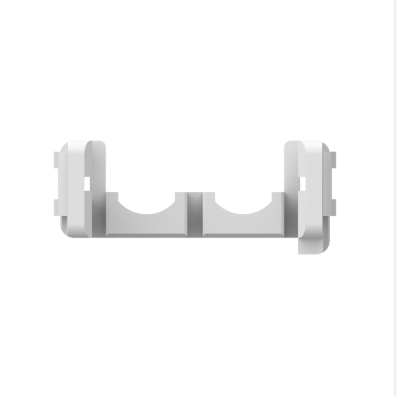

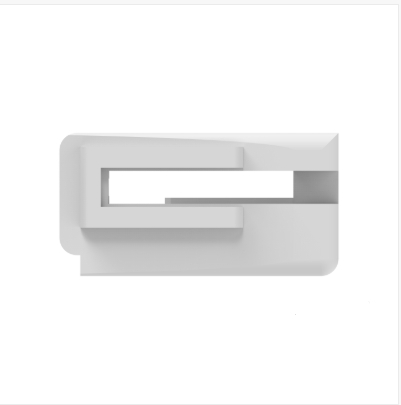

Product Display
