170324-1TE Connectivity / AMP/Quick Disconnect Receptacle
Short Description:
Quick Disconnect Receptacle
Uninsulated
24 – 20 AWG
.2 – .51 mm² Wire, 4.75 mm [.187 in] Tab Width
F-Crimp
Straight
Brass
Positive Lock 187
Product Detail
Product Tags

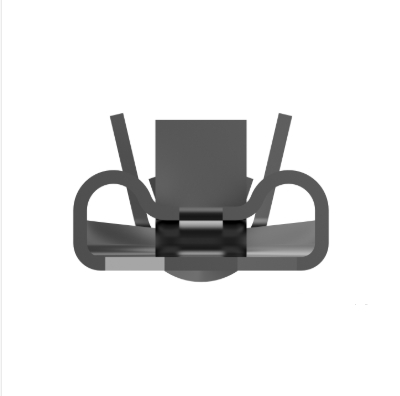

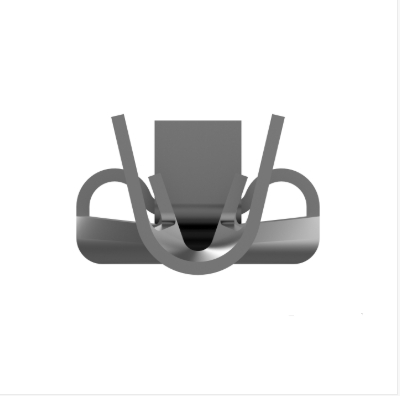

TE Connectivity 170324-1 AMP Quick-Disconnect Receptacle
Product Type:Female quick-disconnect receptacle with crimp termination
Tab Compatibility:4.75 mm (0.187-inch) male tabs
Wire Gauge:20–24 AWG (0.2–0.51 mm²)
Contact Material:Brass with tin plating for corrosion resistance
Retention Mechanism:Positive Lock Mark II system to prevent vibration-induced disconnection
Mounting Style:Cable-mount or free-hanging
Operating Temperature Range :-40 – 110 °C [ -40 – 230 °F ]
Compliance:RoHS-certified
Data Overview
| Quick Disconnect Terminal Type | Receptacle |
| Wire Size (AWG) | 24 – 20 |
| Wire Size (mm²) | .2 – .51 |
| Mating Tab Width | 4.75 mm [ .187 in ] |
| Mating Tab Thickness | .51 mm [ .02 in ] |
Contact Features
| Contact Base Material | Brass |
| Terminal Orientation | Straight |
| Compatible With Wire & Cable Type | Discrete Wire |
| Terminal Plating Material | Pre-Tin |
| Crimp Type | F-Crimp |
