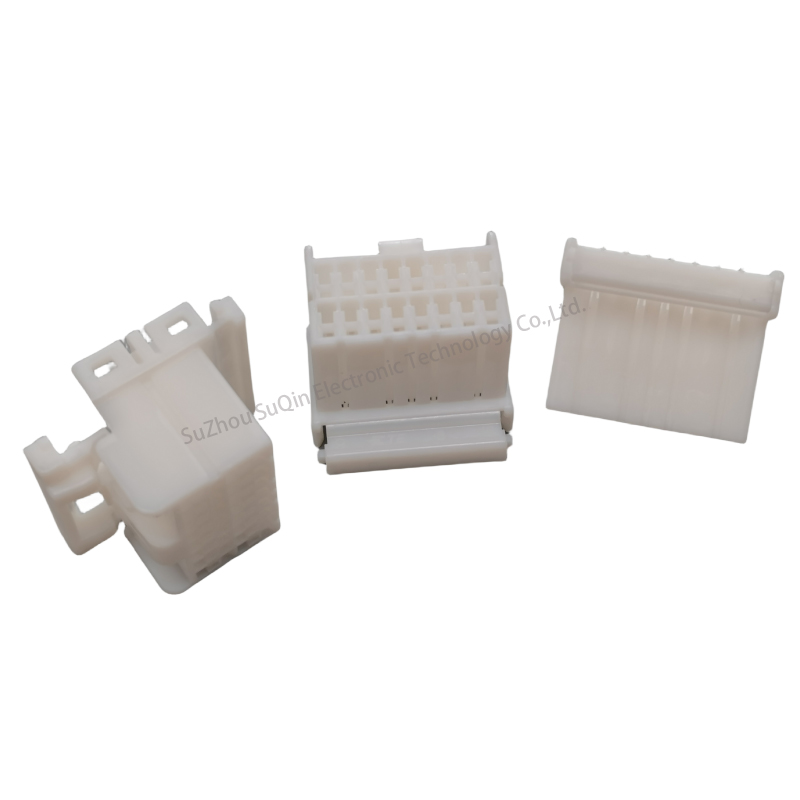

174046-1:16Pin Rectangular Connector
Short Description:
Category: Rectangular Connector Housings
Manufacturer: TE Connectivity
Contact Type：Female Socket
Number of Positions：16
Availability: 2566 in Stock
Min. Order Qty: 10
Standard Lead Time When No Stock: 2-4Weeks
Product Detail
VIDEO
Product Tags
Please contact me via My Email at first.
Or you can type the information below and click Send,I will receive it through the Email.
Description
Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 16 Position, .098 in [2.5 mm] Centerline, Natural, Signal, Multilock Connector System
Tech Specifications
| Series | Multi-Lock |
| Pitch | 0.098" (2.50mm) |
| Number of Rows | 2 |
| Connector System | Wire-to-Board, Wire-to-Device |
| Mounting Type | Free Hanging (In-Line) |
| Operating Voltage (VDC) | 12 |
| Color | White |
| Contact Termination | Crimp |
| UL Flammability Rating | UL 94HB |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -30°C ~ 105°C |
