174264-2 Automotive Connectors 6 Position, Automotive Housing for Male Terminals TE
Short Description:
6 Position
Automotive Housing for Male Terminals
Wire-to-Wire
4.8 mm [.189 in] Centerline
Sealable
Black
Wire & Cable
Power
Product Detail
Product Tags
TE Connectivity 174264-2: 6-Position Automotive Connector Housing
Position/Configuration: 6-position, dual-row design with male pins for precise mating and alignment.
Installation Style: Free-hanging (wire-mounted) with crimp termination for easy assembly onto harnesses.
Material: Black polybutylene terephthalate (PBT) housing, rated UL94V-2 for flame resistance and durability.
Dimensions: Height 20.6 mm, width 23.1 mm, depth/length 35.5 mm; pitch 4.8 mm and row spacing 3.5 mm for compact PCB integration.
Electrical Ratings: Voltage rating of 12 VDC, current capacity up to industry standards for automotive systems.
Environmental Tolerance: Operating temperature range -30°C to +105°C, suitable for harsh automotive conditions.
Compliance: RoHS-compliant with an integrated locking mechanism to prevent accidental disconnection.
Packaging: Typically shipped in factory packs of 100 units.
Data Overview
| Connector & Housing Type | Housing for Male Terminals |
| Number of Positions | 6 |
| Sealable | Yes |
| Operating Temperature Range | -30 – 105 °C [ -22 – 221 °F ] |
| Number of Rows | 2 |
Contact Features
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | On the Terminal |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

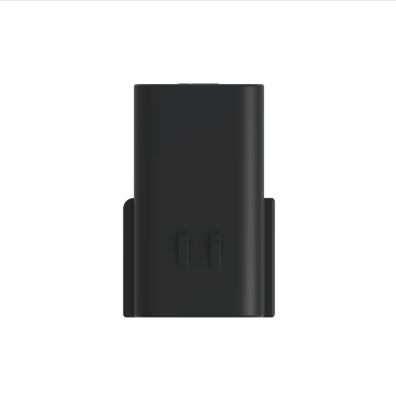

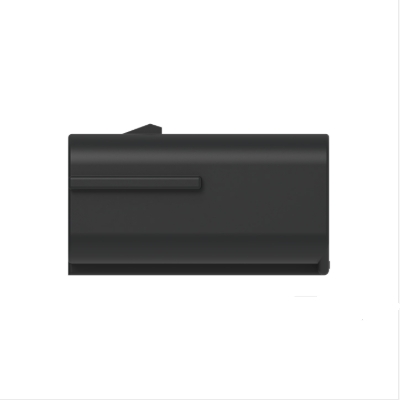

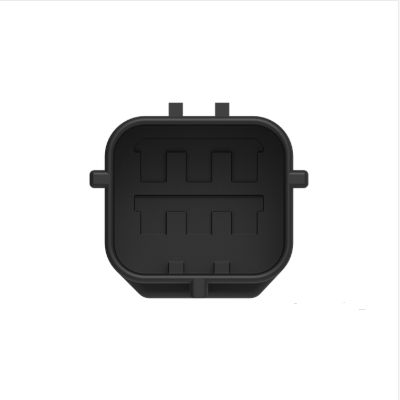

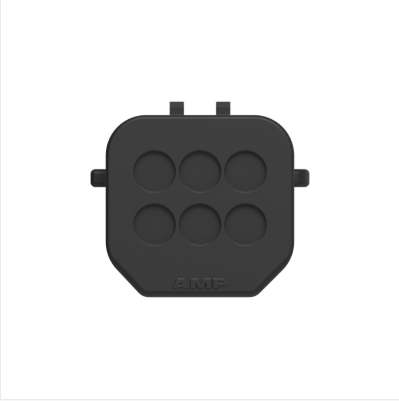

Product Display
