1871303-1Connectors Receptacle Contact TE

Short Description:

Receptacle Contact
28 – 22 AWG
250 VAC
250 VDC
.08 – .38 mm² Wire
Pre-Tin
Crimp
Copper Alloy
Signal
Dynamic 1000 Series

Product Detail

Product Tags

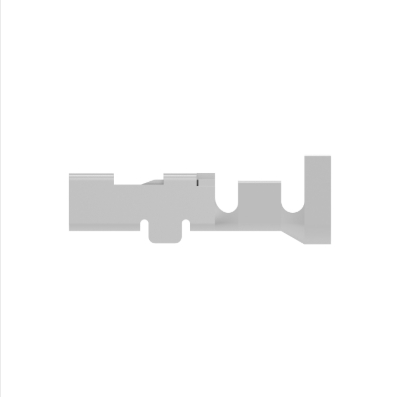

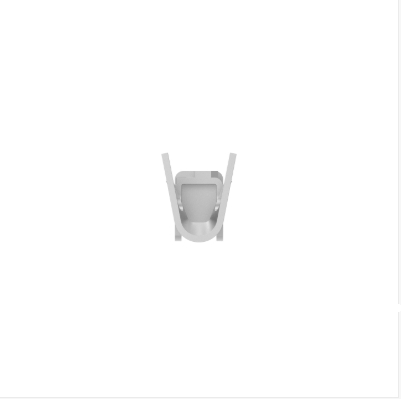

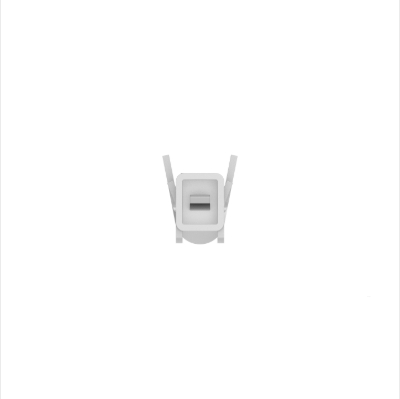

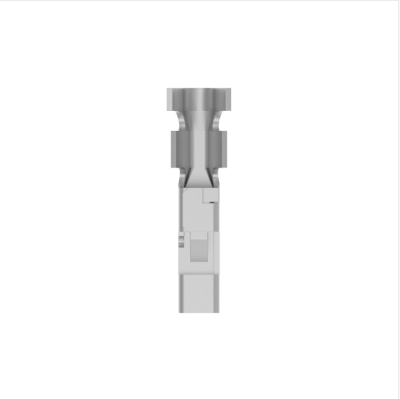

TE Connectivity 1871303-1 is a precision crimp receptacle contact designed for the ‌AMPMODU Interconnection System‌, delivering reliable signal/power transmission in wire-to-board and wire-to-wire applications. Engineered for durability and high-density layouts, it ensures secure connections in automotive, industrial, and medical electronics.

Key Specifications‌

‌Contact Type‌:Receptacle (Socket) for crimp termination

‌Contact Material‌:Copper alloy base with tin (Sn) plating for corrosion resistance

‌Wire Compatibility‌:24–30 AWG (optimized for fine-wire applications)

‌Current Rating‌ :3A max (at 20°C ambient)

‌Voltage Rating‌ :250V AC/DC

‌Insertion Force‌ ≤ 1.0N (per contact)

‌Withdrawal Force‌ ≥ 0.25N (per contact)

‌Operating Temp:-55°C to +105°C (broad industrial/automotive range)

‌Mating Cycles‌ ≥ 100 cycles (maintaining electrical stability)

‌Compliance‌ RoHS 3, REACH compliant

Data Overview

Contact Type	Receptacle
Contact Mating Area Plating Material	Pre-Tin
Operating Voltage (VAC)	250
Operating Voltage (VDC)	250
Wire Size (AWG)	28 – 22

Contact Features

Contact Orientation	Straight
Contact Base Material	Copper Alloy
Contact Current Rating (Max) (A)	5
Termination Method to Wire & Cable	Crimp
Operating Temperature Range	-55 – 105 °C [ -67 – 221 °F ]
