2 Way Sealed Female Connector|6180-2185
Short Description:
Category: Rectangular Connector Housings
Manufacturer:Sumitomo
Color: blue
Number of Pins: 2
Availability: 2601 in Stock
Min. Order Qty: 25
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Model Number：6180-2185 (Sumitomo Original)
Connector Type：2-Pin Female Circular Socket (Receptacle)
Sealing Rating：IP67 (dustproof and waterproof, suitable for wet/dusty conditions)
Wire Gauge：20–22 AWG (0.5–0.85 mm²)
Contact Material：Tin-plated brass for corrosion resistance
Temperature Range：-40°C to +125°C (automotive-grade durability)
Pitch：2.2mm (standard automotive spacing)
Voltage Rating ：50V DC / 30V AC (low-voltage applications)
Compliance：AEC-Q200 (vibration-resistant, automotive standard)
Insertion Force：≤15 N per contact (low insertion effort)
Withdrawal Force：≥5 N per contact (secure retention)
Mating Cycles：≥50 cycles (durability tested)
Insulation Resistance：≥100 MΩ @ 500V DC (high isolation)
Dielectric Strength：1,500V AC for 1 minute (high voltage tolerance)
Housing Material：PBT (Polybutylene Terephthalate) - flame retardant & UV resistant
Seal Material：Silicone rubber - flexible & temperature-resistant
Termination Method：Crimp (compatible with standard crimping tools for 20–22 AWG)
RoHS Compliance：Yes (lead-free & environmentally friendly)
Data Overview
| Category | Rectangular Connector Housings |
| Manufacturer | Sumitomo |
| Color | blue |
| Number of Pins | 2 |
| Min. Order Qty | 25 |
Contact Features
| Materials | 66 Nylon |
| Contact resistance | 3mΩ Max |
| Male/Female | Female |
| Flame retardant grade | UL94V-0 |
| Operating Temperature Range | -40℃～125℃ |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

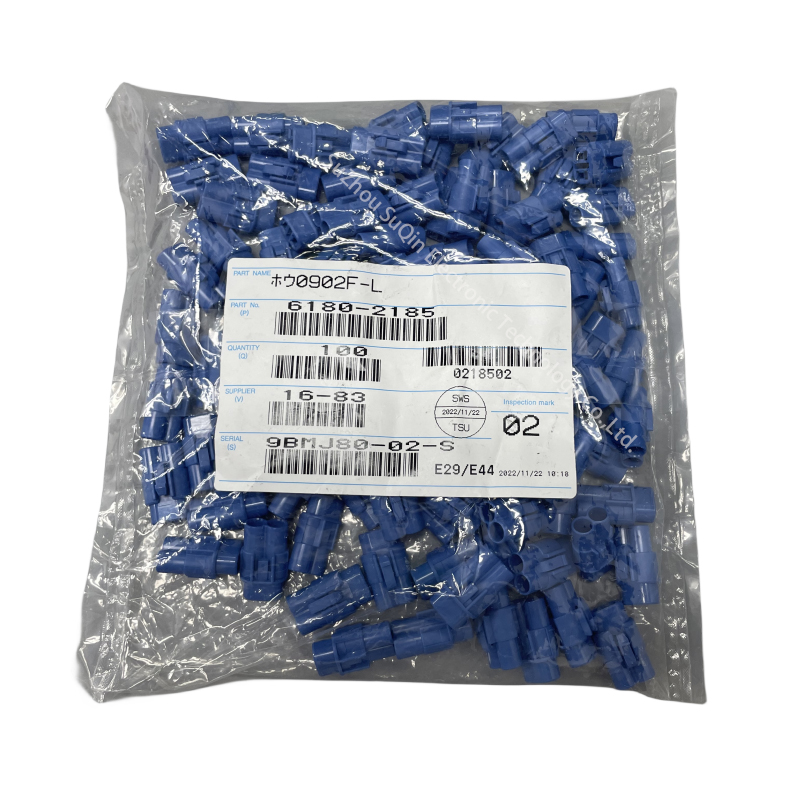

Product Display
