282089-1 Crimp Wiring Harness Automobile Connector Fuel Injector Connector
Short Description:
Brand Name:TE
Model Number:282089-1
Type:ADAPTER
Application:Automotive
Gender:Male
Pins:5P
Materia:PA66
Color:Black
Installation style:wire to wire
Sealed/Unsealed:Sealed
Wire Size:0.3~0.85
Contact Resistance:5m Ω Max
Current Rating:-40℃~120℃
AMP Superseal 1.5mm Series, Housing for Female Terminals, Wire-to-Wire / Wire-to-Board / Wire-to-Device, 5 Position, .236 in [6 mm] Centerline
Product Detail
VIDEO
Product Tags
Model Number：282089-1
Manufacturer：TE Connectivity
Series：Superseal 1.5
Connector Type：5-Position Female Socket (Receptacle)
Termination Method：Crimp (wire-to-wire)
Housing Material：Polyamide (PA) (flame-retardant, UV-resistant)
Sealing Rating ：IP67 (dustproof and waterproof)
Color：Black
Temperature Range：-40°C to +125°C
Voltage Rating：24 VDC
Current Rating ：Not specified (typical for Superseal 1.5: 10–13A per contact)
Dimensions (L×W×H)：40.9 mm × 9.3 mm × 32.2 mm
Pitch：6 mm
Locking Mechanism：Integrated in Housing
Compliance：RoHS-compliant
Data Overview
| Nominal Voltage Architecture (V) | 12 | 24 |
| Connector & Housing Type | Housing for Female Terminals |
| Number of Positions | 5 |
| Sealable | Yes |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
Contact Features
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Device | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

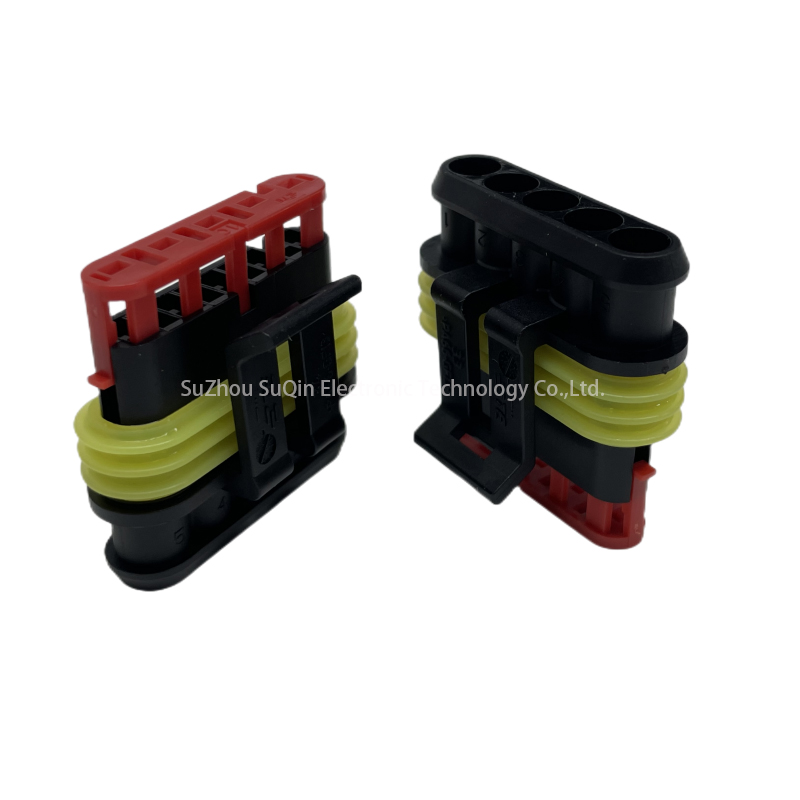

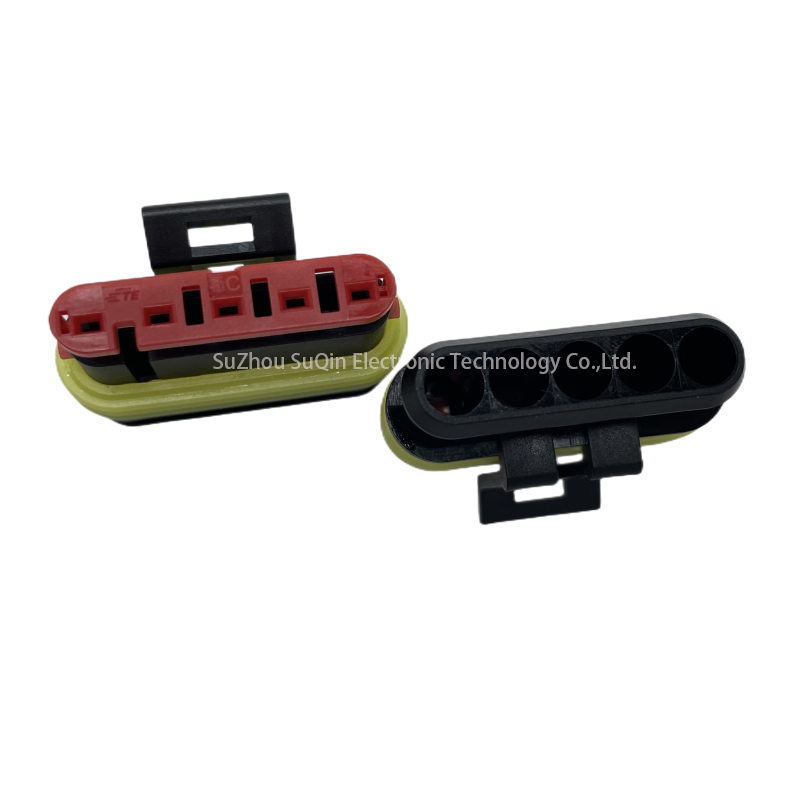

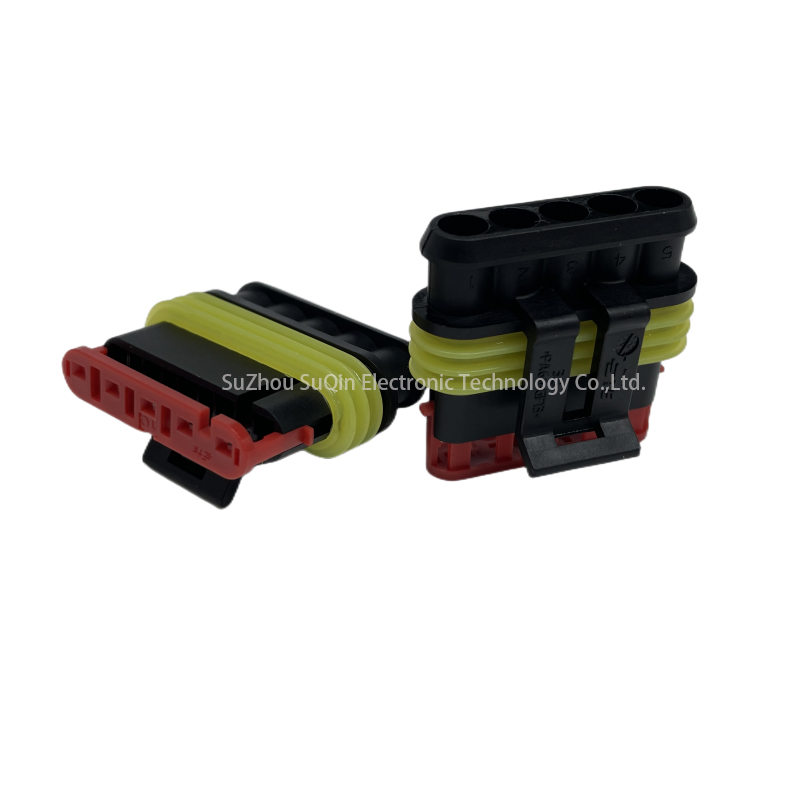

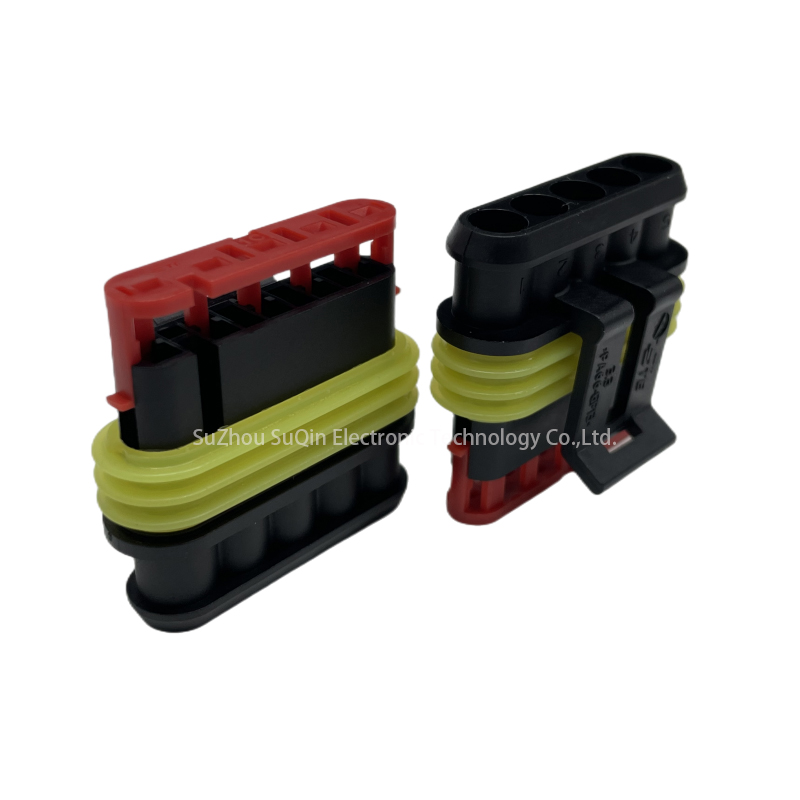

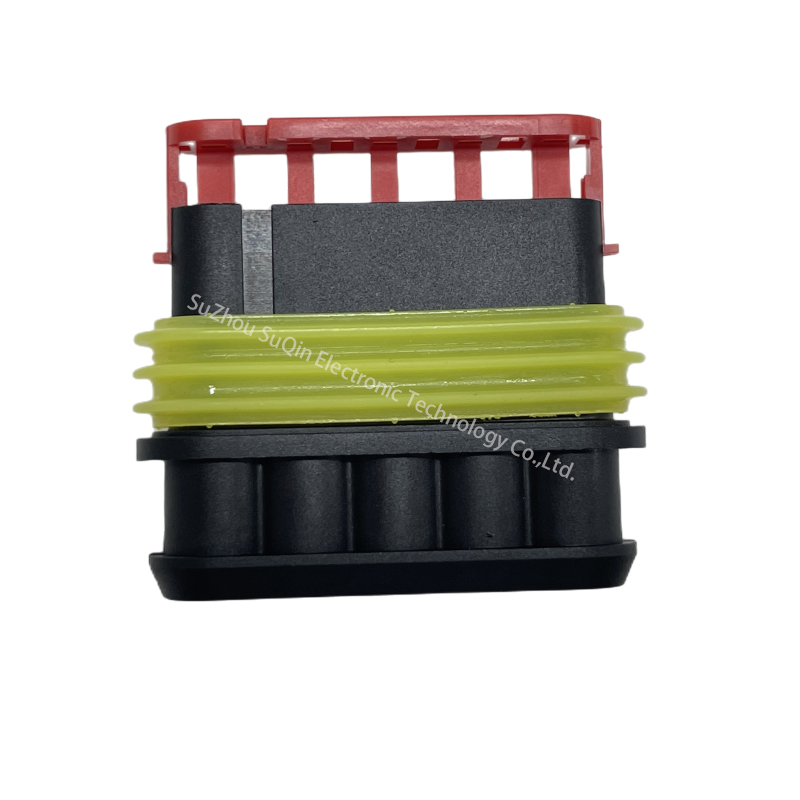

Product Display
