284425-1 TE Connectivity 3 POS CONN FOR INJECTION
Short Description:
TE Internal : 1-284425-1
TE Internal Description: 3 POS CONNECTOR FOR INJECTION
All AMP MCP, SEALED CONNECTOR HOUSING (97)
Number of Positions : 3
Connector & Housing Type : Housing for Female Terminals
Mating Tab Width : 1.5 mm [ .059 in ]
Connector System : Wire-to-Wire
Centerline (Pitch) : 4 mm [ .157 in ]
Product Detail
Product Tags
3 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4 mm [.157 in] Centerline, Sealable, Black, Wire & Cable, AMP MCP Connector System
Specifications
| Housing Material | Polyamide (PA) |
| Ingress Protection | IP54K |
| Length | 26.2 mm |
| Lock Mate Feature | Integrated in Housing |
Clarification
These sealed waterproof connectors are designed for severe environmental conditions and high temperature applications from --40_C to 140_C [--40_F to 125_F].
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

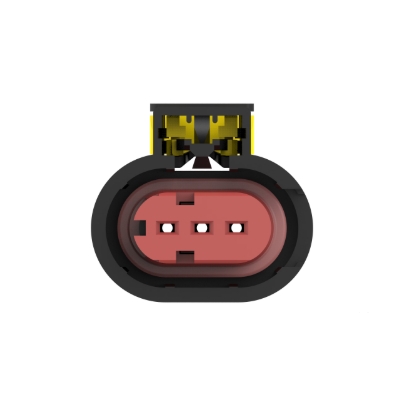

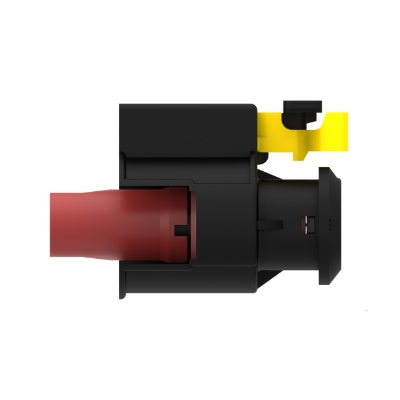

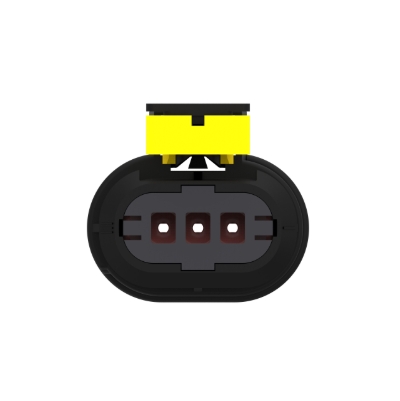

Product Display
