292161-2 Connectors PCB Mount Header, Vertical, Wire-to-Board, 2 PositionTE
Short Description:
Brand: TE Connectivity / AMP
Internal #: 292161-2
PCB Connector Type : PCB Mount Header
PCB Mount Orientation : Vertical
Connector System : Wire-to-Board
Number of Positions : 2
Primary Product Color :Natural
Contact Base Material :Brass
Product Detail
Product Tags
TE Connectivity 292161-2 Vertical PCB Header
Position: 2
Pitch: 2.0mm (0.079")
Mounting: Vertical THT with solder termination
Current Rating: 4A per contact @125VDC
Contact Material: Tin-plated brass (Sn)
Housing: PA66 nylon (UL94V-0, yellow)
Operating Temperature: -40°C to +105°C
Contact Resistance：≤10mΩ
Insulation Resistance：≥5000MΩ
Pin Diameter：0.6mm (0.024")
PCB Thickness：0.8-1.6mm recommended
Mating Cycles：50+ (industry standard)
Data Overview
| PCB Connector Type | PCB Mount Header |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Positions | 2 |
| Centerline (Pitch) | 2 mm [ .079 in ] |
Contact Features
| Header Type | Partially Shrouded |
| Sealable | No |
| Contact Base Material | Brass |
| Connector & Contact Terminates To | Printed Circuit Board |
| Primary Product Color | Natural |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

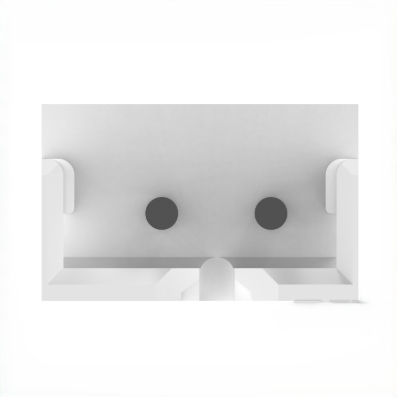

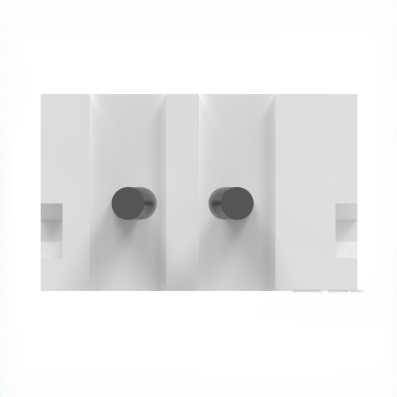

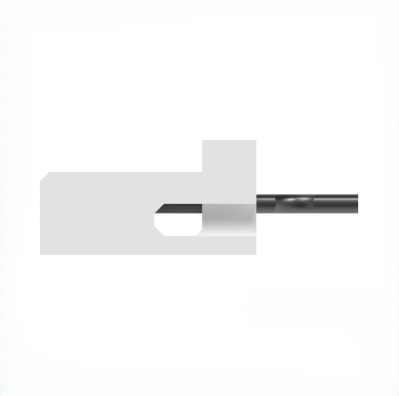

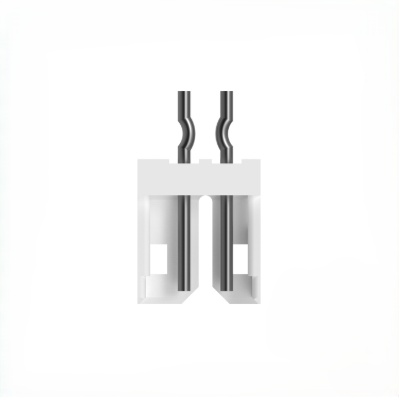

Product Display
