292253-2PCB Connectors/PCB Mount Header, Right Angle, Wire-to-Board, 2 Position TE
Short Description:
Fabricante:TE Connectivity
PCB Connector Type : PCB Mount Header
PCB Mount Orientation : Right Angle
Primary Product Color :Natural
Contact Base Material :Brass
Contact Mating Area Plating Material :Tin (Sn)
Contact Mating Area Plating Material Finish :Matte
Contact Type :Pin
Product Detail
Product Tags
TE Connectivity 292253-2 PCB Connector
Manufacturer P/N:292253-2
Positions:2 circuits in single row arrangement
Pitch:2.00 mm (0.079") centerline spacing
Mounting Type:Through-hole, right-angle
Termination:Solder tails with kinked pins
Contact Material:Brass with tin plating
Insulation Material:Polyamide (PA66), Nylon 66
Color:Natural
Voltage Rating: 125V AC
Insulation Resistance: ≥100MΩ @ 500V DC (industry standard)
Temperature Range: -40°C to +125°C
Flammability Rating: UL94 V-0 certified
Data Overview
| PCB Connector Type | PCB Mount Header |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Positions | 2 |
| Centerline (Pitch) | 2 mm [ .079 in ] |
Contact Features
| Primary Product Color | Natural |
| Header Type | Partially Shrouded |
| Sealable | No |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Product Type | Connector Assembly |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

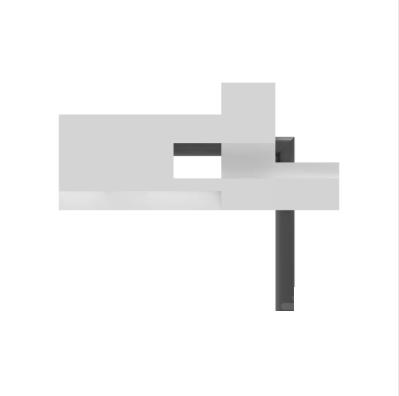

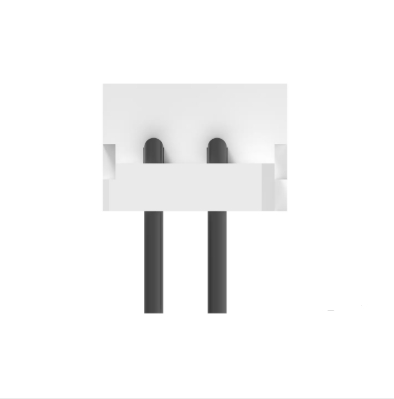

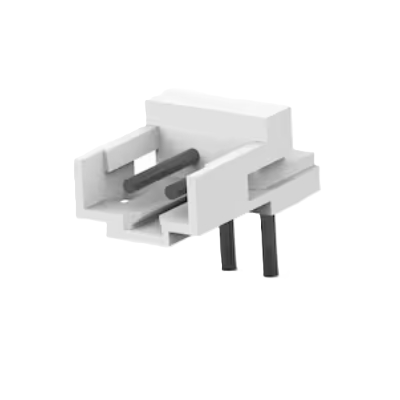

Product Display
