3-770476-1Connector Contacts/Wire-to-Board Socket, SL 156/Socket Contact TE
Short Description:
Socket Contact
24 – 18 AWG
250 VAC
.2 – .9 mm² Wire
Locking Lance Contact Retention
Tin (Sn)
Discrete Wire
Crimp
Phosphor Bronze
SL-156
Product Detail
Product Tags
TE Connectivity 3-770476-1 Wire-to-Board Socket Contact (SL-156 Series)
Key Features & Benefits
Secure Wire Termination: Engineered for robust crimping onto discrete wires, ensuring a gas-tight, reliable electrical connection that resists vibration and pull-out.
SL-156 Series Compatibility: Designed to fit seamlessly into SL-156 series connector housings (sockets), providing a standardized solution for a wide range of applications.
Durable Construction: Made from high-performance copper alloy for excellent conductivity, strength, and resistance to stress relaxation.
Optimized Contact Interface: Features a precision-engineered socket design that provides consistent, low-resistance mating force with the male pin header contacts.
Reliable Tin Plating: Typically features a bright tin plating finish on the contact area, offering good solderability, corrosion resistance, and cost-effectiveness for standard applications. (Confirm specific plating based on datasheet/manufacturer info if available).
Efficient Assembly: Streamlines the wire harness assembly process when used with compatible SL-156 sockets and crimping tools.
Cost-Effective Solution: Provides a reliable and economical connection point for wire-to-board applications.
Data Overview
| Contact Type | Socket |
| Contact Mating Area Plating Material | Tin (Sn) |
| Wire Contact Termination Area Plating Material | Tin |
| Operating Voltage (VAC) | 250 |
| Contact Retention Within Housing | With |
Contact Features
| Contact Base Material | Phosphor Bronze |
| Contact Current Rating (Max) (A) | 10 |
| Mating Square Post Dimension | 1.14 mm [ .045 in ] |
| Contact Mating Area Plating Material Finish | Matte |
| Contact Underplating Material | Nickel |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

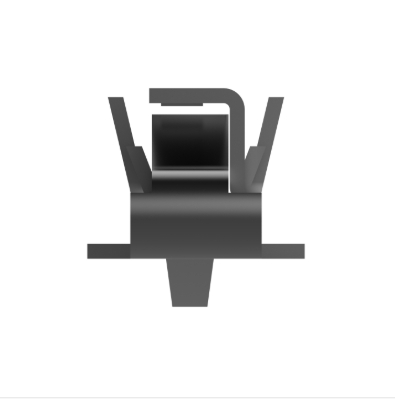

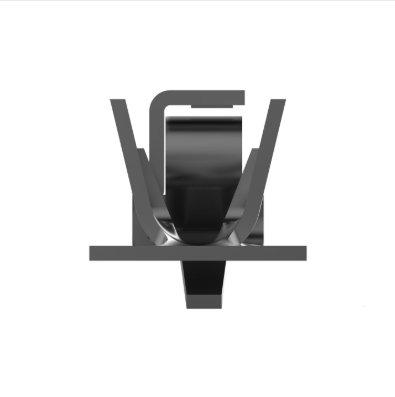

Product Display
