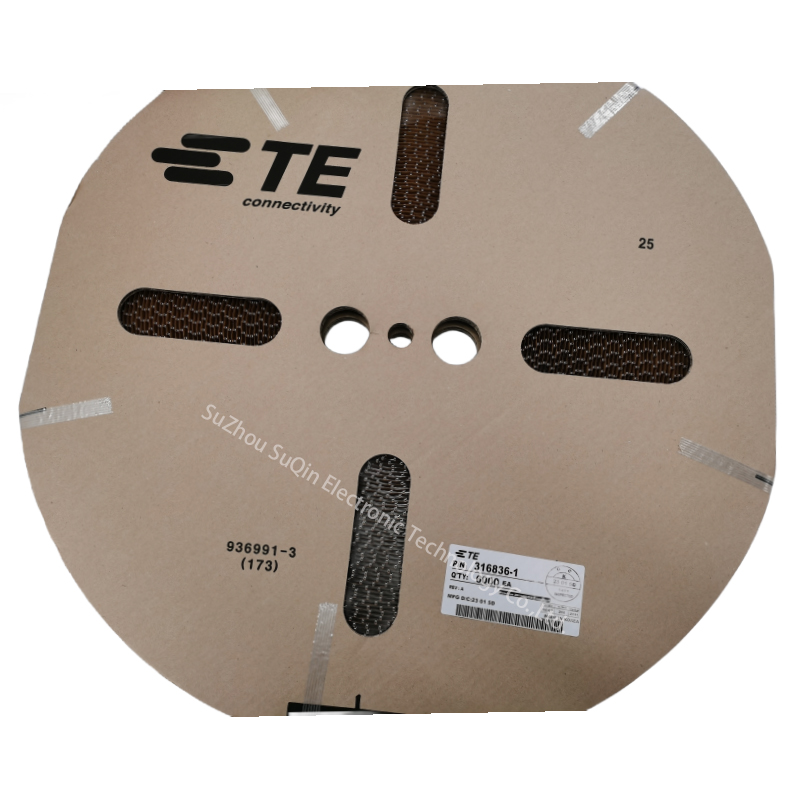

316836-1 Automotive Terminals
Short Description:
Category: Rectangular Connector Contacts
Manufacturer: TE Connectivity
Pin or Socket：Socket
Wire Gauge：20-22 AWG
Number of Pins: 20
Availability: 3552 in Stock
Min. Order Qty: 1
Standard Lead Time When No Stock: 2-4Weeks
Product Detail
VIDEO
Product Tags
Please contact me via My Email at first.
Or you can type the information below and click Send,I will receive it through the Email.
Description
Automotive Terminals, Receptacle, Mating Tab Width 1 mm [.039 in], Tab Thickness .64 mm [.025 in], 22 – 18 AWG Wire Size, Multilock Connector System
Tech Specifications
| Sealable | No |
| Primary Locking Feature | Clean Body |
| Contact Finish | Tin |
| Wire Size Search (mm²) | .3, .4, .5, .6, .8 |
| Operating Temperature Range | -30 – 105 °C [ -22 – 221 °F ] |
