35362-0450 PCB Headers and Receptacles2.00mm Pitch Sherlock Wire-to-Board Header Molex
Short Description:
2.00mm Pitch Sherlock Wire-to-Board Header
Vertical
with Positive Lock
4 Circuits
with Kinked PC Tails
Natural
Product Detail
Product Tags
Space-Saving 2.00mm Pitch: Maximizes PCB real estate for high-density layouts.Vertical Orientation (90°): Simplifies routing in tight enclosures.High Current Handling: Supports 2.0A per circuit (with 22-28 AWG wires).Durable Construction: Tin-plated contacts + high-temperature nylon housing (UL94 V-0 rated).Secure Mating: Positive latch locks with Sherlock™ receptacles (e.g., 172710 series).Wide Temp Range: Performs flawlessly from -40°C to +105°C.Gold Plating Option (on terminals) for corrosion-resistant signal integrity.
Data Overview
| Circuits (Loaded) | 4 |
| Color - Resin | Natural |
| Material - Plating Termination | Tin |
| Material - Resin | Nylon |
| Packaging Type | Bag |
Contact Features
| Circuits (maximum) | 4 |
| Durability (mating cycles max) | 30 |
| Current - Maximum per Contact | 2.0A |
| Voltage - Maximum | 125V |
| Temperature Range - Operating | -40° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

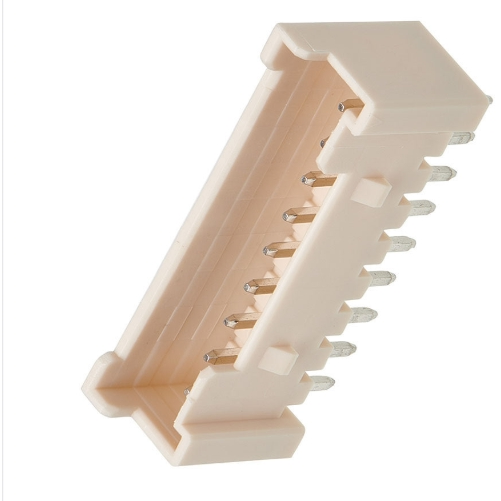

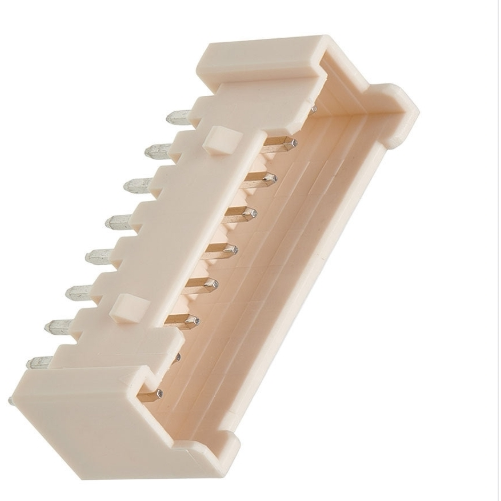

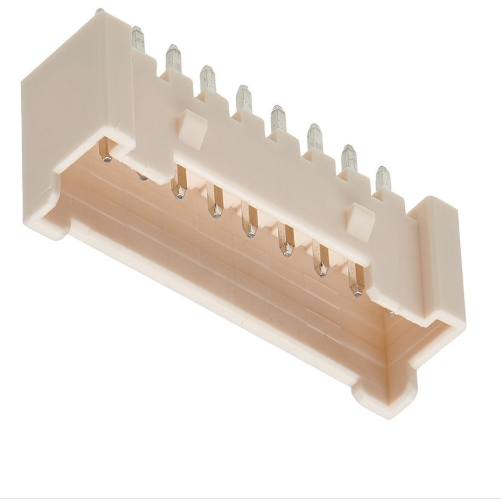

Product Display
