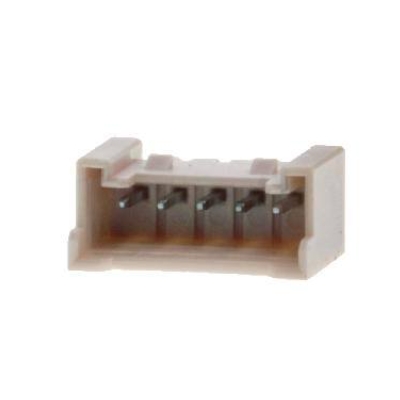

35362-0550 PCB / Wire Connectors /2.00mm Pitch Sherlock Wire-to-Board Header MOLEX
Short Description:
2.00mm Pitch Sherlock Wire-to-Board Header
Vertical
with Positive Lock
5 Circuits
with Kinked PC Tails
Natural
Product Detail
Product Tags
The Molex 35362-0550 is a 5-position horizontal header from the Sherlock™ series, featuring a unique tool-less termination system for rapid wire assembly.
Key Specifications & Features
Pitch: 2.00mm (20% denser than 2.54mm standards)
Current Rating: 3.0A/pin (150V AC/DC)
Termination: Tool-less push-in wire clamping (supports 20-24 AWG)
Contact Material: Tin-plated copper alloy (low insertion force)
Operating Temp: -40°C to +105°C
Locking: Secure latch with mating receptacles (e.g., 35365 series)
Housing: UL 94V-0-rated thermoplastic (flame-retardant)
Compliance: RoHS, REACH
Data Overview
| Circuits (Loaded) | 5 |
| Color - Resin | Natural |
| Durability (mating cycles max) | 30 |
| Flammability | 94V-0 |
| Material - Plating Mating | Tin |
Contact Features
| Circuits (maximum) | 5 |
| Material - Resin | Nylon |
| Packaging Type | Bag |
| Pitch - Mating Interface | 2.00mm |
| Temperature Range - Operating | -40° to +105°C |
