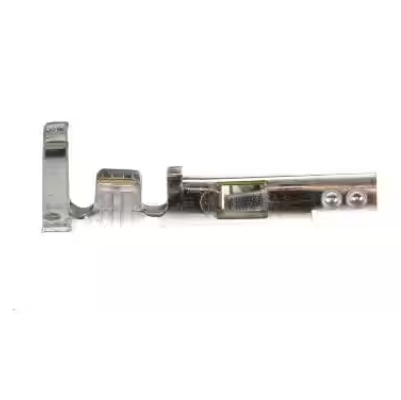

39-00-0038 Connectors Mini-Fit Female Crimp Terminal MOLEX
Short Description:
Mini-Fit Female Crimp Terminal
Tin (Sn) over Copper (Cu) Plated Brass
Double 22+22 or Single 24-18 AWG
Reel
Product Detail
Product Tags
Engineered for industrial-grade power transmission, the Molex Mini-Fit female terminal (P/N 39-00-0038) delivers secure, vibration-resistant connections in compact spaces. Tin-plated brass construction for low resistance and corrosion resistance，Handles 20-24 AWG wires (0.25–0.75mm²) at 300V。Dual-beam crimp design grips conductors and insulation，Compatible with standard Molex crimpers (e.g., 63811-1000)。Positive click retention in Mini-Fit Jr. housings (e.g., 39-01-2020)。Operating range: -40°C to +105°C，UL 1977 & CSA certified; RoHS/REACH compliant，Vibration-proof for motors, EVs, and factory automation。
Data Overview
| Durability (mating cycles max) | 30 |
| Gender | Female |
| Material - Metal | Brass |
| Material - Plating Mating | Tin |
| Packaging Type | Reel |
Contact Features
| Material - Plating Termination | Tin |
| Plating min - Termination | 0.889µm |
| Wire Insulation Diameter | 1.30-3.10mm |
| Wire Size (AWG) | 18, 20, 22, 22+22, 24 |
| Wire Size mm² | N/A |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

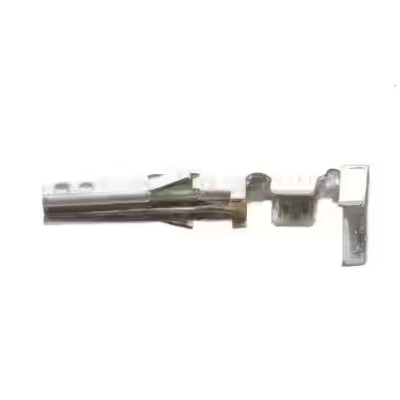

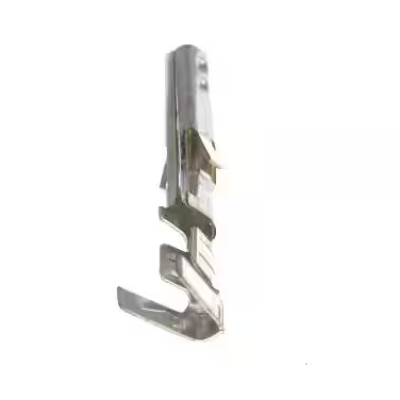

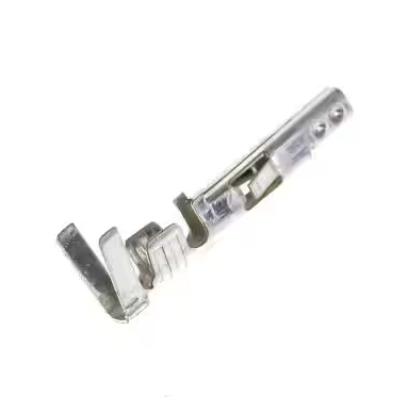

Product Display
