39-00-0040 Crimp Terminals/Mini-Fit Male Crimp Terminal /MOLEX
Short Description:
Mini-Fit Male Crimp Terminal
Tin (Sn) over Copper (Cu) Plated Brass Contact
Double 22+22 or Single 24-18 AWG
Reel
Product Detail
Product Tags
Molex 39-00-0040 Mini-Fit Jr.™ Male Crimp Terminal
Terminal Type:Male Pin (Tin-Plated)
Material:Copper Alloy Body, Tin (Sn) Plating
Wire Range:18–24 AWG (0.2–0.8 mm²)
Current Rating :9A continuous per circuit
Voltage Rating :600V AC/DC
Temperature Range:-40°C to +105°C
Contact Pitch:4.20mm (0.165")
Wire Strip Length:2.5mm recommended
Data Overview
| Durability (mating cycles max) | 30 |
| Plating min - Mating | 0.889µm |
| Current - Maximum per Contact | 9.0A |
| Wire Insulation Diameter | 1.30-3.10mm |
| Wire Size (AWG) | 18, 20, 22, 22+22, 24 |
Contact Features
| Gender | Male |
| Material - Plating Mating | Tin |
| Voltage - Maximum | 600V |
| Packaging Type | Reel |
| Termination Interface Style | Crimp or Compression |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

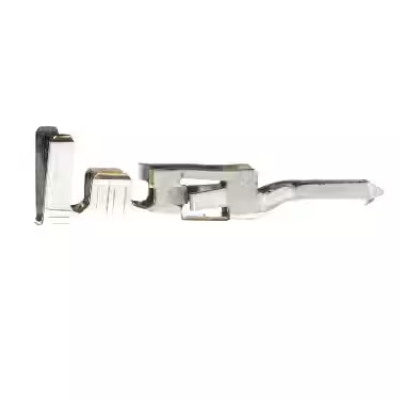

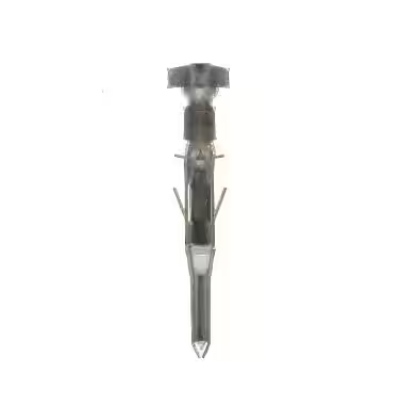

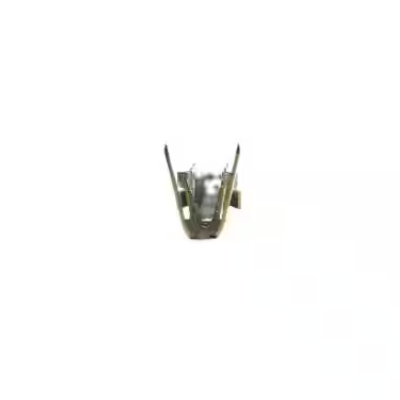

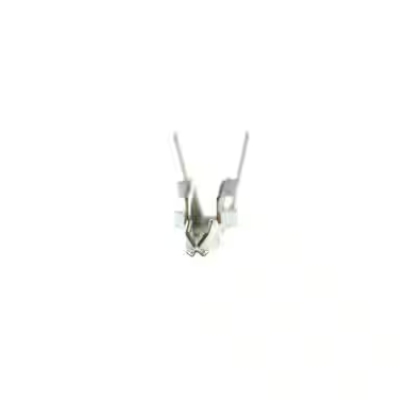

Product Display
