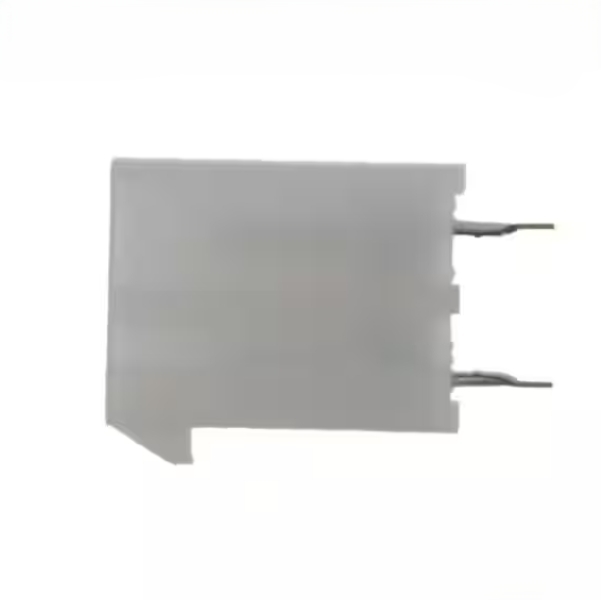

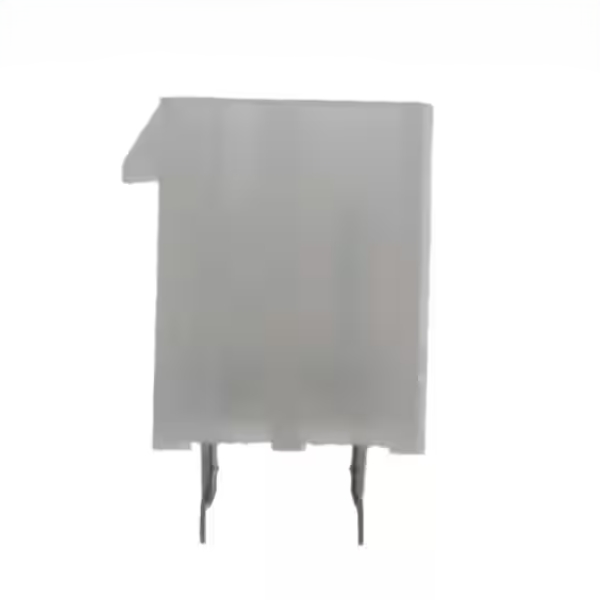

39-28-1023PCB Headers and Receptacles/Mini-Fit Jr. Vertical Header MOLEX
Short Description:
Mini-Fit Jr. Vertical Header
4.20mm Pitch
Dual Row
2 Circuits
without Snap-in Plastic Peg PCB Lock
Tin
Natural
Product Detail
Product Tags
The Molex 39-28-1023 is a robust 4-pin vertical PCB header engineered for demanding power applications where space and reliability matter. Part of the proven Mini-Fit Jr.® connector system, it delivers exceptional performance in automotive, industrial, and data center environments.High Power Density: Supports 9A per pin (300V) in a compact 4.20mm pitch design – ideal for space-constrained PCBs.Extreme Environment Ready: Operates reliably from -40°C to +105°C with vibration-resistant positive-lock mating.
Data Overview
| Circuits (maximum) | 2 |
| Durability (mating cycles max) | 30 |
| Flammability | 94V-2 |
| Color - Resin | Natural |
| Material - Resin | Nylon |
Contact Features
| Material - Plating Termination | Tin |
| PC Tail Length | 3.50mm |
| Pitch - Termination Interface | 4.20mm |
| Plating min - Termination | 0.889µm |
| Temperature Range - Operating | -40° to +105°C |
