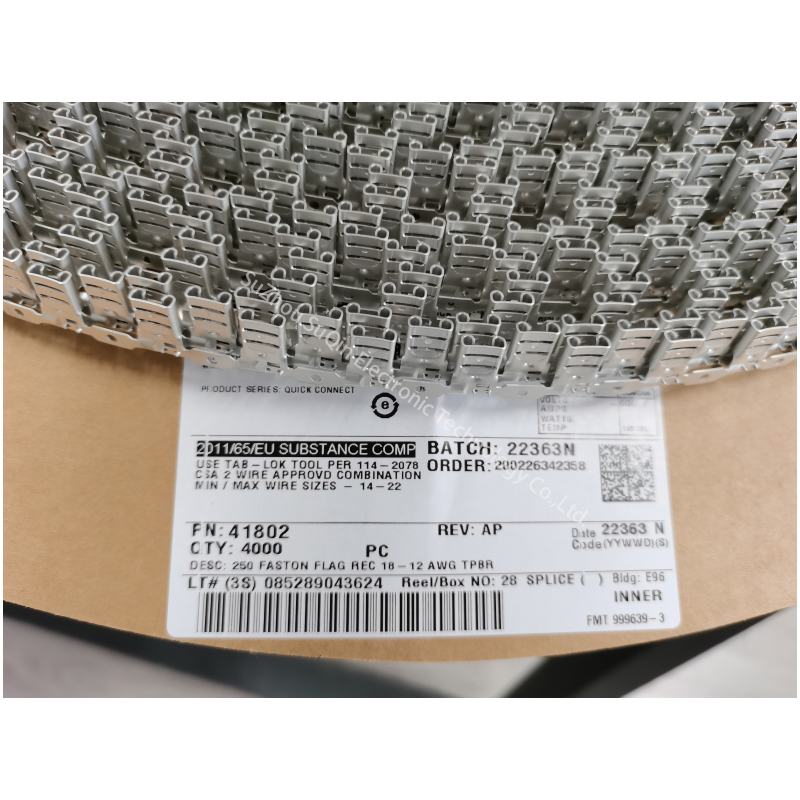

41802：Non-Insulated Crimp Terminal Connector
Short Description:
Category: Quick Connects
Manufacturer: TE Connectivity
Series：Faston
Gender：Female
Termination：Crimp
Availability: 4000 in Stock
Min. Order Qty: 10
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Please contact me via My Email at first.
Or you can type the information below and click Send,I will receive it through the Email.
Description
Quick Disconnects, Receptacle, 18 – 12 AWG Wire Size, .82 – 3.31 mm² Wire Size, Mating Tab Width 6.35 mm [.25 in], Flag, Brass, FASTON 250
Tech Specifications
| Part Status | Active |
| Terminal Type | Angled - 90°, Flag |
| Wire Gauge | 12-18 AWG |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Contact Finish | Tin |
| Insulation Diameter | 0.110" ~ 0.210" (2.79mm ~ 5.33mm) |
| Contact Material | Brass |
| Operating Temperature Range | -40 – 110 °C [ -40 – 230 °F ] |
