43030-0002Connectors Micro-Fit 3.0 Crimp Terminal MOLEX
Short Description:
Micro-Fit 3.0 Crimp Terminal
Female
with Select Gold (Au) Plated Phosphor Bronze Contact
24-20 AWG
Reel
Product Detail
Product Tags
The Molex 43030-0002 is a female crimp terminal from the Micro-Fit 3.0™ series, designed for secure wire-to-connector interconnections in high-density electronics.
Key Specifications
Terminal Type：Female crimp contact with gold-plated phosphor bronze connector
Wire Compatibility：20-24 AWG
Plating：Select Gold (Au) over phosphor bronze base for corrosion resistance
Current Rating ：Up to 10.5A (series typical)
Packaging：Supplied in reels for automated assembly
Operating Temp：-40°C to +105°C
Compliance：RoHS-certified, halogen-free
Data Overview
| Gender | Female |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Tin |
| Packaging Type | Reel |
Contact Features
| Plating min - Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.85mm max. |
| Wire Size (AWG) | 20, 22, 24 |
| Current - Maximum per Contact | 8.5A |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

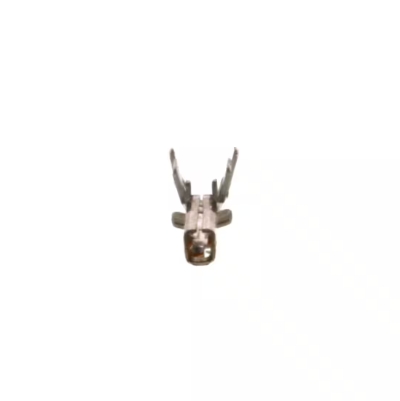

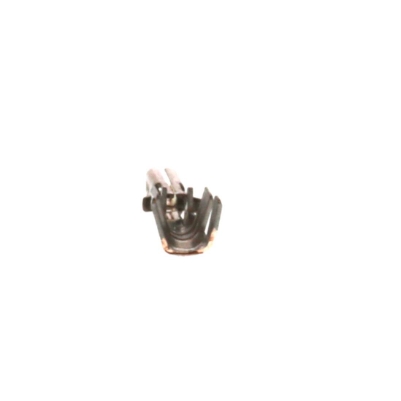

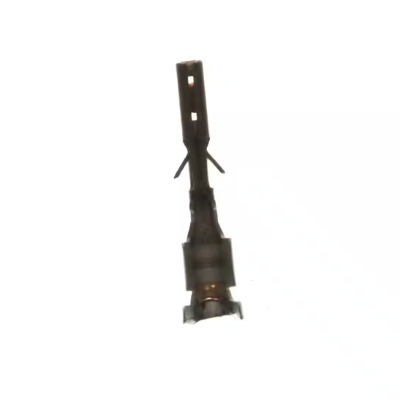

Product Display
