43045-1412 PCB Headers and Receptacles/Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row MOLEX
Short Description:
Part Number: 43045-1412
Product Family: Micro-Fit Connectors
Durability (mating cycles max):30
Current – Maximum per Contact:8.5A
Circuits (Loaded):14
Color – Resin:Black
Flammability:94V-0
Product Detail
Product Tags
Manufacturer:Molex
Model Number:43045-1412
Product Type:14-Position Dual Row Vertical Header (Wire-to-Board)
Series:Micro-Fit 3.0
Color:Black (typical for Micro-Fit series)
Key Features:3.00mm pitch, THT mounting, high-current capability, compact design.
Pitch:3.00mm
Contact Number:14 (7 per row)
Orientation:Vertical
Mounting Type:Through-Hole (THT)
Termination Method:Solder
Contact Material:Copper Alloy (Tin-Plated)
Contact Plating:Gold (from distributor listings)
Housing Material:Nylon
Current Rating :5.0A
Voltage Rating :250V
Insulation Resistance:≥1000MΩ (standard for Molex connectors)
RoHS Compliance:Yes
Data Overview
| Circuits (maximum) | 14 |
| Durability (mating cycles max) | 30 |
| Flammability | 94V-0 |
| Voltage - Maximum | 600V |
| Color - Resin | Black |
Contact Features
| Material - Metal | Brass |
| Material - Plating Mating | Tin |
| Material - Resin | High Temperature Thermoplastic |
| Termination Interface Style | Through Hole - Kinked Pin |
| Temperature Range - Operating | -40° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

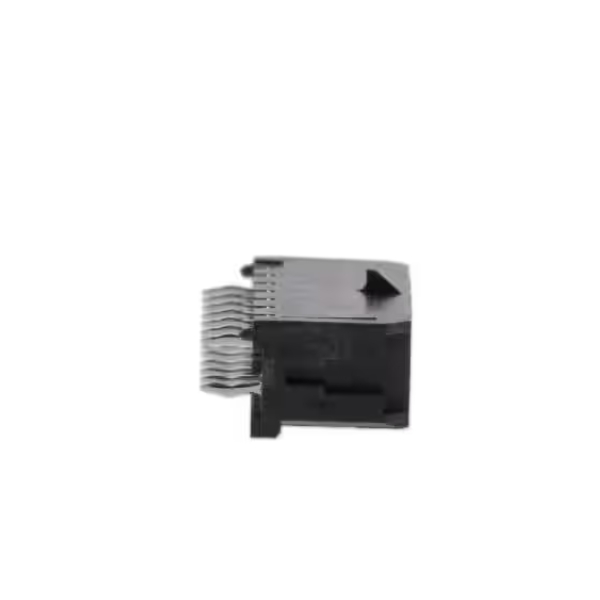

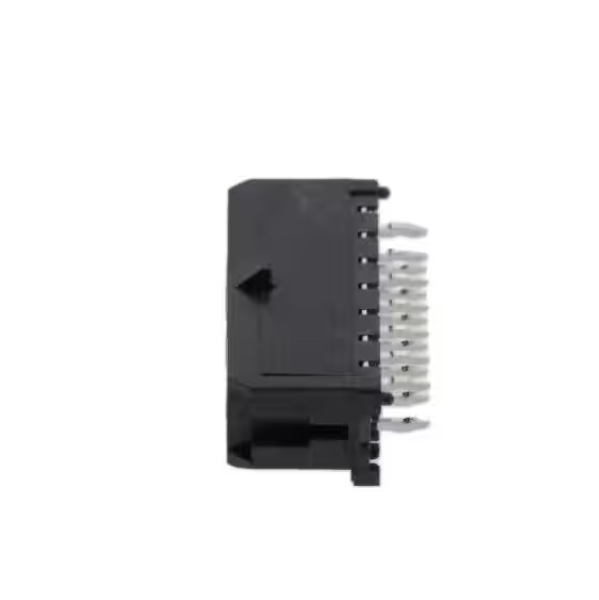

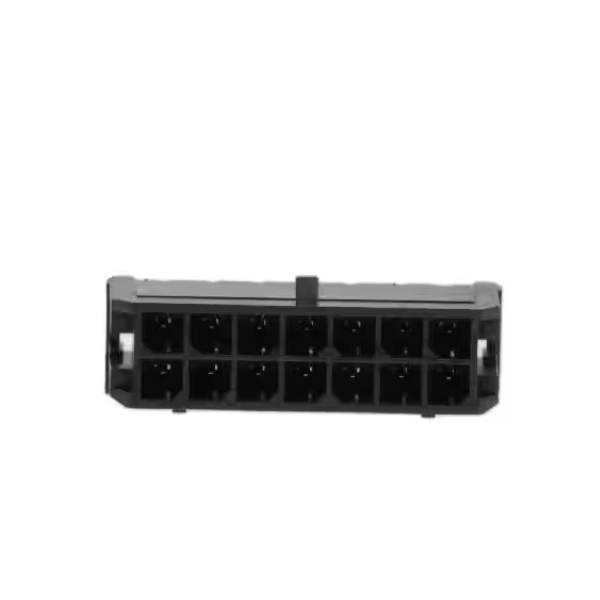

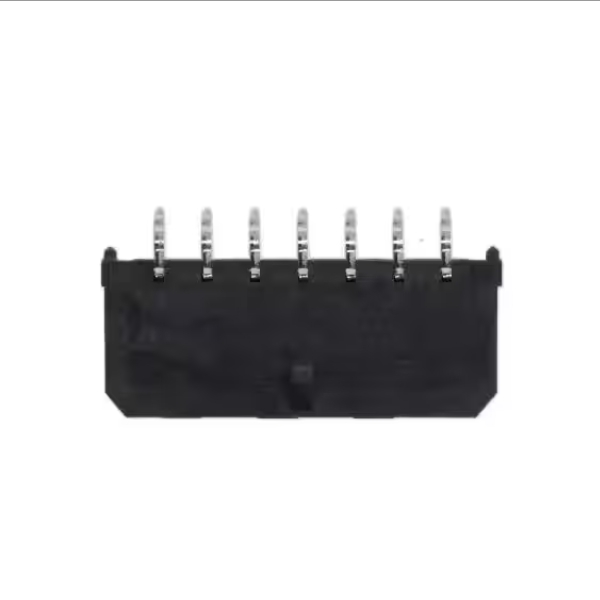

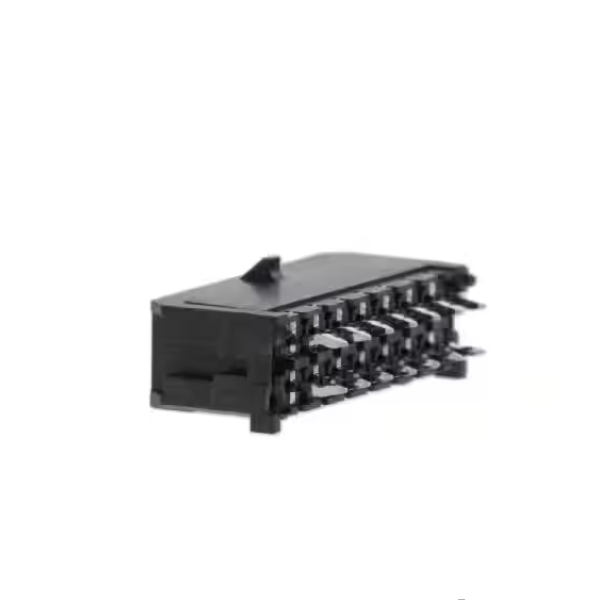

Product Display
