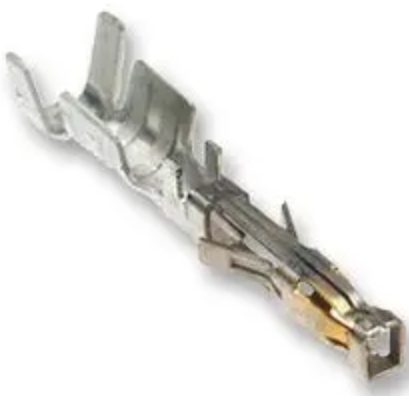

46235-0001Micro-Fit Connectors RMF Reduced Mating Force,Crimp Terminal Molex
Short Description:
Micro-Fit RMF Reduced Mating Force
Crimp Terminal
Female
with 0.38µm Selective Gold (Au) over Nickel (Ni)
24-20 AWG
without Lubricant
Product Detail
Product Tags
Compact 3.0mm pitch saves PCB space while maintaining 5A current rating per circuit typical for Micro-Fit 3.0 systems. UL94 V-0 flame-rated materials enhance safety in high-temperature environments (-40°C to +105°C). Reduced mating force (RMF) simplifies assembly and reduces insertion effort, enhancing user experience during installation. Gold-plated copper contacts ensure high conductivity and corrosion resistance for reliable signal transmission. Compatible with 20-24 AWG wires, supporting flexible wiring solutions in space-constrained designs. Optimized for Micro-Fit 3.0 housings (e.g., 171850 series), providing secure retention and vibration resistance in harsh environments.
Data Overview
| Durability (mating cycles max) | 40 |
| Material - Metal | Copper-Zinc-Tin |
| Material - Plating Termination | Nickel |
| Packaging Type | Reel |
| Plating min - Termination | 1.270µm |
Contact Features
| Gender | Female |
| Material - Plating Mating | Gold |
| Net Weight | 0.046/g |
| Termination Interface Style | Crimp or Compression |
| Wire Size (AWG) | 20, 22, 24 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
