5-1418760-2 TE Connectivity AMP Connectors /Tab Terminal
Short Description:
Tab Terminal
20 – 18 AWG
.5 – .75 mm² Wire
1.15 mm [.045 in] Tab Width
Gold (Au)
.6 mm [.024 in] Tab Thickness
Unsealed
MCON 1.2mm
Product Detail
Product Tags
The 5-1418760-2 is a male tab terminal from TE Connectivity's AMP Connectors portfolio, designed for robust wire-to-device connections in automotive and industrial applications. Dual-beam contact retention prevents disengagement in high-shock environments.Tin-plated surface ensures durable electrical connection with 18-20 AWG wires4Wide Temperature Tolerance: Operates reliably from -40°C to +130°C (automotive-grade resilience)。Compact tab profile simplifies integration in dense assemblies。Locking lance mechanism maintains positive engagement with female receptacles
Data Overview
| Terminal Type | Tab |
| Wire Size (AWG) | 20 – 18 |
| Wire Size (mm²) | .5 – .75 |
| Mating Tab Width | 1.15 mm [ .045 in ] |
| Interface Plating | Gold (Au) |
Contact Features
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.2mm |
| Crimp Type | F-Crimp |
| Mating Tab Thickness | .6 mm [ .024 in ] |
| Operating Temperature Range | -40 – 150 °C [ -40 – 302 °F ] |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

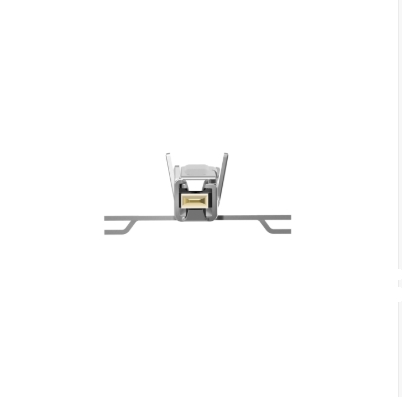

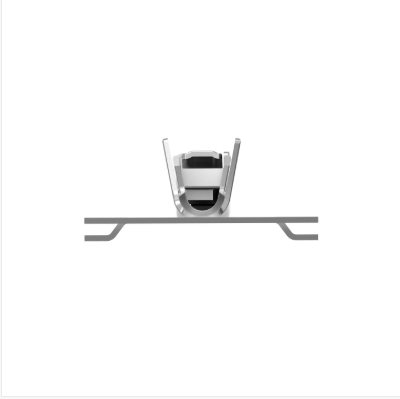

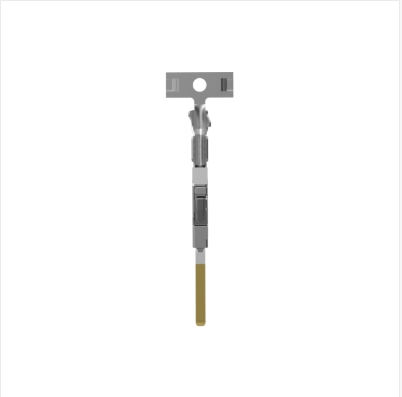

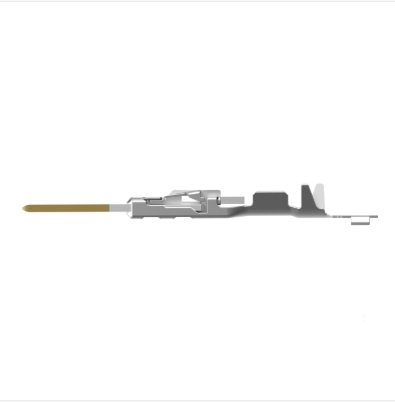

Product Display
