5-963716-1TE Connectivity / AMP Pin Terminal
Short Description:
Pin Terminal
20 – 18 AWG
.5 – .75 mm² Wire
.63 mm [.025 in] Tab Width
Tin (Sn)
.63 mm [.025 in] Tab Thickness
Unsealed
Product Detail
Product Tags
5-963716-1Precision Gold-Plated Pin Terminal for Micro-Connections。Key Features & Benefits:Micro-Scale Design: 0.64mm (0.025") pin thickness fits miniaturized connectors and PCB headers.Enhanced Conductivity: Gold plating over nickel barrier ensures stable signal integrity in humid/vibratory environments.Robust Performance: Rated for -55°C to +170°C and 3A current—ideal for automotive, medical, and industrial use.Easy Integration: Compatible with AMP CT series housings and standard crimping tools for rapid assembly.Reliable Termination: Precision-machined brass base material resists deformation during installation.
Data Overview
| Terminal Type | Pin |
| Wire Size (AWG) | 20 – 18 |
| Wire Size (mm²) | .5 – .75 |
| Mating Tab Width | .63 mm [ .025 in ] |
| Interface Plating | Tin (Sn) |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | .63mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 7.5 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

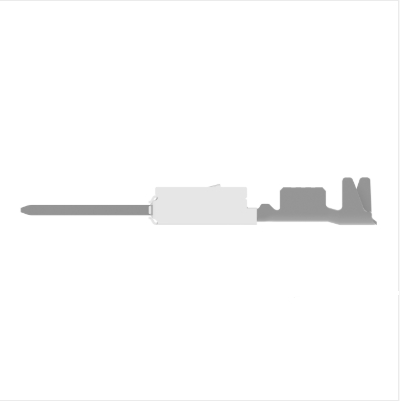

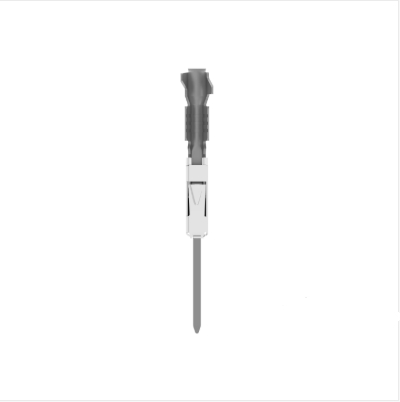

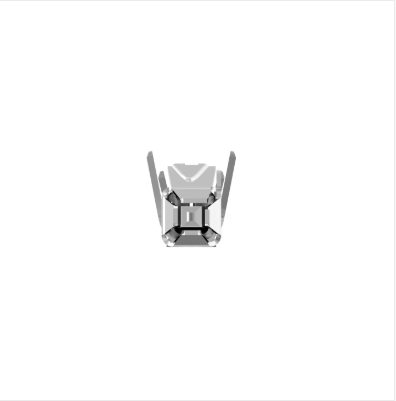

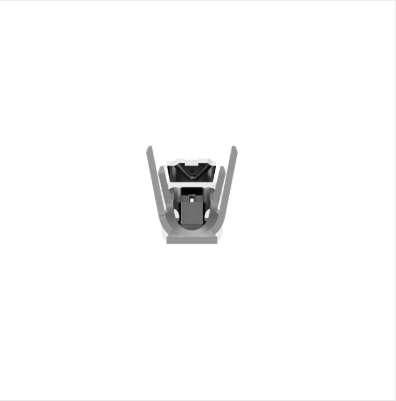

Product Display
