53261-0371PCB Headers and Receptacles 1.25mm Pitch, PicoBlade PCB Header MOLEX
Short Description:
Part Number: 532610371
Product Family: PicoBlade Connectors
Component Type:PCB Header
Application:Signal, Wire-to-Board
Color – Resin:Natural
Circuits (maximum):3
Current – Maximum per Contact :1.0A
Material – Metal:Phosphor Bronze
Material – Plating Mating:Tin
Material – Resin:Polyamide
Product Detail
Product Tags
Molex 53261-0371 PicoBlade PCB Header
Configuration:Single-row, 3 circuits (3p) with 1.25mm pitch
Orientation:Right-angle for space-saving PCB layouts
Mounting Type:Surface mount (SMT) for automated assembly
Current Rating :1.0A per circuit
Voltage Rating :125V AC/DC
Termination:Solder termination; supports 20-24 AWG wires
Temperature Range - Operating:-40° to +105°C
Contact Plating:Tin (Sn) over nickel for corrosion resistance
Locking Mechanism:Friction lock for secure mating
Dimensions:5.50mm (L) × 4.20mm (W) × 3.40mm (H)
Material:UL 94V-0 flame-retardant nylon housing
Compliance:RoHS compliant
Data Overview
| Circuits (maximum) | 3 |
| Current - Maximum per Contact | 1.0A |
| Flammability | 94V-0 |
| Voltage - Maximum | 125V |
| Durability (mating cycles max) | 30 |
Contact Features
| Material - Metal | Phosphor Bronze |
| Material - Plating Termination | Tin |
| Material - Resin | Polyamide |
| Orientation | Right Angle |
| Temperature Range - Operating | -40° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

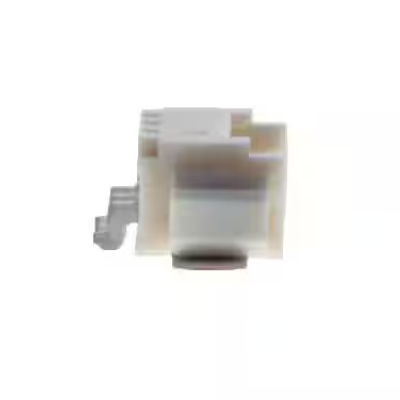

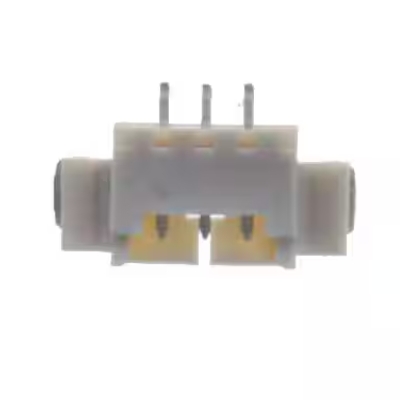

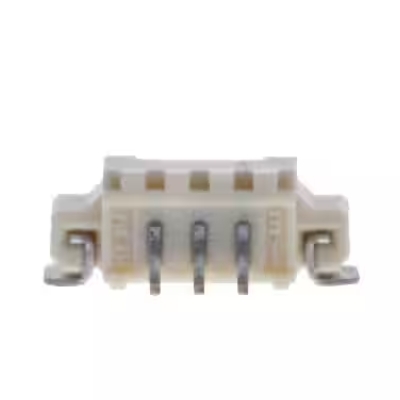

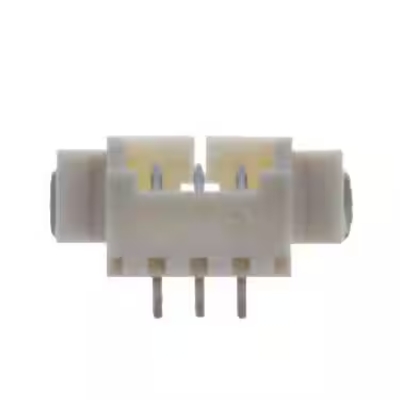

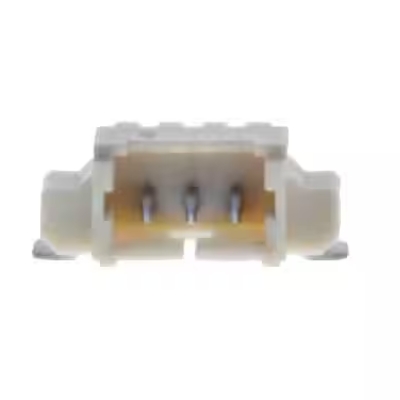

Product Display
