53261-0771PCB Headers and Receptacles /1.25mm Pitc PicoBlade PCB Header MOLEX
Short Description:
1.25mm Pitch
PicoBlade PCB Header
Single Row
Right-Angle
Surface Mount
Tin (Sn) Plating
Friction Lock
7 Circuits
Natural
Tape and Reel
Product Detail
Product Tags

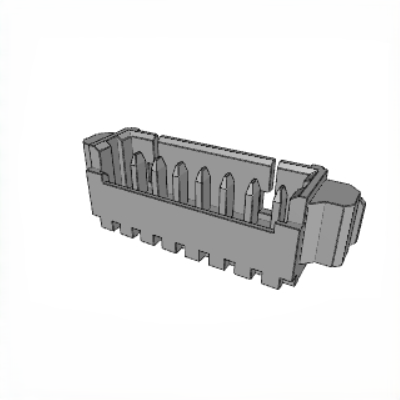

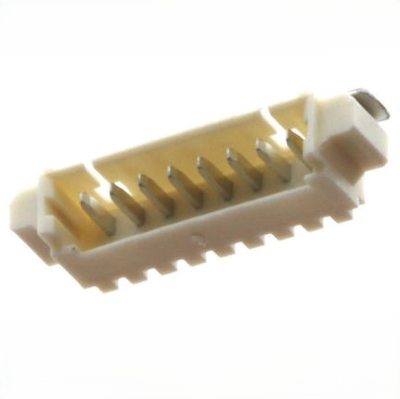

Molex 53261-0771 PicoBlade™ 1.25mm Pitch PCB Header。
Key Specifications & Features
Pitch: 1.25mm (industry’s finest for streamlined designs)
Current Rating: 1.0A/pin
Voltage Rating: 50V AC/DC
Termination: Vertical solder-tail PCB mount (reflow/wave compatible)
Contact Material: Tin-plated phosphor bronze (low resistance + corrosion resistance)
Temperature Range: -40°C to +105°C
Locking: Positive latch with mating receptacles (e.g., 0500570771)
Compliance: RoHS, REACH, UL 94V-0 housing
Data Overview
| Circuits (Loaded) | 7 |
| Durability (mating cycles max) | 30 |
| Color - Resin | Natural |
| Circuits (maximum) | 7 |
| Flammability | 94V-0 |
Contact Features
| Material - Metal | Phosphor Bronze |
| Material - Plating Termination | Tin |
| Orientation | Right Angle |
| Material - Resin | Polyamide |
| Temperature Range - Operating | -40° to +105°C |
