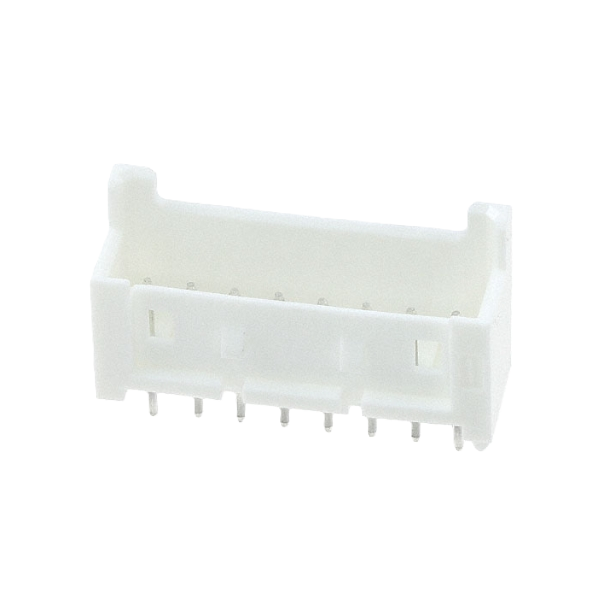

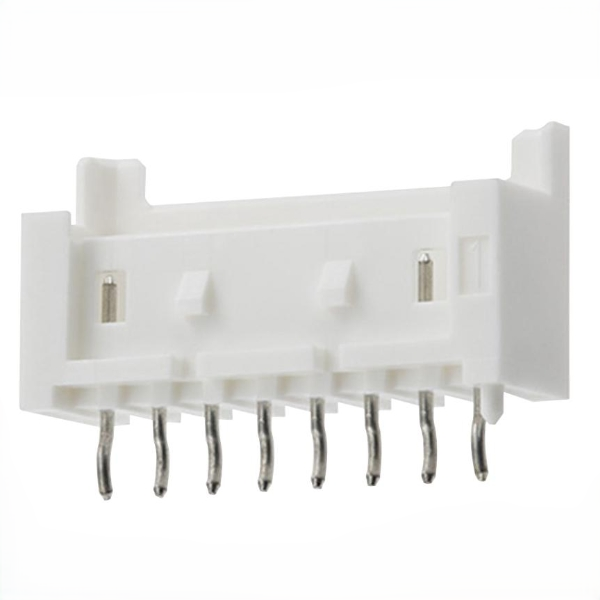

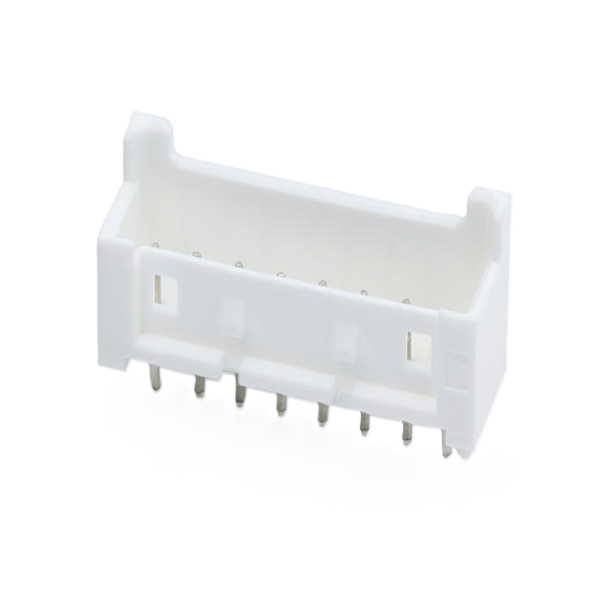

53375-0810 PCB Headers and Receptacles 2.50mm Pitch, Mini-Lock PCB Header MOLEX
Short Description:
Part Number: 53375-0810
Series Number: 53375
Product Family: Mini-Lock Connectors
Application：Signal, Wire-to-Board
Component Type：PCB Header
Product Name：Mini-Lock
Category ：PCB Headers and Receptacles
Description：2.50mm Pitch, Mini-Lock PCB Header, Single Row, Vertical, Through Hole with Kinked Pins
Product Detail
Product Tags
Part Number: 53375-0810
Product Family: Mini-Lock Connectors
Application：Signal, Wire-to-Board
Pitch:2.50mm
Current Rating :3.0A per contact
Voltage Rating :250V AC/DC
Termination Type:Through-hole (THT)
Row Configuration:Single-row
Polarization:Mini-Lock positive locking
Material:High-temperature thermoplastic
Plating:Tin (Sn)
Circuits:8 (8-position)
Temperature Range - Operating:-55° to +105°C
Packaging:10 units per bag
Data Overview
| Circuits (Loaded) | 8 |
| Circuits (maximum) | 8 |
| Color - Resin | Natural |
| Durability (mating cycles max) | 30 |
| Flammability | 94V-0 |
Contact Features
| Material - Plating Mating | Tin |
| Material - Resin | Polyester |
| Number of Rows | 1 |
| Termination Interface Style | Through Hole - Kinked Pin |
| Current - Maximum per Contact | 3.0A |
