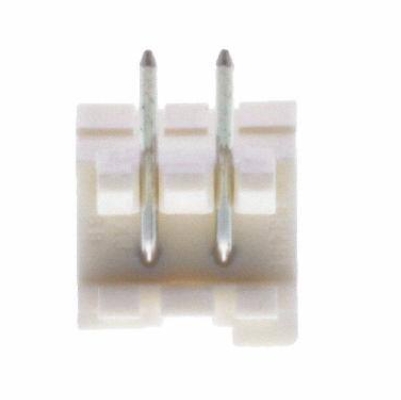

Molex 53426-0210 Mini-Lock PCB Header

Key Specifications

‌Pitch:‌ 2.50mm (0.098 inches), optimized for space-saving PCB designs with high circuit density.

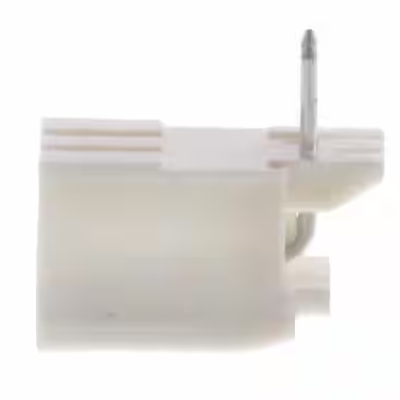

‌Orientation:‌ Single-row, right-angle configuration for flexible board mounting and easy integration into tight layouts.

‌Mounting Type:‌ Through-hole termination with kinked pins, ensuring stable solder connections for reliable electrical performance.

‌Contact Plating:‌ Tin plating over copper contacts for enhanced conductivity and corrosion resistance.

‌Circuit Count:‌ 2 circuits, supporting efficient signal transmission in compact applications.

‌PC Tail Length:‌ 3.40mm, providing consistent solder joint depth and PCB stability during assembly.

‌Housing Material:‌ Natural-colored polyester resin, offering durability and UL 94V-0 compliance for safety.

‌Packaging:‌ Supplied in trays to facilitate automated handling and production efficiency.

Enhanced Reliability:‌ Rated for up to 3A per contact and an operating temperature range of -40°C to +105°C, ensuring consistent performance under demanding conditions.

‌Durability:‌ Tin-plated contacts withstand multiple mating cycles, with a typical durability rating of 30 insertions for long-term use.
