6 pin Male sumitomo MT 090 waterproof auto wire harness connector 6187-6561
Short Description:
Model number：6187-6561
Brand：SUMITOMO
Type:electron component
Application:automotive
Unit price：Contact us for latest quotation
Product Detail
Product Tags
The 6187-6561 is a 6-pin male waterproof connector from Sumitomo's MT 090 series, engineered for automotive wire harness applications. Its sealed design ensures reliable performance in harsh environments like engines and chassis systems.
Technical Specifications
Series：MT 090
Positions：6 pins (male)
Sealing Rating ：IP67 waterproof standard
Material：PBT thermoplastic housing
Temperature Range：-40°C to +120°C
Certifications：RoHS, ISO 9001, IATF 16949
Contact Plating：Tin (corrosion-resistant)
Data Overview
| Sealed/Unsealed | sealed |
| Male/Female | Male |
| Way | 6 |
| Materials | PBT |
| Color | Natural |
Contact Features
| Contact resistance | Initial3mΩ Max.after durability tests10mΩ Max. |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| Seal | Initial49.0kPa Min.after durability tests29.4kPa Min. |
| Clamp | With clamp for 7mm die. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

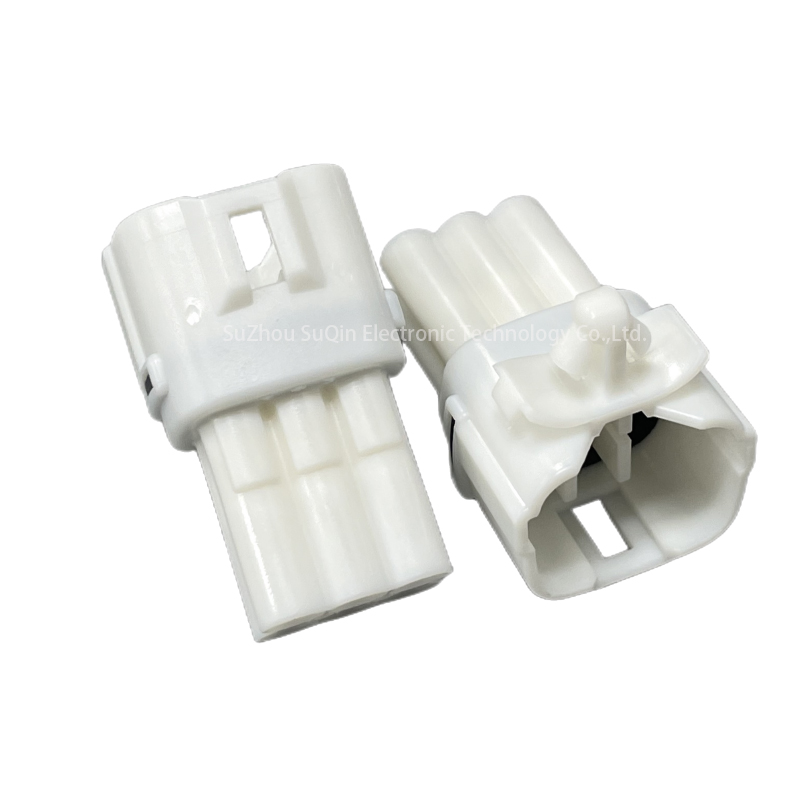

Product Display
