6 way car connectors air conditioning wire harness connector Accelerator Pedal connector 6189-7100
Short Description:
Model：6189-7100
Brand：SUMITOMO
Product name：Auto connector
Material：PBT/ pa66
Type：Waterproof
Gender:Female
Color:Black
Application:Automotive
Product Detail
VIDEO
Product Tags
Manufacturer：SUMITOMO
Model Number：6189-7100
Product Type：6-Way Waterproof Automotive Connector (Male Shell)
Color：Black
Key Features：Waterproof (IP67+), high-temperature resistant, PBT material, automotive-grade reliability.
Terminal Sizes ：0.64mm (14 pins) + 1.5mm (4 pins)
Total Pins：18
Mating Connector：6189-7101 (Female Shell)
Contact Resistance Initial: 8mΩ (max 16mΩ after durability)
Insulation Resistance：≥100MΩ
Sealing Pressure：Initial，50kPa (min 30kPa after durability)
Voltage Rating ：4.5V–9.5V
Current Rating Not specified (typical automotive: 5–10A per pin)
Operating Temperature：-30°C to +130°C
Material：PBT (Polybutylene Terephthalate)
Data Overview
| Way | 6 |
| Materials | PBT |
| Color | Black |
| Leak current | 50μA Max. |
| Insulation resistance | 100MΩ Min. |
Contact Features
| Male/Female | Female |
| Sealed/Unsealed | sealed |
| Type | Waterproof |
| Contact resistance | Initial8mΩ Max.after durability tests16mΩ Max. |
| Seal | Initial50kPa Min.after durability tests30kPa Min. |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

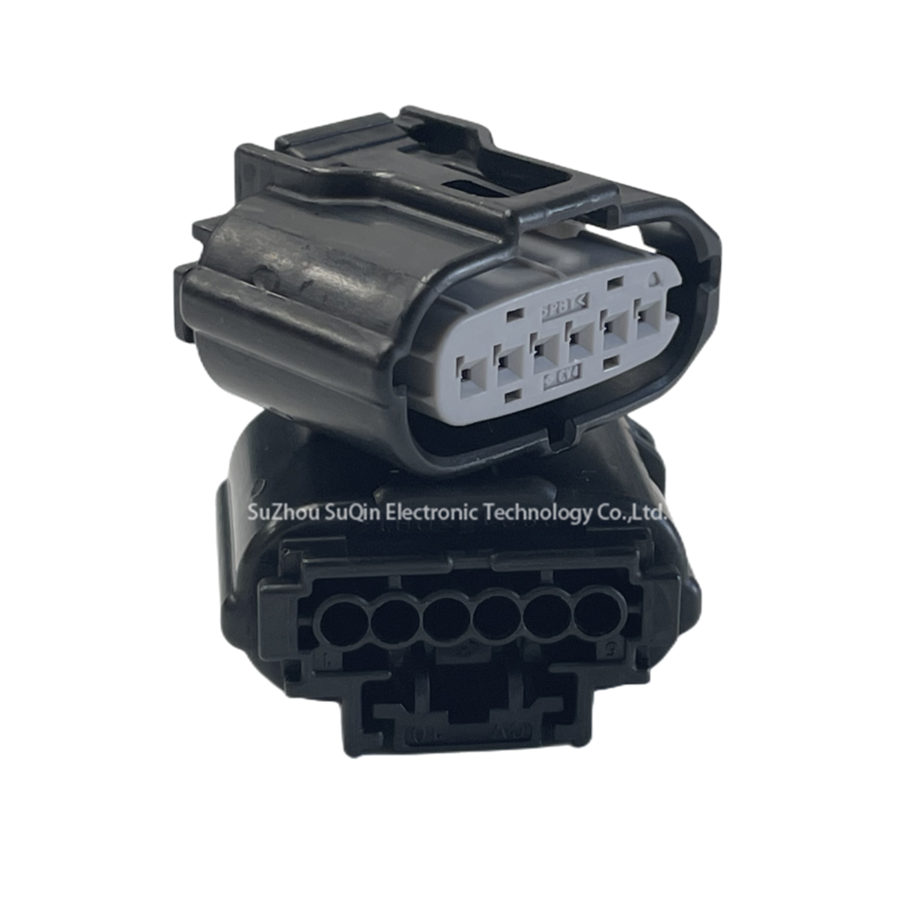

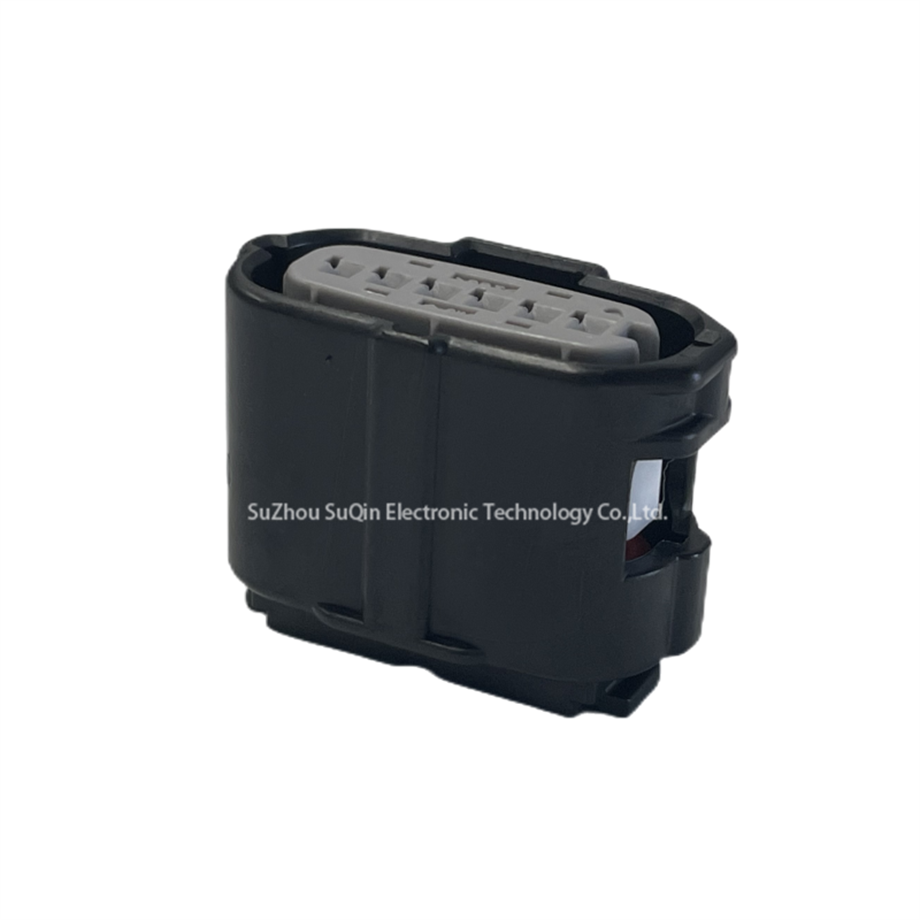

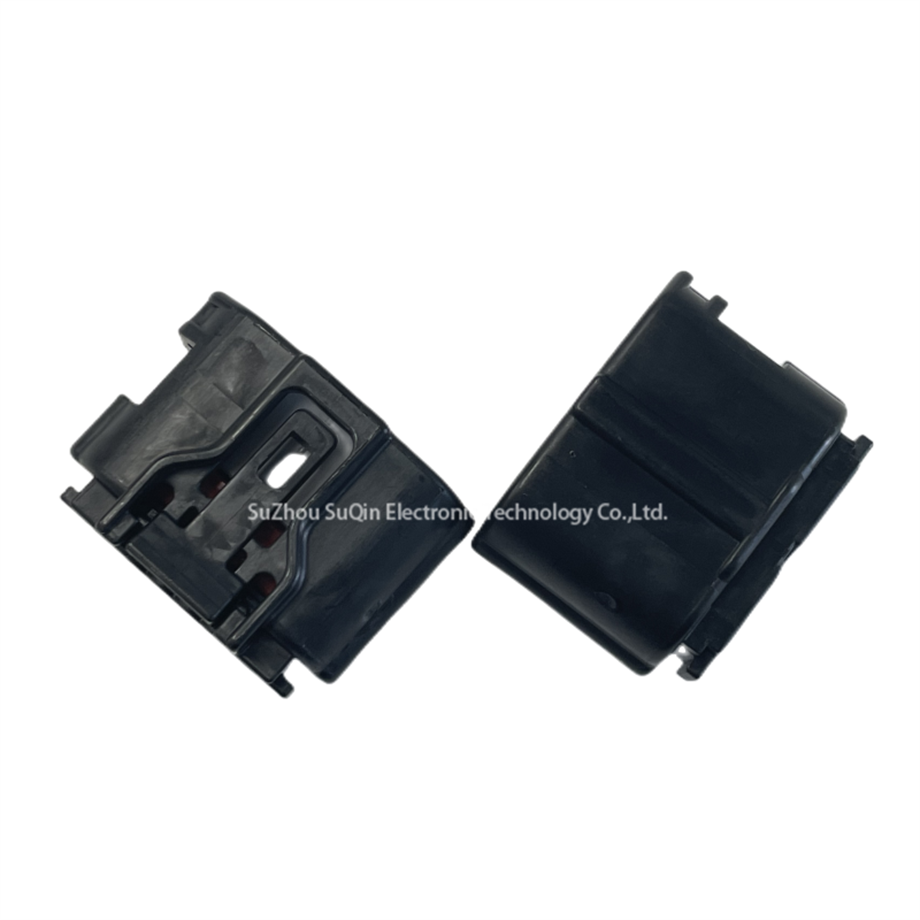

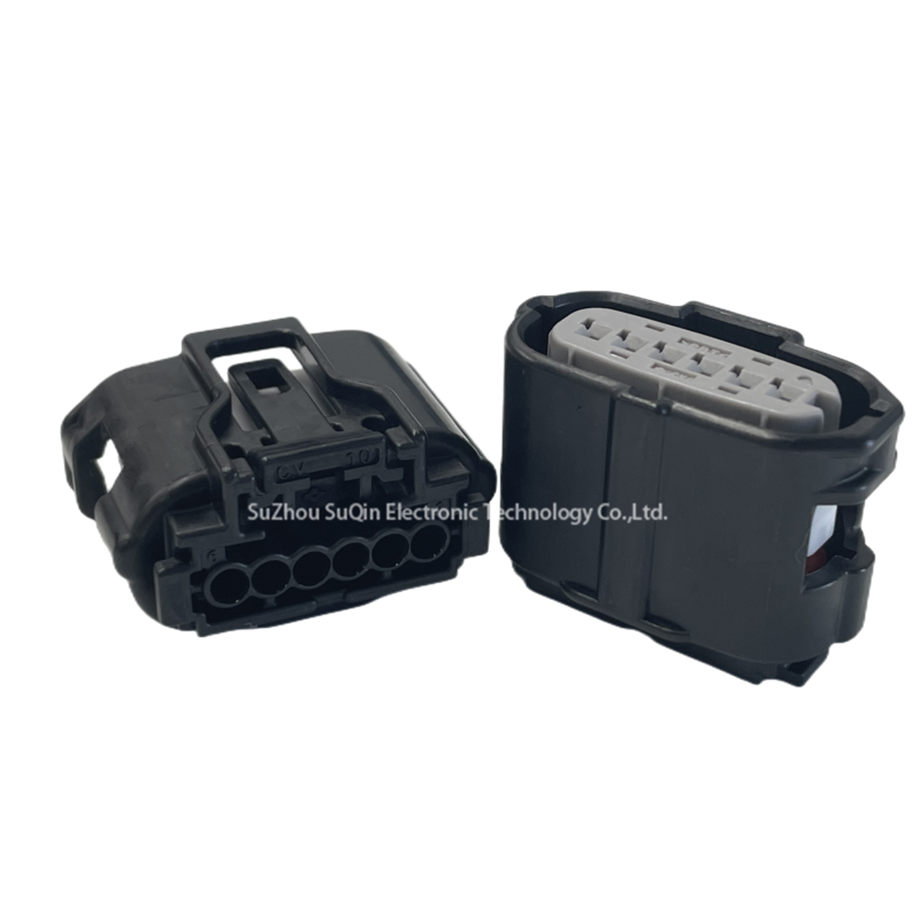

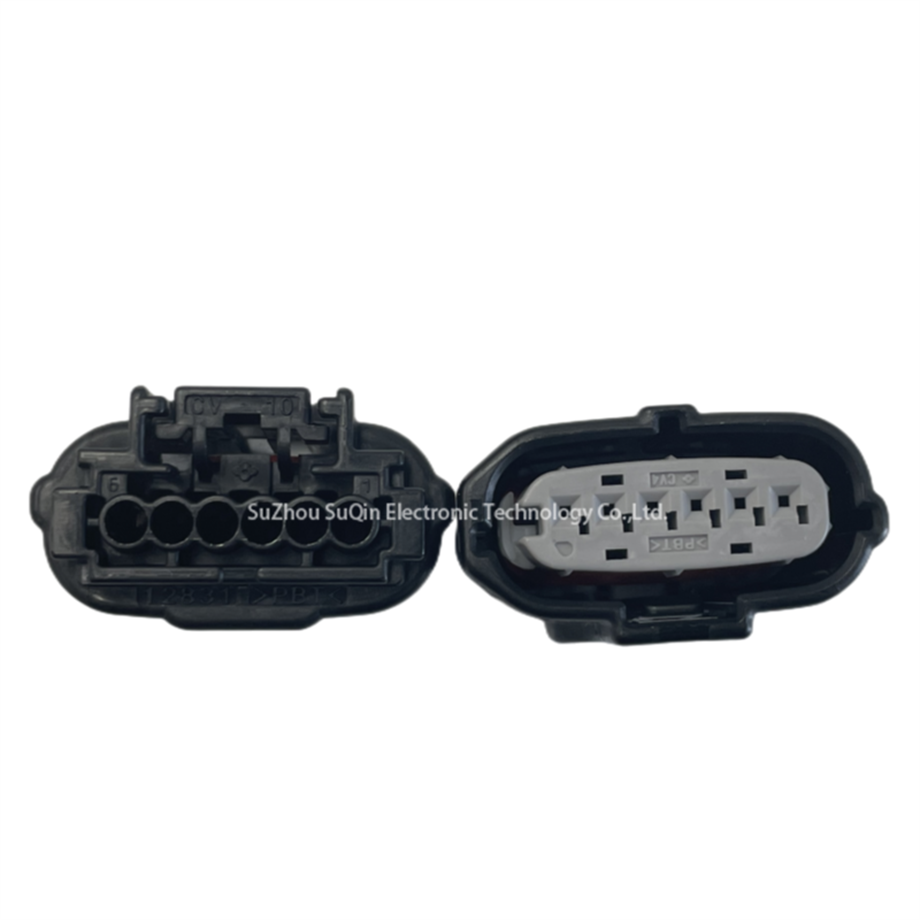

Product Display
