7-1452653-1 Receptacle Terminal 23 – 22 AWG TE
Short Description:
Receptacle Terminal, 23 – 22 AWG, .25 – .35 mm² Wire, 1.2 mm [.047 in] Tab Width, Tin (Sn), .6 mm [.024 in] Tab Thickness, MCON 1.2mm
Product Detail
Product Tags
Tin-plated copper alloy female terminal for automotive/consumer electronics connectors, rated for 60V and -40°C to +125°C, compatible with 23–22 AWG wire (0.25–0.35mm²) and paired with male blade terminals, ensuring vibration-resistant, precision connections compliant with USCAR-2, ISO 8092, and RoHS/REACH standards.
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 23 – 22 |
| Wire Size (mm²) | .25 – .35 |
| Mating Tab Width | 1.2 mm [ .047 in ] |
| Interface Plating | Tin (Sn) |
Contact Features
| Receptacle Style | 180° |
| Primary Locking Feature | Locking Lance |
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Mating Tab Thickness | .6 mm [ .024 in ] |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

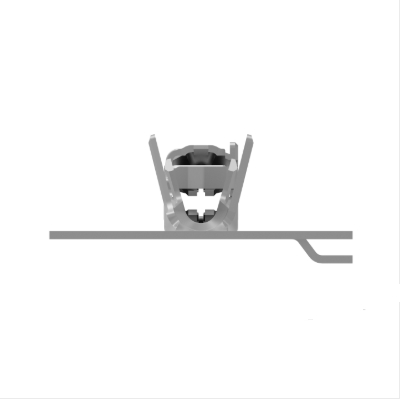

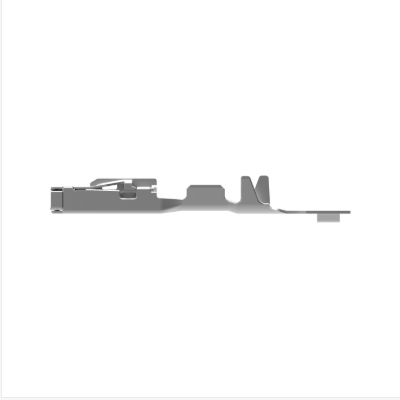

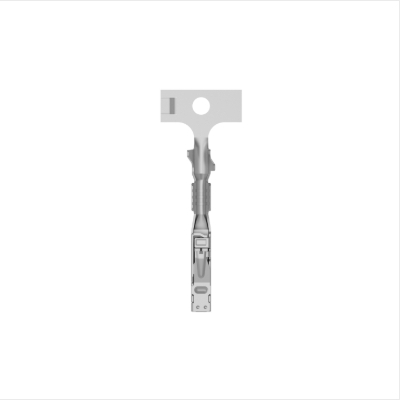

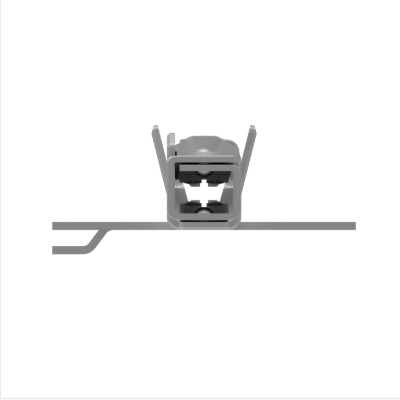

Product Display
