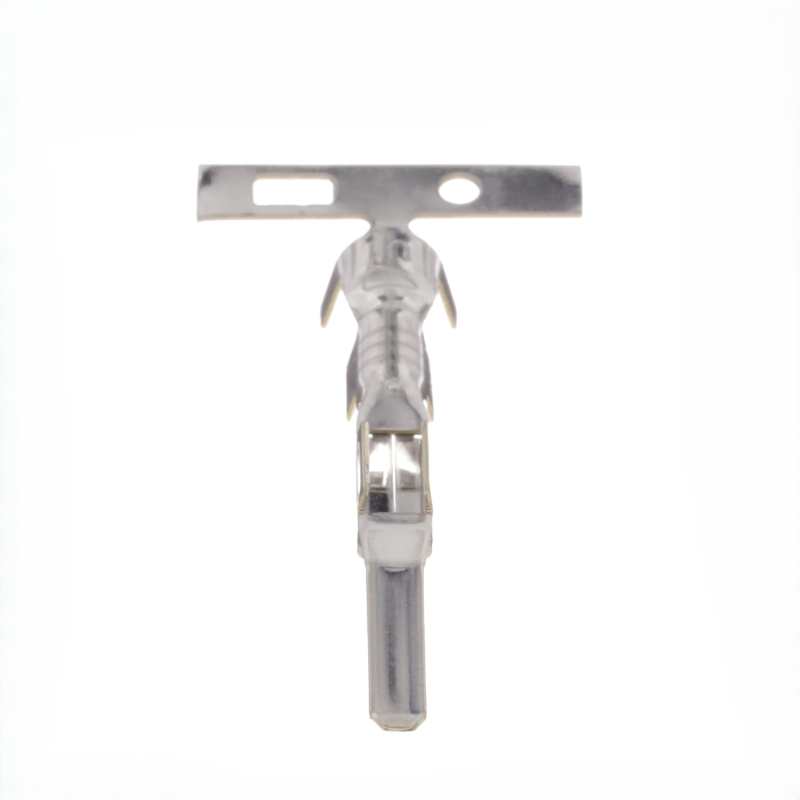

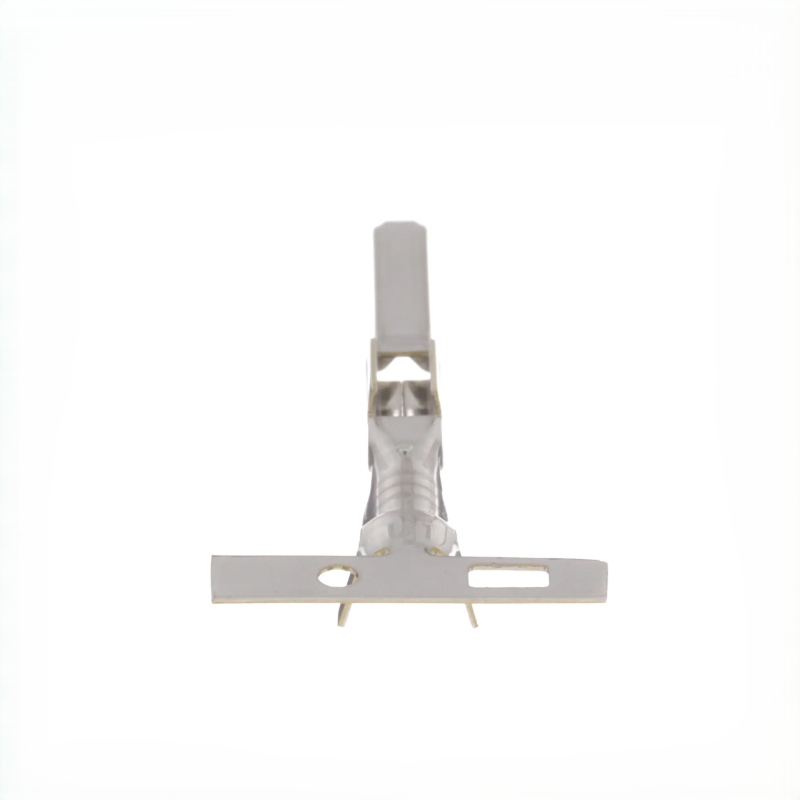

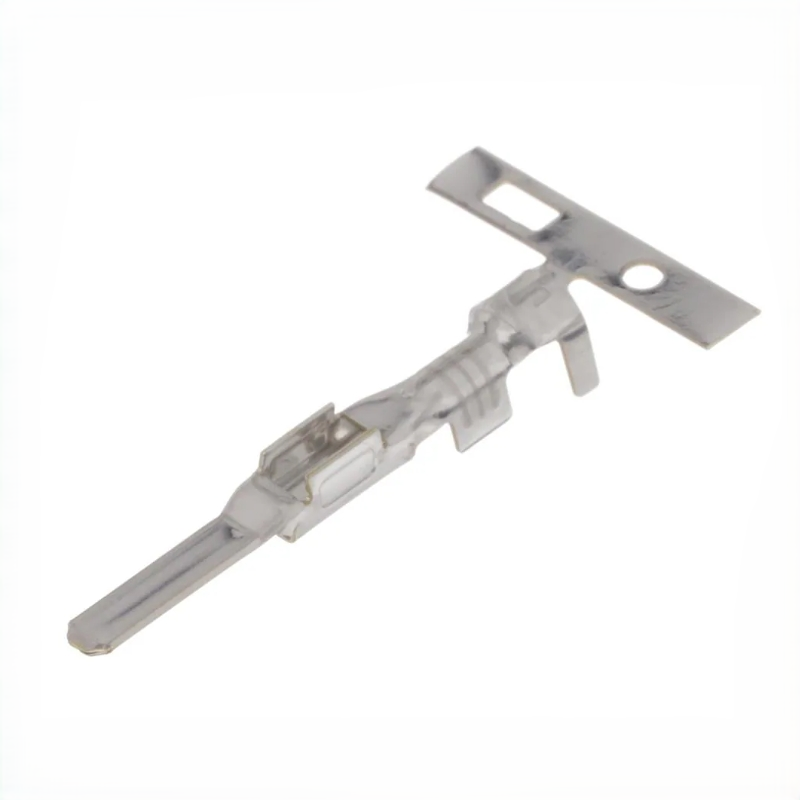

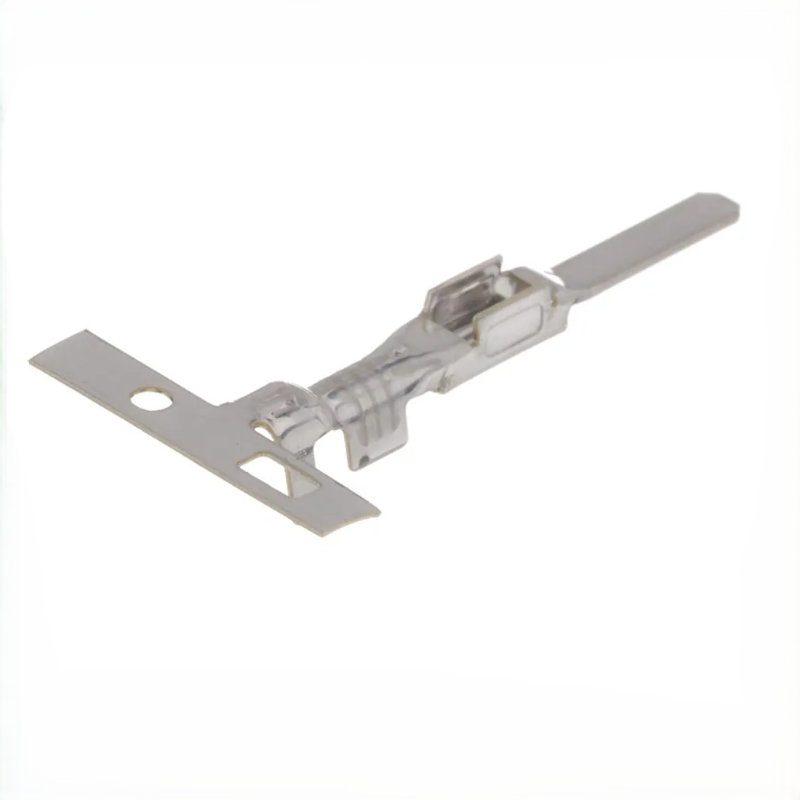

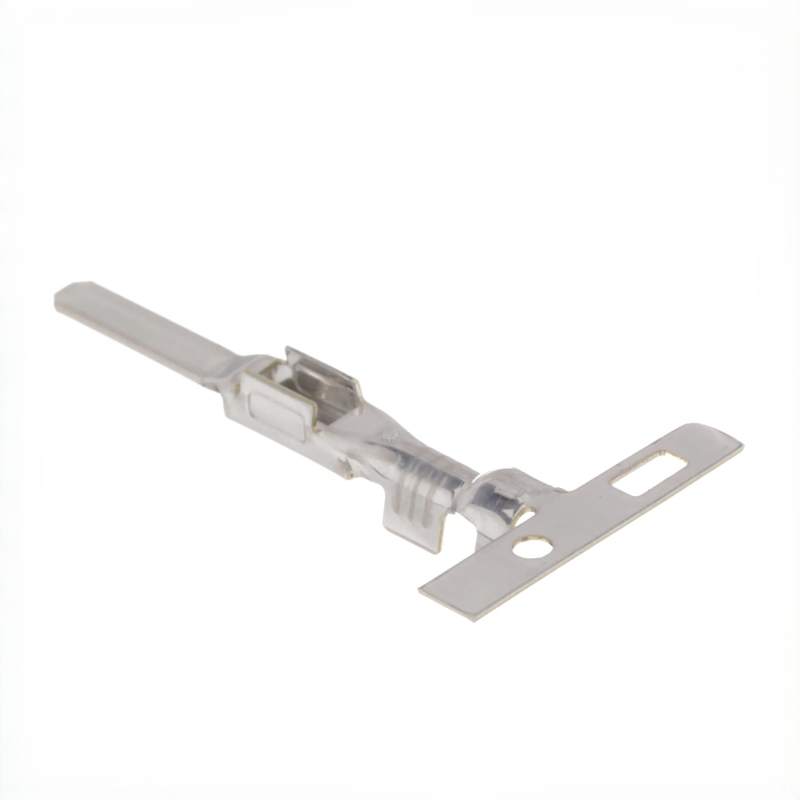

7114-4026 Conectores Terminal/2.3II(090II) Connector Terminal Male Yazaki
Short Description:
Manufacturer: YAZAKI
Part Number: 7114-4026
Series: 2.3II(090II) Connectors
Type: Terminal Male
Connection Type: Wire to Wire
Sealing Type: Sealed
Product Detail
Product Tags
Manufacturer: YAZAKI Corporation
Part Number: 7114-4026
Series: 2.3II(090II) Connectors
Type: Terminal Male
Connection Type: Wire to Wire
Sealing Type: Sealed
Environmental Compliance: ELV, RoHS compliant
Current Rating (Reference):15A
Contact Resistance :≤10mΩ (Initial)
Insulation Resistance:≥20MΩ @500V DC
Dielectric Withstanding Voltage:1000V AC (1 minute)
Voltage Rating :1.5V-9.5V
Minimum Power Voltage:1V
Maximum Power Voltage:8V
Contact Material:Brass with Tin Plating
Tab Width:2.3mm (0.090 inches)
Number of Poles:2
Operating Temperature:-40°C to +100°C
Flammability Rating:UL 94 V-0
Environmental Protection:Sealed design
Data Overview
| Classified Parts | Terminal |
| Family | 2.3II(090II) Connector |
| Unsealed/Seald | Sealed |
| Tab size (mm) | 2.30 |
| Male/Female | Male |
Contact Features
| Materials | COPPER ALLOY |
| Plating | Tin Plating |
| Allowable Current(Ref.) | 10A(Ref) |
| Withstand voltage | 1000V AC (1min.) |
| Temperature Range | -40 to 120deg.C |
