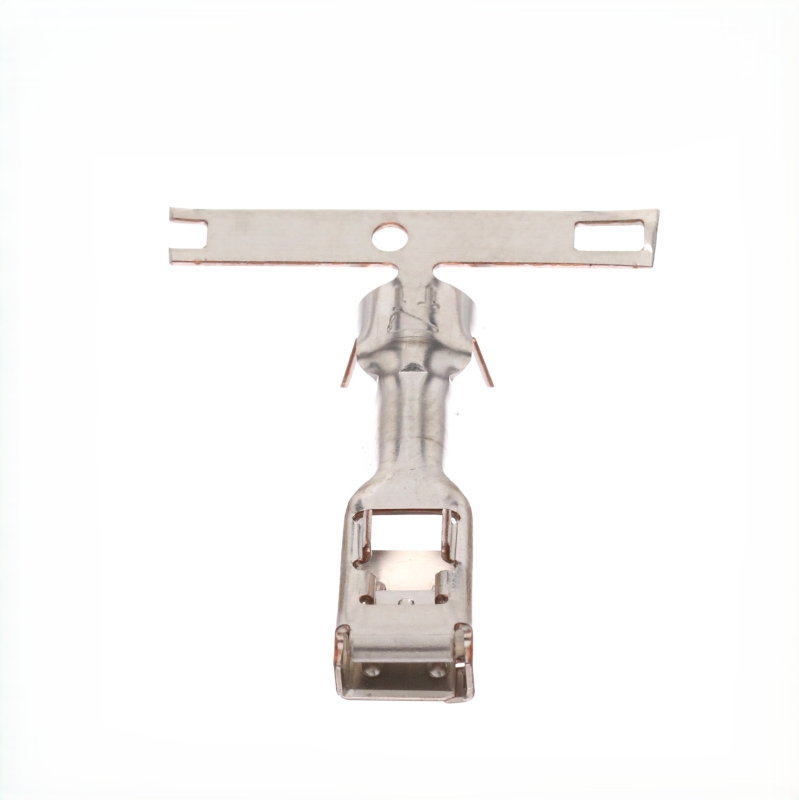

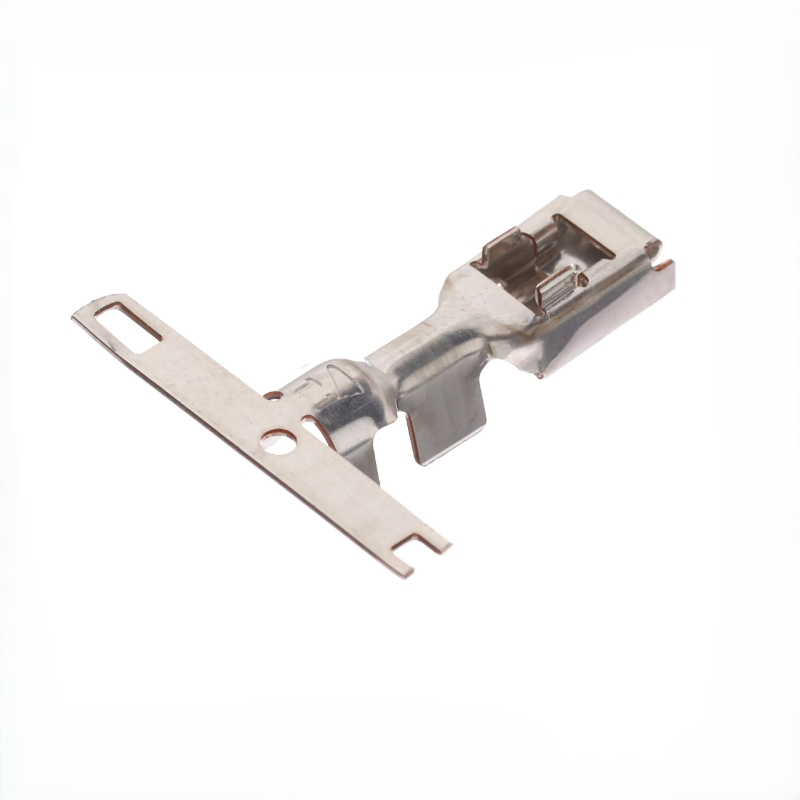

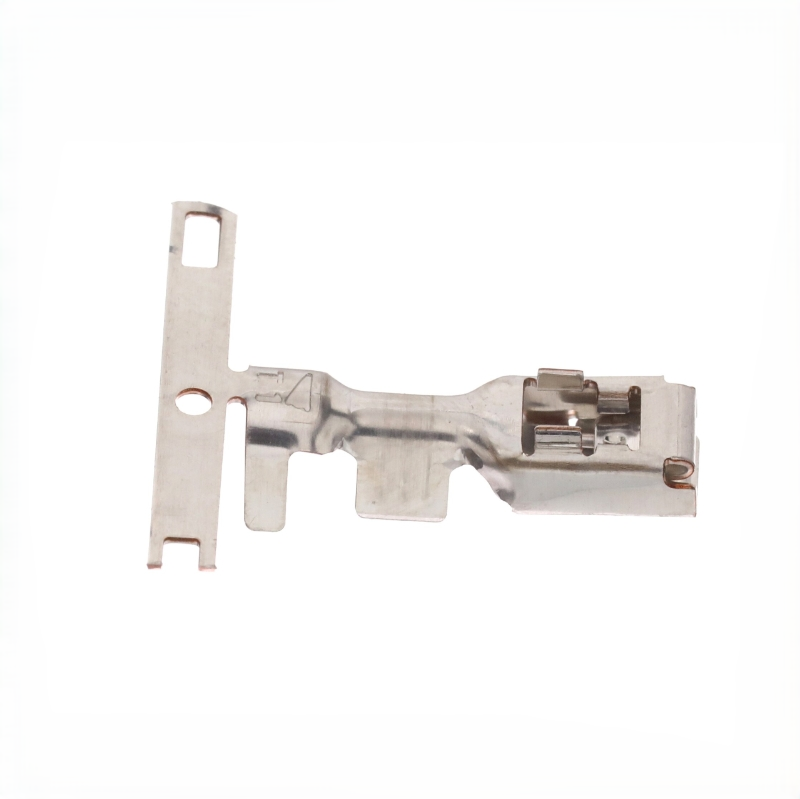

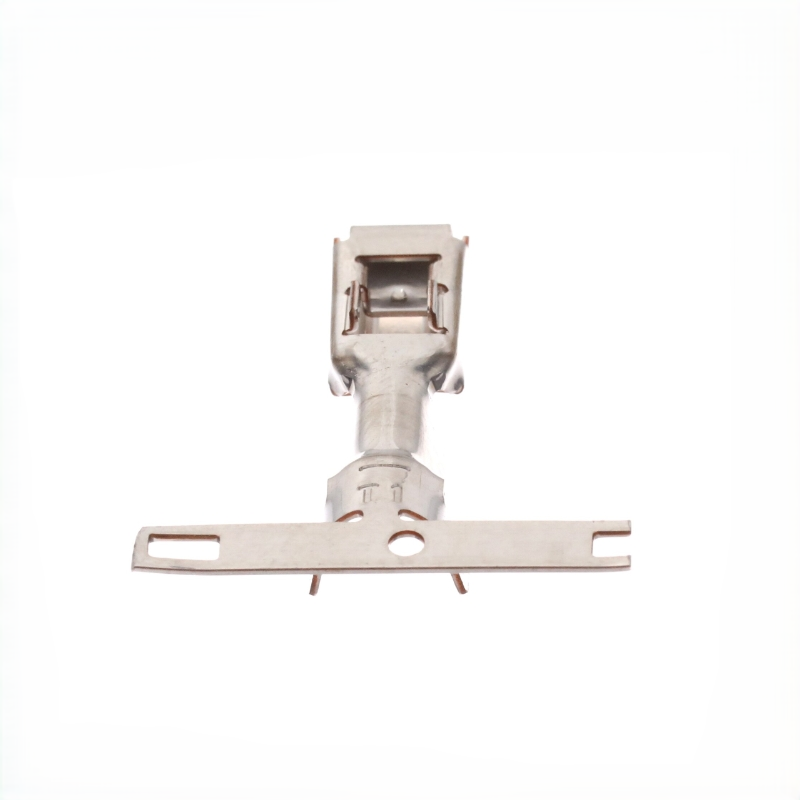

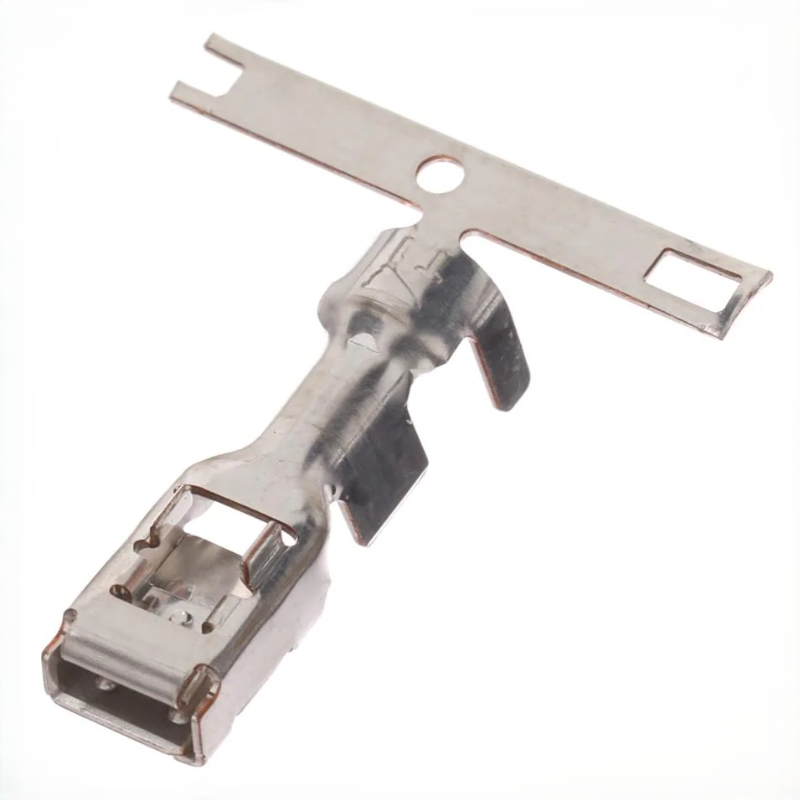

7116-4037 Automotive Connectors/4.8(187) Connector Terminal Female YAZAKI
Short Description:
Manufacturer:Yazaki
Part Number:7116-4037
Product Category: Automotive Connectors
Product:Terminals
Gender:Socket (Female)
Termination Style: Crimp
Contact Plating:Tin
Packaging: Cut Tape
Product Detail
Product Tags
YAZAKI 7116-4037 Automotive Connector
Series: 4.8(187) Connector System
Terminal Type: Female (FEM)
Pitch: 4.8mm (0.187")
Wire Range: 0.3-3.0mm²
Current Rating: 28.5A (reference value)
Material: Copper alloy with tin plating
Operating Temperature: -40°C to +120°C
Contact Resistance ：≤3mΩ (initial)
Insulation Resistance：≥100MΩ @500VDC
Withstand Voltage：AC1000V for 1 minute
Dimensions：19.5x6.0x3.8mm
Mating Cycles：50+ (industry standard)
Data Overview
| Classified Parts | Terminal |
| Tab size (mm) | 4.80 |
| Allowable Current(Ref.) | 28.5A |
| Withstand voltage | 1000V AC (1min.) |
| Termination Style | Crimp |
Contact Features
| Family | 4.8(187) Connectors |
| Unsealed/Seald | Sealed |
| Male/Female | Female |
| Materials | COPPER ALLOY |
| Plating | Tin Plating |
