7283-5691-10 Connector Housing YES/YESC Kaizen Connector 1.5X0.8 3P Female Yazaki
Short Description:
Yazaki Part Number:7283-5691-10
Brand:Yazaki
Classified Parts:HousingCircuits:3 (Female)
Pitch:1.5X0.8mm
Material:HPA (High-Performance Alloy)

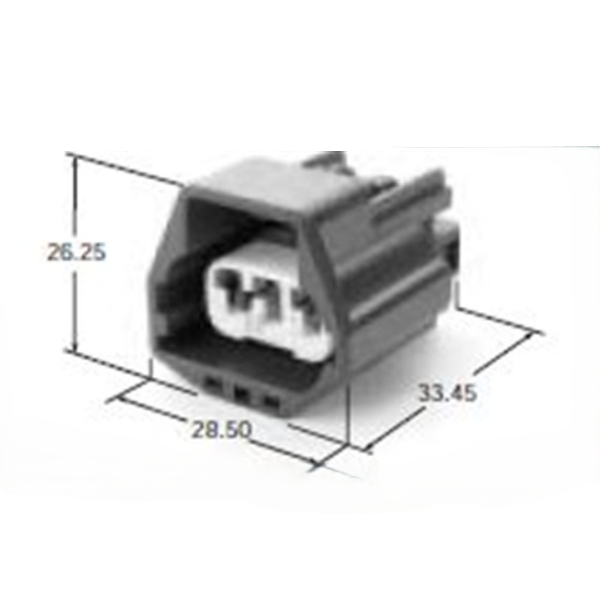

Dimensions:33.50mm (L) × 28.50mm (W) × 26.30mm (H)
Color:Dark Gray
Withstand voltage:1000V AC (1min.)
Product Detail
Product Tags
Yazaki Part Number:7283-5691-10
Brand:Yazaki
Connection Type: Wire-to-wire
Gender: Female
Number of Poles: 3
Terminal Size: 1.50mm width
Material: HPA (high-performance plastic)
Dimensions: 33.50mm (L) × 28.50mm (W) × 26.30mm (H)
Color: Dark gray
Current Rating: 15A
Temperature Range: -40°C to +100°C
Insulation Resistance: 20MΩ min. (at 500VDC)
Withstand Voltage: AC1000V (1 minute)
Compliance: ELV, RoHS standards
Data Overview
| Classified Parts | Housing |
| Family | YES/YESC Kaizen Connector 1.5X0.8 |
| Number of Poles | 3 |
| Tab size (mm) | 1.50 |
| Allowable Current(Ref.) | 15A(Ref) |
Contact Features
| Connection Type | Wire Harness Connector |
| Unsealed/Seald | Sealed |
| Male/Female | Female |
| Materials | HPA |
| Color | DARK GRAY |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

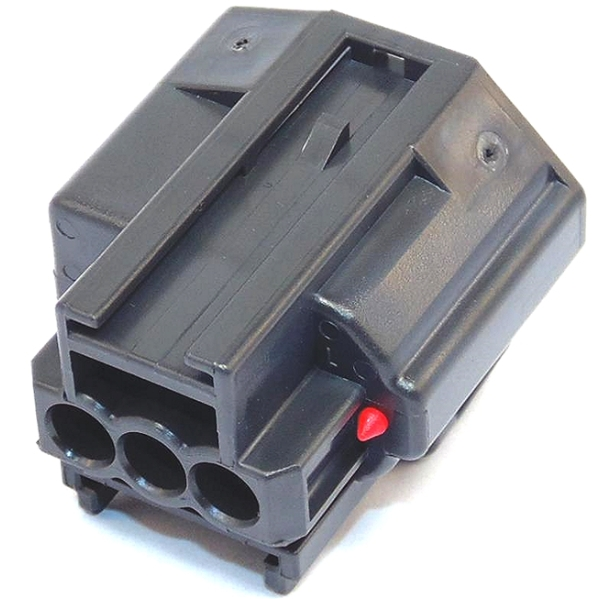

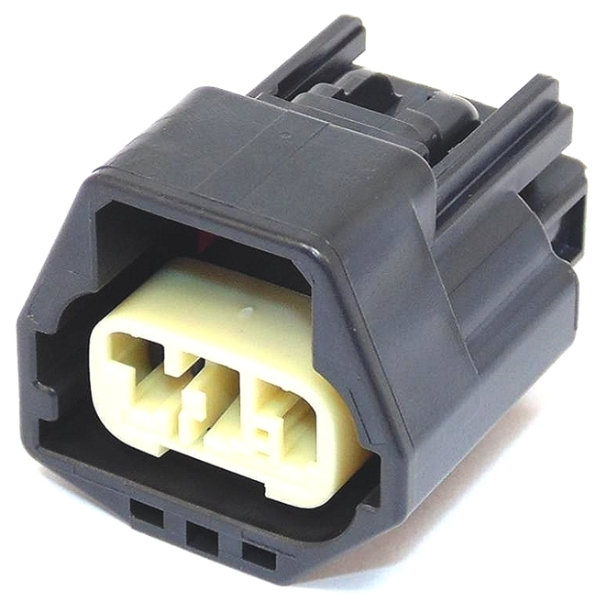

Product Display
