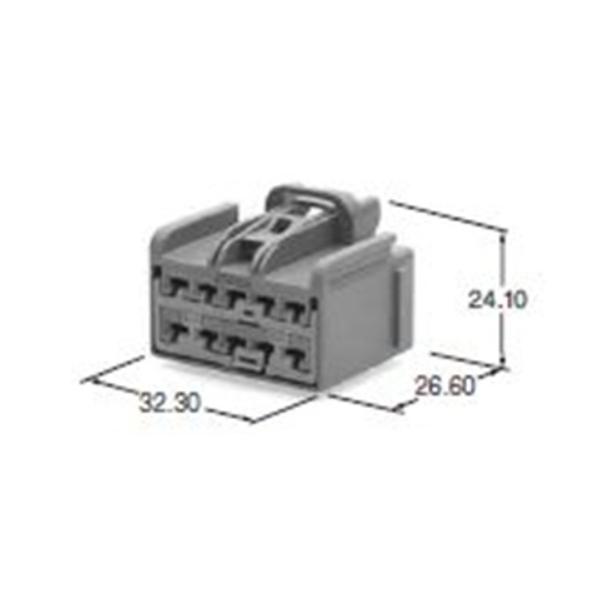

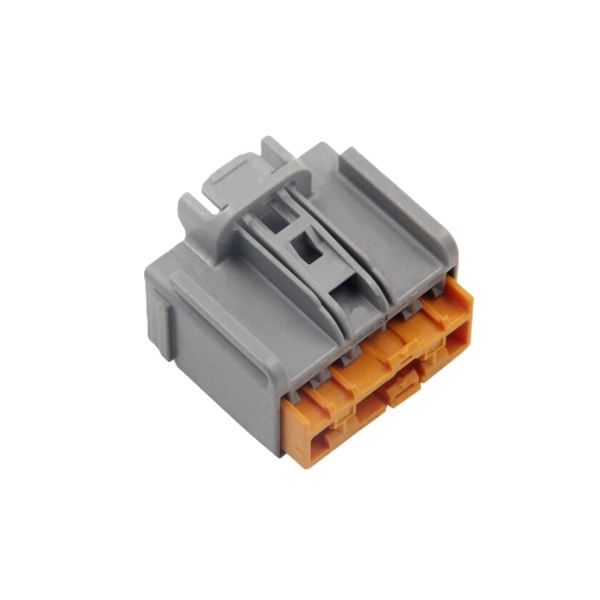

7283-6457-40 AUTOMOTIVE CONNECTORS YES/YESC Kaizen Connector 2.8X0.8 10P Female Yazaki

Short Description:

Yazaki Part Number:7283-6457-40
Classified Parts:Housing
Family:YES/YESC Kaizen Connector 2.8X0.8
Connection Type:Wire Harness Connector
Male/Female:Female
Tab size (mm):2.80

Send email to us

Product Detail

Product Tags

Yazaki Part Number:7283-6457-40

Family:YES/YESC Kaizen Connector 2.8X0.8

Connection Type:Wire Harness Connector

Connector Type‌:Female (Housing)

‌Pitch‌:2.8mm (0.11")

‌Tab Size‌:2.8x0.8mm

‌Material‌:Heat-resistant nylon

‌Plating‌:Tin (Sn)

‌Color‌:Light gray

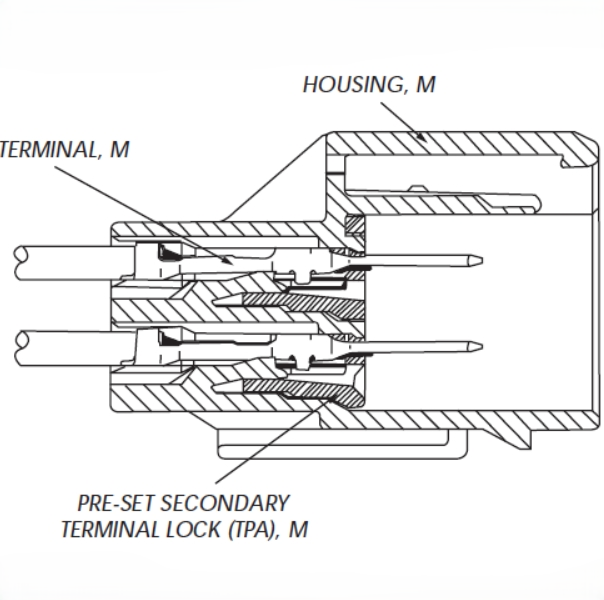

‌Mating Part‌:7282-6457-40 (Male Terminal)

‌Current Rating‌:30A (Reference)

‌Voltage Rating‌:1000V AC (1 min.)

‌Insulation Resistance‌:20MΩ min. (500VDC)

‌Temperature Range‌:-40°C to +100°C

Data Overview

Family:	YES/YESC Kaizen Connector 2.8X0.8
Number of Poles	10
Tab size (mm)	2.80
Materials	PBT
Allowable Current(Ref.)	20A(Ref)

Contact Features

Classified Parts	Housing
Connection Type	Wire Harness Connector
Unsealed/Seald	Unsealed
Male/Female	Female
Temperature Range	-40 to 100deg.C
