7283-6466-40 Automotive Connector (YES/YESC Kaizen Connector 2.8X0.8 6P Female) Yazaki
Short Description:
Product Category: Automotive Connectors
Brand:Yazaki
Product:Housings
Number of Positions:6 Position
Gender:Receptacle (Female)
Mounting Style:Cable Mount / Free Hanging
Termination Style: Crimp
Color:Gray (Light Gray)
Series:YESC Kaizen
Application:Wire-to-Wire
Housing Material:Polybutylene Terephthalate (PBT)
Number of Rows:2 Row
Product Detail
Product Tags
Manufacturer：Yazaki Corporation
Series：YES/YESC Kaizen Connector Series
Part Number：7283-6466-40
Gender：Female
Connection Type：Wire-to-Wire
Sealing Type：Non-waterproof
Number of Poles：6
Terminal Size (mm)：2.80 (Width) × 0.8 (Thickness)
Material：PBT (Polybutylene Terephthalate)
Color：Light Gray
Current Rating ：20A (Reference Value)
Low-Level Contact Resistance：≤10mΩ (Initial Value)
Insulation Resistance：≥20MΩ (at 500VDC)
Withstanding Voltage：1000V AC (1 minute)
Operating Temperature：-40°C to +100°C

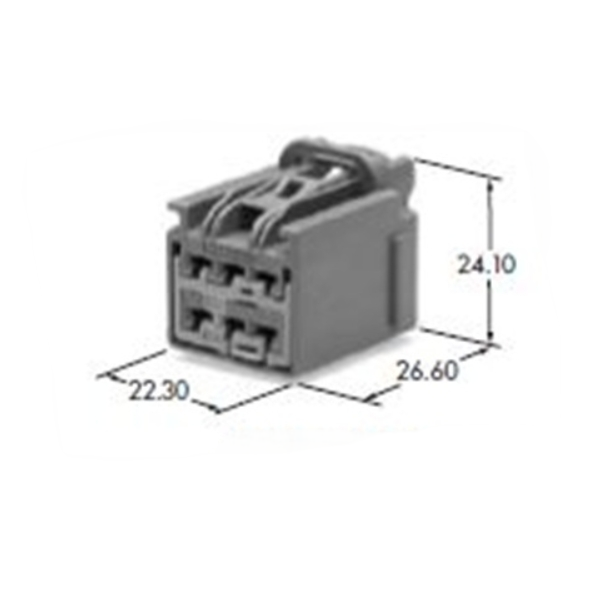

Physical Dimensions：Length: 31.30mm, Width: 22.30mm, Height: 24.10mm
Environmental Compliance：ELV (End-of-Life Vehicles Directive), RoHS (Restriction of Hazardous Substances)
Applications：Automotive electrical systems, medium-current applications
Data Overview
| Classified Parts | Housing |
| Tab size (mm) | 2.80 |
| Unsealed/Seald | Unsealed |
| Number of Poles | 6 |
| Allowable Current(Ref.) | 20A(Ref) |
Contact Features
| Family | YES/YESC Kaizen Connector 2.8X0.8 |
| Connection Type | Wire Harness Connector |
| Male/Female | Female |
| Materials | PBT |
| Color | LIGHT GRAY |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

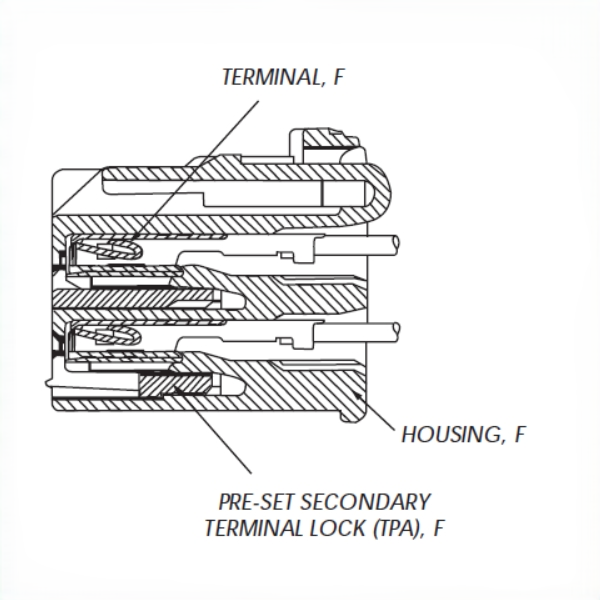

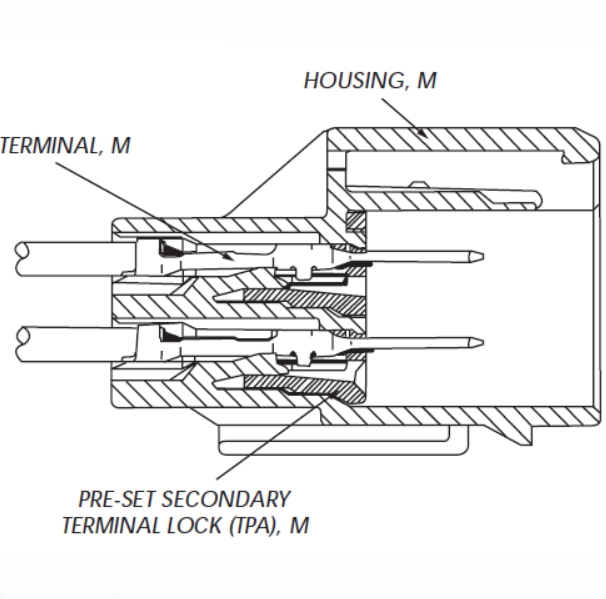

Product Display
