953119-1 Automotive Housing for Female Terminals,20 Position TE
Short Description:
20 Position
Automotive Housing for Female Terminals
Wire-to-Wire
2.54 mm [.1 in] Centerline
Green
Wire & Cable
Cable Mount (Free-Hanging)
Product Detail
Product Tags
TE Connectivity/AMP 953119-1: 20-Position Automotive Connector Housing
Product Type: Sealed Automotive Electrical Connector Housing
Position Count: 20
Terminal Compatibility: Female Receptacle Terminals (e.g., TE 0.64/1.5mm Series)
Material: High-temperature thermoplastic (UL 94V-0 rated)
Sealing: IP67-rated seals protect against dust, moisture, and fluids.
Temperature Range: -40°C to +125°C (-40°F to +257°F).
Locking Mechanism: CPA (Connector Position Assurance) and TPA (Terminal Position Assurance) features prevent unintended disconnects.
Polarization: Keyed slots ensure correct mating orientation.
Vibration Resistance: Engineered for automotive vibration environments.
Wire Range: Compatible with 20–24 AWG terminals.
USCAR-compliant for automotive electrical standards.
RoHS and REACH compliant.
Data Overview
| Connector & Housing Type | Housing for Female Terminals |
| Number of Positions | 20 |
| Sealable | No |
| Operating Temperature Range | -40 – 100 °C [ -40 – 212 °F ] |
| Number of Rows | 2 |
Contact Features
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

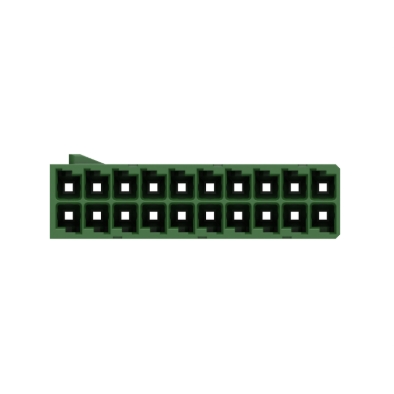

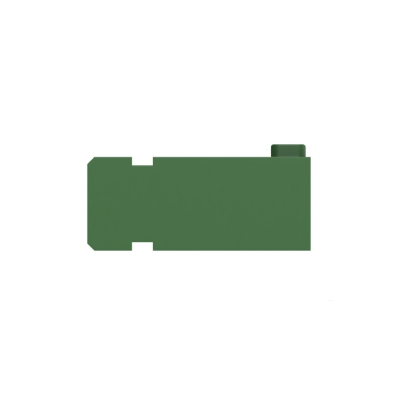

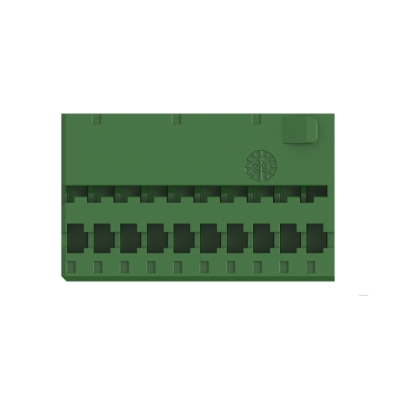

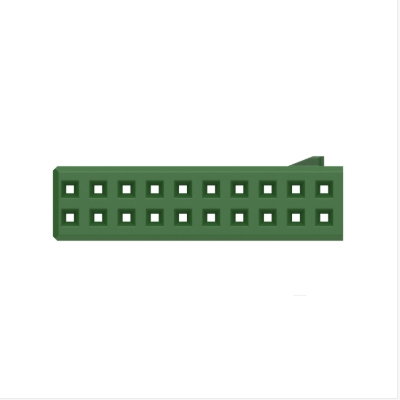

Product Display
