Amphenol AT04-08PA-MM01：Male Cable Connector 8pol A-Key, End Cap Reduced Dia. Seal
Short Description:
Male Cable Connector 8pol A-Key, End Cap Reduced Dia. Seal
number of positions (w/o PE)：8
gender：male
rated current (40 °C)：13 A
IP-class mated：IP67
Product Detail
Product Tags

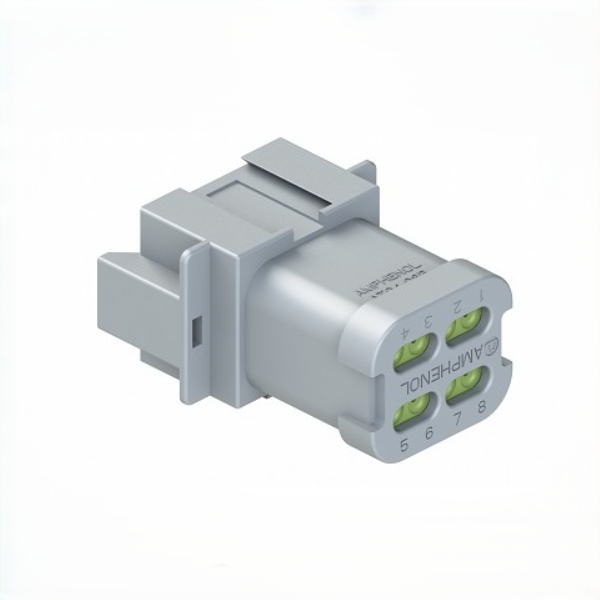

Amphenol AT04-08PA-MM01 is a high-performance 8-position male cable connector designed for automotive and industrial applications.
Type: Male cable connector (receptacle housing with male pins)

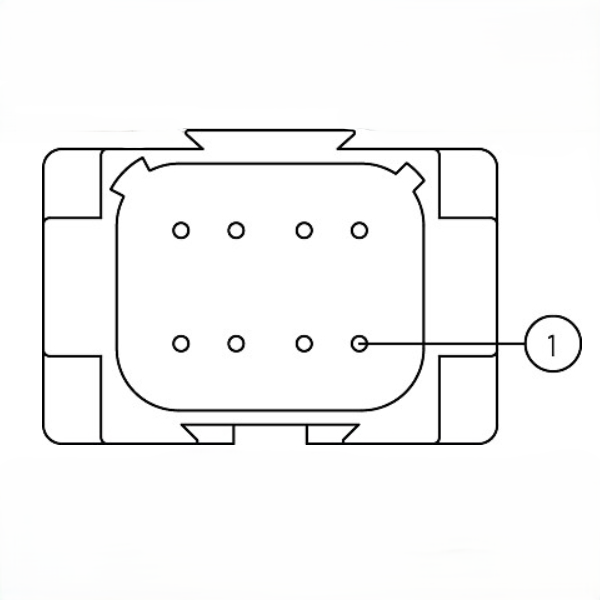

Positions: 8-pin (2 rows)
Keying: A-position key for anti-mismating
Wire Gauge: Compatible with 20 AWG to 14 AWG wires
Current Rating: 13A maximum
Termination: Crimp contacts (sold separately)
Sealing: Reduced-diameter end cap seal for dust/moisture resistance
Housing Color: Gray thermoplastic
Fastening: Latch lock mechanism for vibration resistance
Temperature Range: -55°C to +125°C
Dielectric Withstanding Voltage: 1,500V AC
Insulation Resistance: 1,000 MΩ minimum
Data Overview
| Product Type: | Receptacle |
| No. of Positions | 8-Way A Position Key |
| Contact Size | 16 |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| Amperage | 13A |
Contact Features
| Contact Type | Pin |
| Color | Grey |
| End Cap/Rear Seal Dimensions | .053" - .120" |
| upper temperature | 125 GC |
| lower temperature | -55 GC |
