Amphenol AT04-6P-EC01BLK 6-Way Male Receptacle | 13A IP67 Rated with End Cap
Short Description:
| Manufacturer | Amphenol |
| Product Model | AT04-6P-EC01BLK |
| Connector Type | Receptacle (Plug) |
| Gender | Male |
| Number of Positions | 6 |
| Contact Type | Pin |
Product Detail
Product Tags

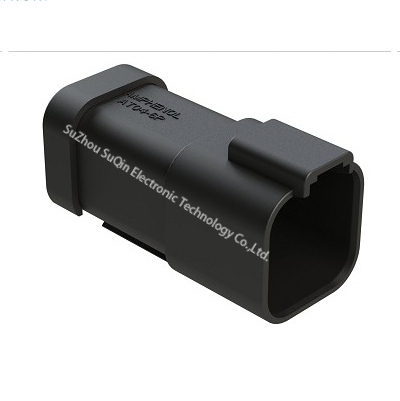

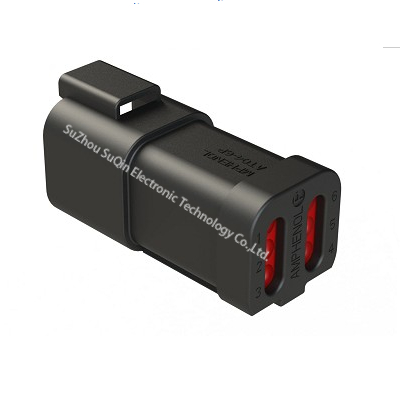

Amphenol AT04-6P-EC01BLK is a 6-position male pin receptacle in black. Rated at 13A, this durable connector features a protective end cap for secure terminations. Ideal for power and signal distribution in automotive and industrial environments.
Product Detail
Feature: The Amphenol AT04-6P-EC01BLK is a 6-way male receptacle (plug) featuring pin contacts for size #16 wires. It comes complete with a protective end cap and is constructed from a high-strength, black thermoplastic housing.
Advantage: The male pin design ensures safe and reliable mating with corresponding female sockets, while the included end cap provides superior protection for the contacts against physical damage, dust, and moisture before and during installation. The robust housing offers excellent resistance to impact, vibration, and harsh environmental conditions.
Benefit: This receptacle delivers a secure and long-lasting connection for power and signal circuits, significantly reducing the risk of installation damage and premature failure. This translates to enhanced system reliability, lower maintenance costs, and streamlined assembly in demanding applications like vehicle wiring, machinery controls, and power distribution panels.
Contact Features
| Specification Category | Detail |
|---|---|
| Manufacturer | Amphenol |
| Product Model | AT04-6P-EC01BLK |
| Connector Type | Receptacle (Plug) |
| Gender | Male |
| Number of Positions | 6 |
| Contact Type | Pin |
| Contact Size | 16 AWG |
| Current Rating | 13 A |
| Voltage Rating | 250 V |
| Housing Color | Black |
| Contacts Included | No |
| Accessories Included | Yes, End Cap |
| Housing Material | Thermoplastic (UL94 V-0 Rated) |
| Sealing Rating | IP67 (When fully mated with sealed header) |
| Operating Temperature | -55°C to +125°C |
| Primary Applications | Automotive Wiring, Industrial Control Systems, Power Distribution, Heavy Equipment |
