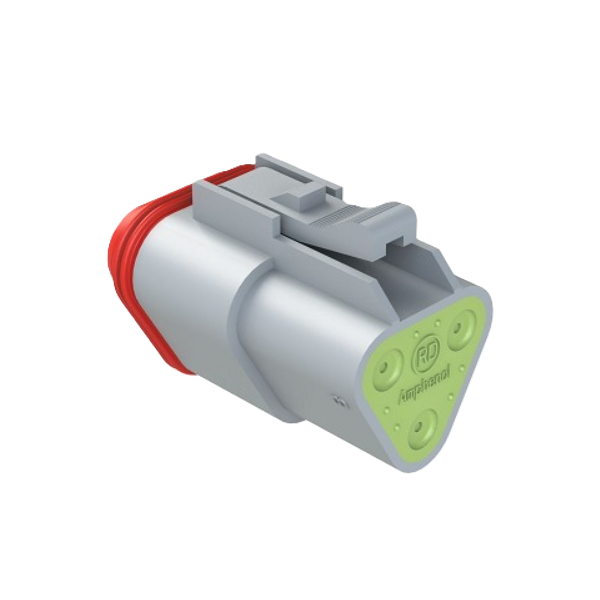

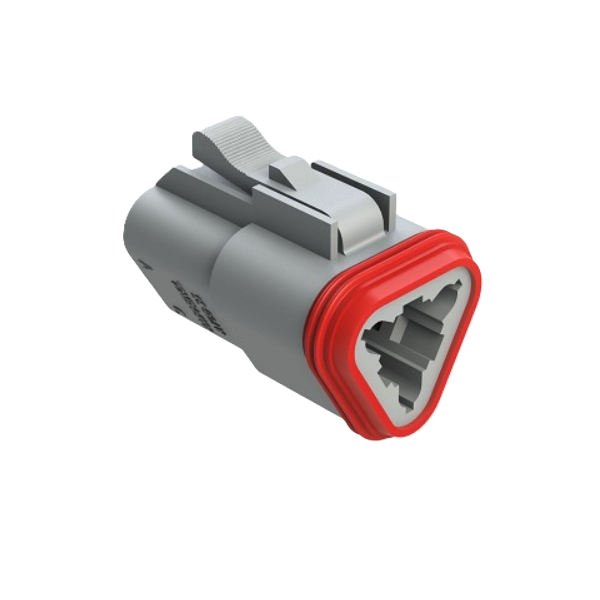

Amphenol AT06-3S-RD01:3-Way Plug, Female, Reduced Diameter Seal (E-Seal)
Short Description:
Manufacturer: Amphenol
PART NUMBER: AT06-3S-RD01
Product Type: Automotive connectors
Positioning number:3 Position
gender:Plug (RP – Female)
Installation style:Cable Mount / Free Hanging
Minimum wire gauge:20 AWG
Maximum wire gauge:14 AWG
color:Gray
Product Detail
Product Tags
PART NUMBER: AT06-3S-RD01
Manufacturer: Amphenol
Installation style:Cable Mount / Free Hanging
No. of Positions: 3
Contact Size: 16
Amperage: 13A
Contact Type (Pin/Socket): Socket
Gender: Female
Wire Range: 14-20 AWG (2.0-0.5mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V

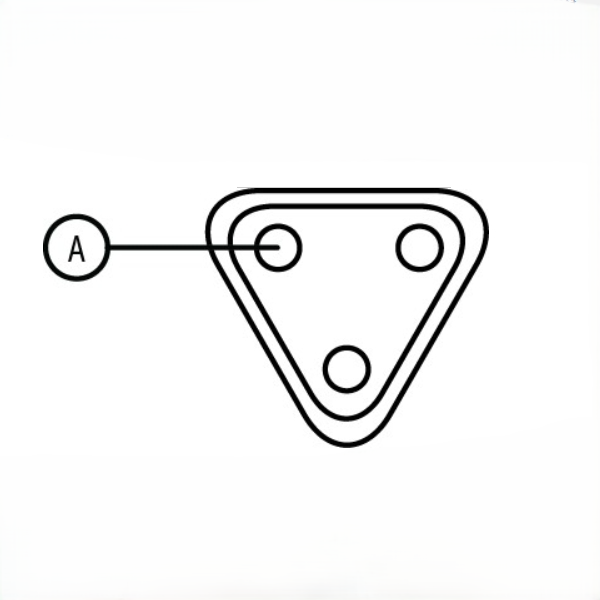

Shape: Triangular
Color: Grey
IP Rating: IP67 (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Elastomer
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
End Cap/Rear Seal Dimensions: .053" - .120"
Mating Cycle Durability: >100
RoHS Compliant: Yes
Wedge Part#: AW3S
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Data Overview
| No. of Positions | 3 |
| Contact Size | 16 |
| Amperage | 13A |
| Contacts Included | No |
| Contact Type (Pin/Socket) | Socket |
Contact Features
| Gender | Female |
| Housing Material | Thermoplastic |
| Shape | Triangular |
| IP Rating | IP67 (in mated condition) |
| Operating Temperature | -55°C to +125°C |
