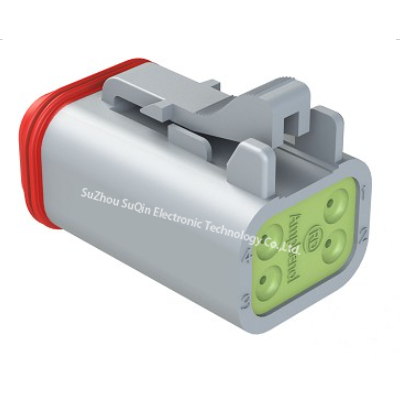

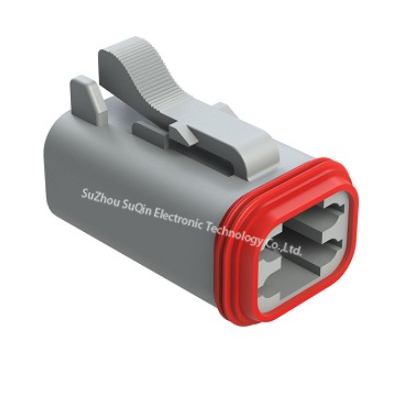

Amphenol AT06-4S-RD01 4-Way Plug | Female Connector | Reduced Diameter E-Seal | IP67 Rated | DT06-4S-C015 Compatible
Short Description:
- Product Model: AT06-4S-RD01
- Type: 4-Way Plug
- Gender: Female
- Seal Type: Reduced Diameter E-Seal (Environmental Seal)
- Compatibility: Comparable to DT06-4S-C015
Product Detail
Product Tags
Amphenol AT06-4S-RD01 4-Way Female Plug features a reduced diameter E-Seal for compact and reliable connections. Compatible with DT06-4S-C015, this plug ensures easy installation in tight spaces, ideal for industrial and automotive applications. Designed for durability and performance.
Data Overview
| Specification Category | Detail |
|---|---|
| Product Model | AT06-4S-RD01 |
| Series | Amphenol AT Series |
| Connector Type | Plug |
| Gender | Female (Socket) |
| Number of Positions | 4-Way |
| Seal Type | Reduced Diameter E-Seal (Environmental Seal) |
| Key Compatibility | Comparable to DT06-4S-C015 |
| Contact Material | Copper Alloy, Tin Plated |
| Housing Material | Thermoplastic, UL94 V-0 Rated |
| Voltage Rating | 250 V AC/DC |
| Current Rating | 13 A |
| Insulation Resistance | >100 MΩ (at 500V DC) |
| Operating Temperature | -55°C to +125°C |
| Ingress Protection (IP) | IP67 (when properly mated) |
| Agency Approvals | UL Recognized, CSA Certified |
| Primary Applications | Automotive Wiring, Industrial Machinery, Marine Equipment, Transportation Systems |
Contact Features
Feature: This AT06-4S-RD01 is a 4-position female plug engineered with a specialized reduced-diameter Environmental Seal (E-Seal). It is molded from high-temperature, flame-retardant thermoplastic (UL94 V-0) and is designed to accommodate #16 AWG contacts.
Advantage: The innovative E-Seal not only ensures a complete IP67-rated seal against dust and water immersion but also allows for a more compact connector footprint, saving valuable space in crowded wiring harnesses. The superior housing material provides excellent resistance to impact, chemicals, and UV radiation, maintaining integrity in demanding conditions.
Benefit: You achieve maximum system uptime and longevity by preventing moisture and contaminant-related failures. The space-saving design offers greater installation flexibility in tight panels, while the direct compatibility with DT06-4S-C015 series parts simplifies sourcing and ensures a reliable, drop-in solution for automotive, industrial, and mobile equipment applications.
