Amphenol ATP04-2P-PM08G 2 Pin Receptacle
Short Description:
ATP04-2P-PM08G 2 Pin Receptacle
Screw Panel Mount
with Gasket
Grey
Product Detail
Product Tags
ATP04-2P-PM08G is a 2-pin rectangular receptacle connector designed for robust industrial applications, featuring flange-mount compatibility and high-performance specifications like IP67 sealing and high-current handling.
Key Specifications
Pin Configuration: 2-position layout for efficient circuit integration.
Current rating: 25A per position.
Voltage rating: 250V.
Wire gauge compatibility: Size 12 (10–14 AWG).
Environmental Protection: IP67-rated for dust and water resistance, ensuring durability in demanding conditions.
Temperature Range: Operational from -55°C to +125°C, ideal for extreme temperature
Data Overview
| No. of Positions | 2 |
| Current Rating | 25A |
| Housing Material | Thermoplastic |
| Mating Cycle Durability | >100 |
| Contact Size | 12 |
Contact Features
| Mating Part(s) | ATP06-2S* PLUG |
| AWG | 10-14 |
| Amperage | 25A |
| Contact Type (Pin/Socket) | Pin |
| Operating Temperature | -55°C to +125°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

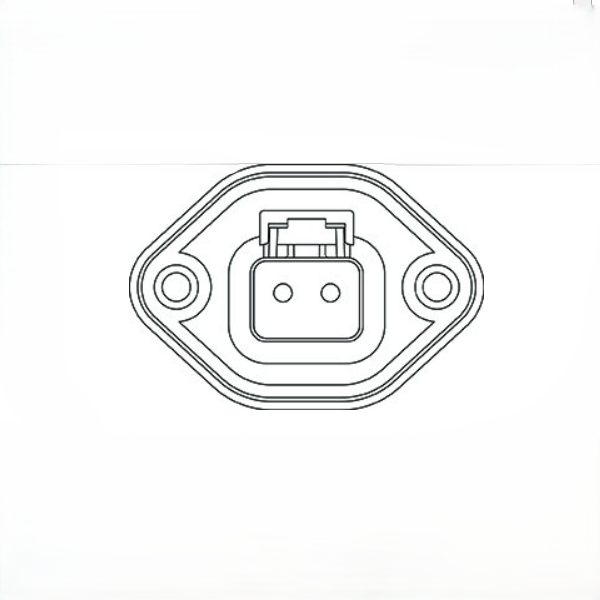

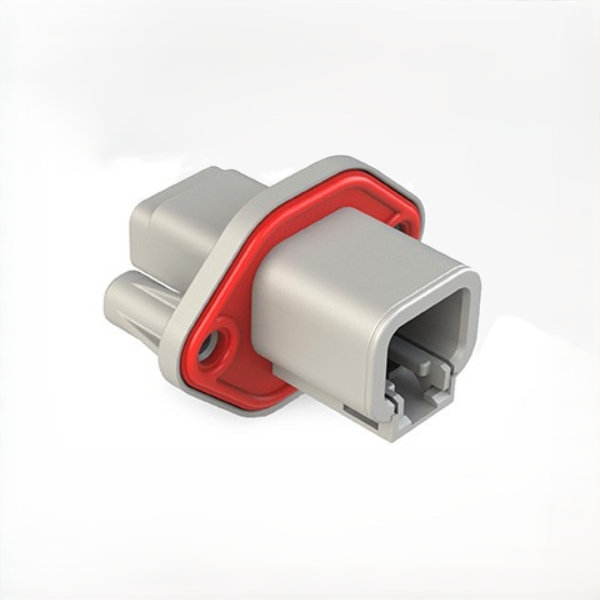

Product Display
