HVSL362062A116I by High Voltage Safety Lock Connectors
Short Description:
Description：HVSL362 Cable Plug, 2 pole, 16,0mm², with HVIL, A-coded
Number of positions (w/o PE)：2
Rated voltage：1000 (V)
Rated current(40 °C)：95 (A)
IP-class mated：IP67
Availability: 500 in Stock
Min. Order Qty: 20
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Amphenol HVSL362062A116I High Voltage Interlock (HVIL) Connector
Series:HVSL362 Safety Lock Series
Configuration:2-Position HVIL Connector
Current Rating :95A continuous @ 70°C
Voltage Rating :600V DC
Sealing Level:IP67/IP6K9K (Dust/Water/UV Resistance)
Locking Mechanism:Dual-stage CPA (Tool-less Release)
Temperature Range:-40°C to +125°C
Contact Material:Silver Plated Copper Alloy
HVIL Function:Real-time circuit monitoring
Data Overview
| gender | female |
| IP-class mated | IP67 |
| number of positions (w/o PE) | 2 |
| part category | female cable connector |
| termination | crimp |
Contact Features
| Kontakt Materia | Kofferlegierung |
| Aktuell Bewaertung | 95 A |
| Entzundlechkeets Bewaertung | UL 94 V-0 |
| Gehausematerial | Polyamid (PA) |
| Betribstemperatur | -40℃~125℃ |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

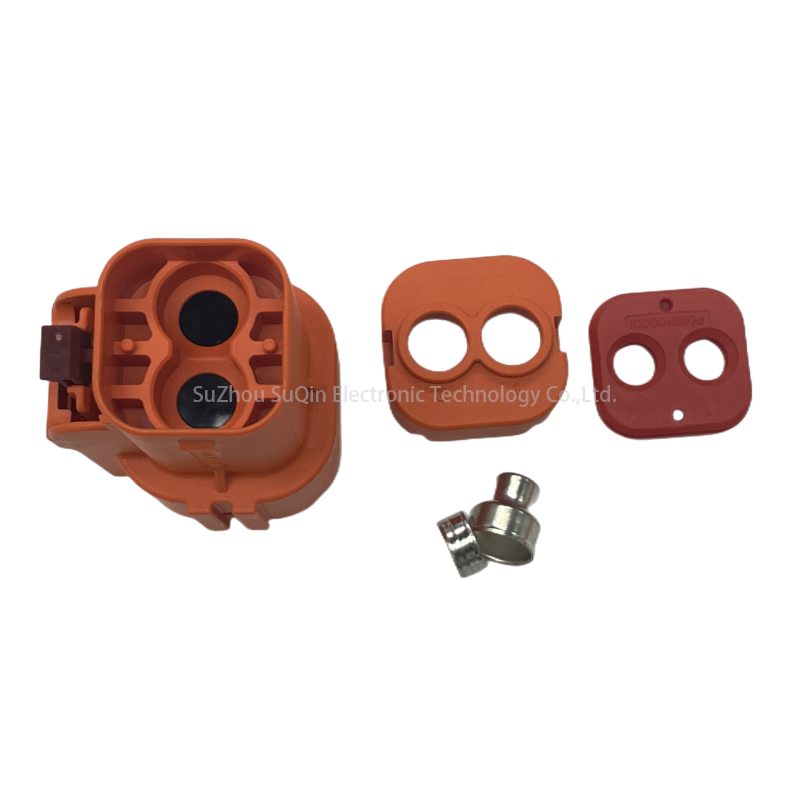

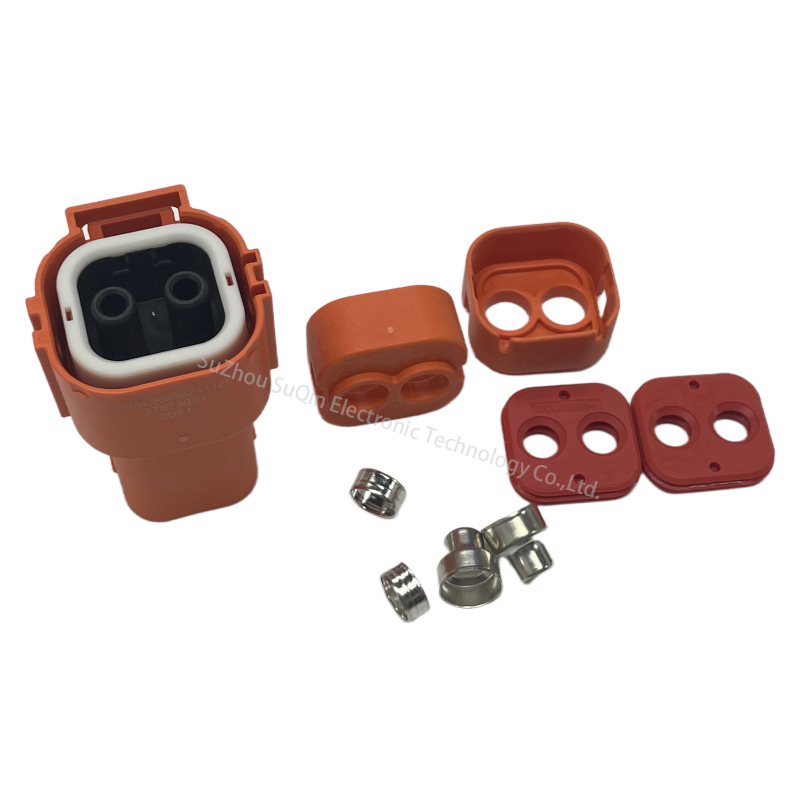

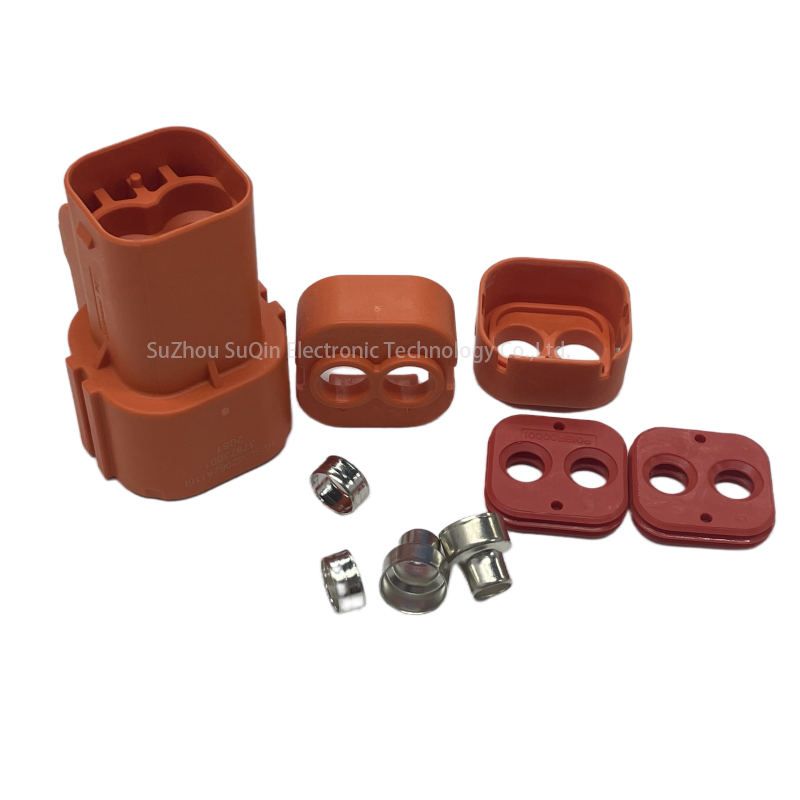

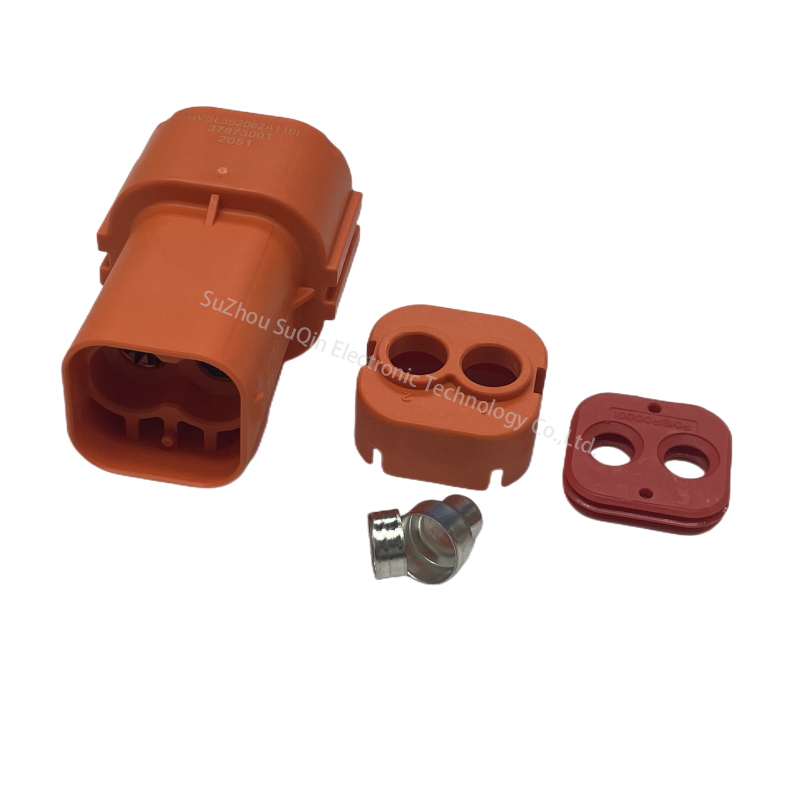

Product Display
